Example: Define Criteria for Automated Deployment#

To enable automated deployment, you will:

Associate deployment criteria with clusters. This includes:
- Location information the cluster receives from its hosts.
- Any deployment metadata associated with the cluster’s site or region.
- Deployment metadata associated with the cluster directly.
Associate deployment criteria with deployments. These criteria are associated directly with the deployment you set up.

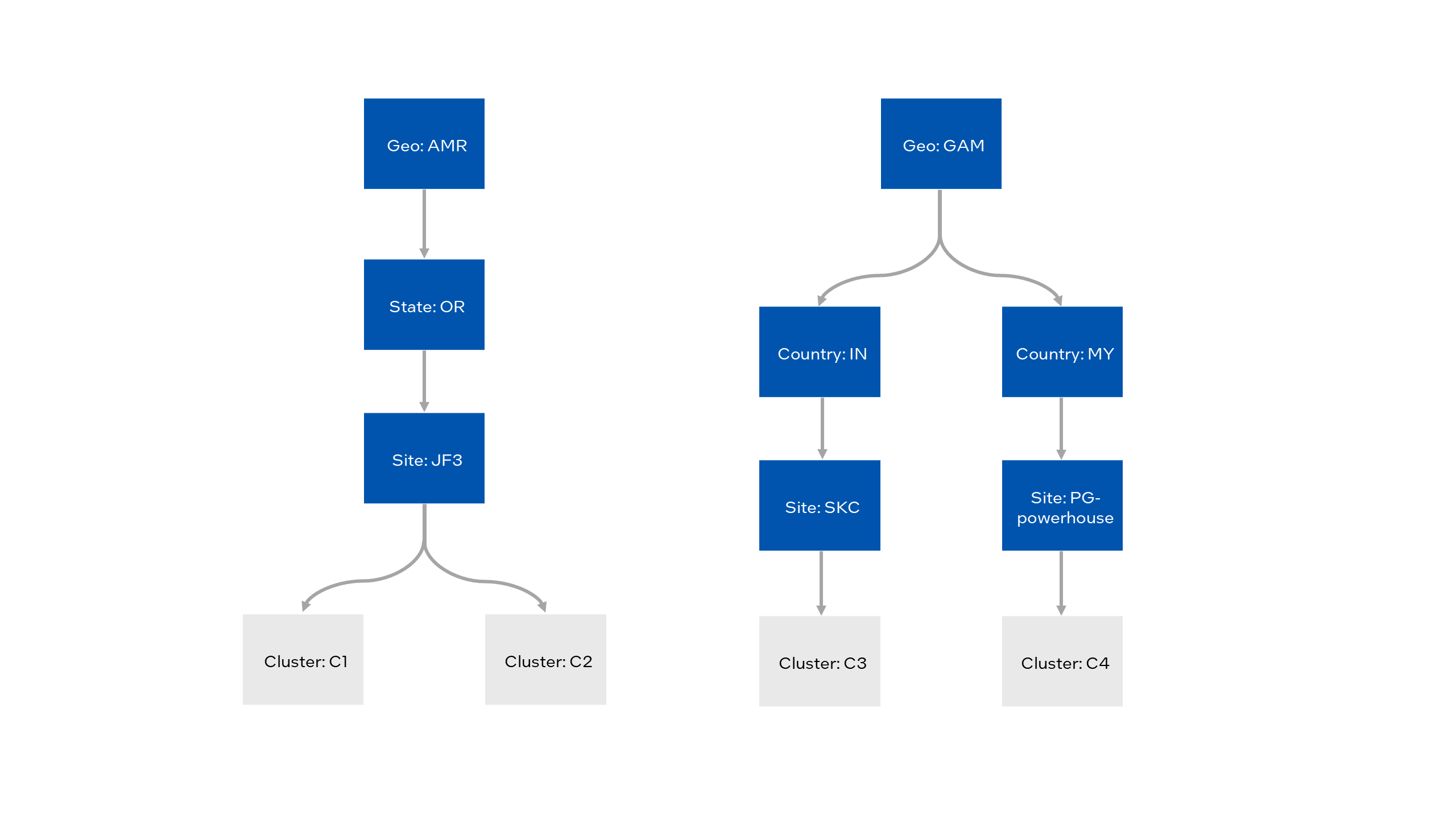

The following is an example use case with four clusters located at three sites across two top-level regions:

This use case has the following requirements for deployments:

Remote clusters get a modified version of the application. On-premises clusters get the base version.
Upgrades must be deployed to test nodes and validated before deploying to production nodes.
Clusters that support 5G networking receive an enhanced package of applications.

This means that you need to know whether a cluster:

Is located on-premises or remotely.
Belongs to the test or production environment.
Supports 5G networking.

The following explains how deployment criteria help you meet those requirements.

Deployment Criteria for Infrastructure#

Location Information and Site-level Deployment Metadata

Start with the location requirement, whether a cluster is remote or on-premises. This is a property of the cluster’s site, so associate a deployment metadata tag with the site. Every host assigned to that site will be tagged with the site’s deployment metadata.

When you provision a host, you assign it to a site. Each site is in a single region, which may belong to one or more parent regions. When you assign a host to a site, the host is associated with the entire region hierarchy.

Additionally, you can associate deployment metadata tags with a site. All hosts that are assigned to the site will receive the deployment metadata.

All hosts in a cluster must come from the same site. When you Create Cluster, it receives site, region, and site deployment metadata from its hosts.

In this case, assume that when you set up the sites and regions, you tagged the JF3 and SKC sites with the deployment metadata loc-type:on-prem, and the PG-powerhouse site with loc-type:remote.

Based on what you know so far, fill out a table tracking each cluster’s deployment configuration:

Cluster	Site	Region	loc-type
C1	JF3	geo:amr state:or	on-prem
C2	JF3	geo:amr state:or	on-prem
C3	SKC	geo:gam country:in	on-prem
C4	PG	geo:gam country:my	on-prem

Cluster-level Deployment Metadata

Add the remaining requirements by assigning deployment metadata directly to the clusters. You need to:

Differentiate test and production clusters.
Flag clusters that support 5G.

To do this, assume that you have created two additional deployment metadata tags, env and net-type:

env can take the values prod and test.
net-type has been defined with a single value, 5g.

Clusters C1 and C3 are part of the test environment and do not support 5G networking. C2 and C4 are in production and have 5G support.

Once you define your cluster-level deployment metadata, the deployment criteria summary will look like this:

Cluster	Site	Region	loc-type	env	net-type
C1	JF3	geo:amr state:or	on-prem	test
C2	JF3	geo:amr state:or	on-prem	prod	5g
C3	SKC	geo:gam country:in	on-prem	test
C4	PG	geo:gam country:my	on-prem	prod	5g

Here, you have chosen an open-ended metadata category instead of defining 5G tag differently, calling it 5g-support` and allowing the values Y and N. This means it would be easy to indicate 6G nodes in this example use case at some point. Edge Orchestrator allows you to define a deployment metadata schema that best meets your requirements.

Note that you could have chosen to apply the loc-type tag to each cluster individually. However, by associating it at the site level, you automatically apply it to all hosts at that site. This is more efficient and reduces errors, as all hosts at a site have the same location type.

Deployment Criteria for Deployments#

The applications are bundled into deployment packages to deploy software to the clusters. You can create a deployment package profile to define an application’s runtime behavior based on where its package is deployed.

In this use case, you will deploy different application versions to on-premises versus remote clusters. Remote clusters use a lower-fidelity AI model optimized for the field hardware.

Once you have created deployment packages and profiles, create a deployment by associating deployment criteria with each package and choosing ‘metadata-based’ as the deployment type.

Automated Deployment#

Edge Orchestrator automatically pushes the deployment to clusters that match the criteria. As new clusters with matching criteria are brought up, software is pushed to them. Updates to deployment packages are automatically pushed as well.

Here are some examples of deployment criteria from the use case and their outcomes:

Deployment Target	Deployment Criteria	Clusters Targeted
Deployment Target	Deployment Criteria	C1	C2	C3	C4
All remote production clusters	loc-type:remote env:prod	N	N	N	Y
On-premises test clusters in the GAM geo	geo:gam loc-type:on-prem env:test	N	N	Y	N
Nodes in the JF3 5G Network	site:jf3 net-type:5g	N	Y	N	N
