Imitation Learning - ACT#

Imitation learning is a machine learning approach where a model is trained to mimic expert behavior by observing and replicating demonstrations, enabling it to perform tasks similarly to the expert. ACT is an action chunking policy with Transformers, an architecture designed for sequence modeling. It is trained as a conditional VAE (CVAE) to capture the variability in human data. It significantly outperforms previous imitation learning algorithms on a range of simulated and real-world fine manipulation tasks.

We have built an imitation learning pipeline for ACT, which can be used to train and evaluate the ACT model on different tasks both in simulation and real robot environment. In this sample pipeline, we provided source code optimized by Intel® Extension for PyTorch and OpenVINO™ to accelerate the process.

In this tutorial, we will introduce how to setup ACT pipeline.

Source Code#

The source code of this component can be found here: ACT-Sample

Prerequisites#

Please make sure you have finished setup steps in Installation & Setup and followed refer to oneAPI doc to setup oneAPI™ packages.

Installation#

ALOHA real robot environment setup (Optional)#

Follow the stationary ALOHA guide to build real robot platform.

Virtual environment setup#

  1. Create a Python 3.10 virtual environment with the following command:

    $ sudo apt install python3-venv
$ python3 -m venv act

  2. Activate the virtual environment with the following command:

    $ source act/bin/activate

Install Intel® Extension for PyTorch#

Important

Intel® Extension for PyTorch workloads are incompatible with the NPU driver. For more details, please refer to the troubleshooting page.

Install the Intel® Extension for PyTorch with the following command:

$ pip install torch==2.3.1+cxx11.abi torchvision==0.18.1+cxx11.abi torchaudio==2.3.1+cxx11.abi intel-extension-for-pytorch==2.3.110+xpu oneccl_bind_pt==2.3.100+xpu ipex-llm==2.2.0b20241224 --extra-index-url https://pytorch-extension.intel.com/release-whl/stable/xpu/us/

Install OpenVINO™#

Install the OpenVINO™ with the following command:

$ pip install openvino==2024.6.0

Dependencies setup#

Install the dependencies with the following command:

$ pip install pyquaternion==0.9.9 pyyaml==6.0 rospkg==1.5.0 pexpect==4.8.0 mujoco==3.2.6 dm_control==1.0.26 matplotlib==3.10.0 einops==0.6.0 packaging==23.0 h5py==3.12.1 ipython==8.12.0 opencv-python==4.10.0.84 transformers==4.37.0 accelerate==0.23.0 bigdl-core-xe-21==2.6.0b2 bigdl-core-xe-addons-21==2.6.0b2 bigdl-core-xe-batch-21==2.6.0b2 huggingface-hub==0.24.7

Install ACT package#

The Embodied Intelligence SDK provides optimized source code for Intel® Extension for PyTorch and OpenVINO™. To get the source code with the following command:

For Intel® Extension for PyTorch:

$ sudo apt install act-ipex
$ sudo chown -R $USER /opt/act-ipex/

For OpenVINO™:

$ sudo apt install act-ov
$ sudo chown -R $USER /opt/act-ov/

Install DETR#

Install the DETR (in /opt/act-ipex/ for IPEX or /opt/act-ov/ for OpenVINO) with the following command:

$ cd <path_to_act>/detr/
$ pip install -e .

Run pipeline#

Inference#

  1. You can download our pre-trained weights from this link: Download Link. The command of training is the same as above, but you need to set the argument --ckpt_dir to the path of the pre-trained weights.

  2. Convert the model checkpoint to OpenVINO IR (Optional)

ov_convert.py is a script provided to convert the PyTorch model to OpenVINO IR. You can find the script in the act-ov directory, and see the usage with the following command:
$ cd /opt/act-ov/
$ python3 ov_convert.py -h

For example, you can convert the model with the following command:

$ python3 ov_convert.py --ckpt_path <your_ckpt_path> --height 480 --weight 640 --camera_num 4 --chunk_size 100

Attention

Please make sure the arguments --chunk_size, --kl_weight, --hidden_dim, --dim_feedforward, --camera_num are the same as the training arguments.

  1. The pipeline supports configurations with up to four cameras. You can modify the constants.py file in the source directory to define the number of cameras. Below are examples of configurations for four cameras and one camera:

    # In /opt/act-ov/constants.py
SIM_TASK_CONFIGS = {
    'sim_insertion_scripted': {
        'dataset_dir': DATA_DIR + '/sim_insertion_scripted',
        'num_episodes': 50,
        'episode_len': 400,
        'camera_names': ['top', 'angle', 'left_wrist', 'right_wrist']
    },
}

# In /opt/act-ipex/constants.py
SIM_TASK_CONFIGS = {
    'sim_insertion_scripted': {
        'dataset_dir': DATA_DIR + '/sim_insertion_scripted',
        'num_episodes': 50,
        'episode_len': 400,
        'camera_names': ['top']
    },
}

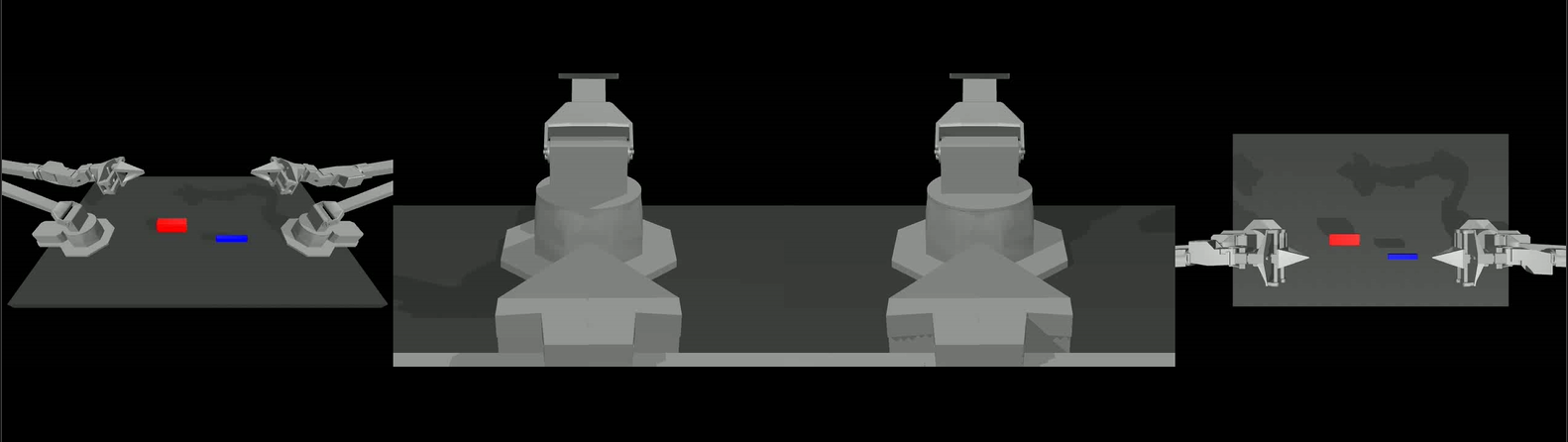

Below is a camera viewer showcasing four different camera perspectives, the left one is the angle camera, and the right one is the top camera. The middle two are the left and right wrist cameras, respectively.

../../_images/act-sim-cameras.png

  1. Evaluate the policy with the following command:

    $ python3 imitate_episodes.py --task_name sim_insertion_scripted --ckpt_dir <ckpt dir> --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0 --device GPU --eval

    Note

    --eval is used to evaluate the policy. --device is used to set the device to CPU or GPU. --temporal_agg can be used to enable the temporal aggregation algorithm. --onscreen_render can be used to enable onscreen rendering. MUJOCO_GL=egl environment variable can be set to enable EGL rendering, which provides better performance in simulation scenarios.

If the script throws an unrecognized arguments --device error, then the updated ACT package has not been installed correctly. Ensure to run pip install -e . in the correct directory.

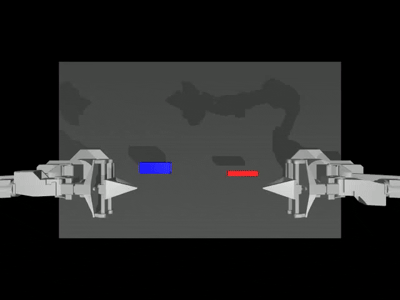

When the --onscreen_render parameter is enabled, the successful inference result appears as follows:

../../_images/act-sim-insertion-demo.gif

Training (Optional)#

Attention

Please refer to the ALOHA paper for instructions on setting up a machine with the training environment.

  1. Generate 50 episodes with the following command:

    # Bimanual Insertion task
$ python3 record_sim_episodes.py --task_name sim_insertion_scripted --dataset_dir <data save dir> --num_episodes 50

  2. Visualize the episode with the following command:

    $ python3 visualize_episodes.py --dataset_dir <data save dir> --episode_idx 0

  3. Train ACT with the following command:

    # Bimanual Insertion task
$ python3 imitate_episodes.py --task_name sim_insertion_scripted --ckpt_dir <ckpt dir> --policy_class ACT --kl_weight 10 --chunk_size 100 --hidden_dim 512 --batch_size 8 --dim_feedforward 3200 --num_epochs 2000  --lr 1e-5 --seed 0
