Preliminary system configuration#

Camera pose and robot calibration#

Before first RVC Execution, we have to ensure a few parameters that has to match the physical setup:

RVC must known the exact pose (i.e.: position and orientation) of the Intel® RealSense™ camera as explained in Camera pose calibration
Prepare the robot for communication with the Intel® platform as in Universal Robot configuration
The robot calibration parameters from the real robot must be extracted, as explained further in Universal Robot Calibration Procedure

Camera pose calibration#

Before starting the Vision component, verify that the camera location matches the position and orientation specified in the file

rvc_dynamic_motion_controller_use_case/cameraurdf/d415<namespace>.xacro

Note

Location might change according to installation procedure and the suffix ipc depends on the namespace:= option, by default ipc in this case

The default content of this file is:

<?xml version="1.0"?>

<robot name="d415_camera" xmlns:xacro="http://ros.org/wiki/xacro">
<xacro:arg name="use_nominal_extrinsics" default="false"/>
<xacro:arg name="name" default="camera<namespace>"/>
<xacro:arg name="use_mesh" default="true"/>
<xacro:arg name="use_plug" default="true"/>
<xacro:include filename="$(find realsense2_description)/urdf/_d415.urdf.xacro" />
<link name="world" />
<xacro:sensor_d415 parent="world" name="$(arg name)" use_mesh="$(arg use_mesh)" add_plug="$(arg use_plug)" use_nominal_extrinsics="$(arg use_nominal_extrinsics)" >
        <origin xyz="0.36 0.66 0.755" rpy="-3.141592654 1.570796327 -1.570796327"/>
</xacro:sensor_d415>
</robot>

The important part is

<origin xyz="0.36 0.66 0.755" rpy="-3.141592654 1.570796327 -1.570796327"/>

where the xyz triplet is expressed in meters, and the rpy is in radians and they express respectively the cartesian coordinates of the base of the camera in reference to the world frame_id, which should coincide with the center of the base of the robot, if not modified.

These numbers are important because if not accurate, the robot will not go to the proper location when picking the objects, as the detection is in reference system of the camera, and the system has to transform it to robot reference system, and these numbers give the relation between the two systems

Universal Robot configuration#

The real robot or the simulator has to be configured to accept connection from RVC and configure the RVC system for real time capabilities

Set up Universal Robots ™ UR5e#

This section discusses, in brief, the steps to set up Universal Robots™ UR5e.

Note

For more details, refer to the Universal Robots repositories README to configure the robot.

Set up Private Local Network#

One of the key considerations coming from Universal Robots™ is that the network connection from the controlling AI running RVC and the robot should be on a direct Ethernet connection. In this demonstration, a private local network with a dedicated switch was setup with no other traffic on this network, which worked well.

Install external_control.urcap#

Configure the URCaps for the robot and the Robotiq 2F-85 URCap. For details, refer to Connect to External Control via URCap.

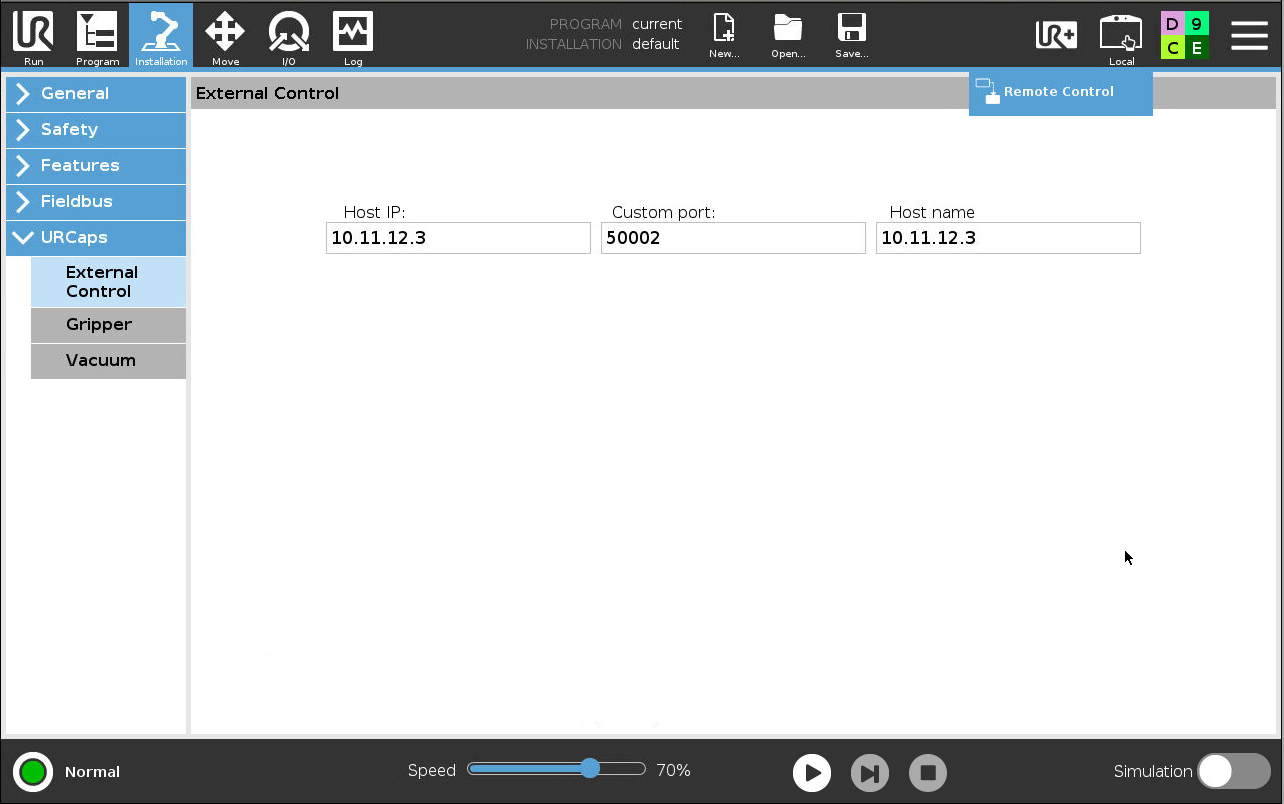

After installing external_control.urcap, the screen, shown in the following figure, will be displayed.

Note

Replace the IP in, the figure, with your Intel target private network connected to the robot.

Note

Before starting the demonstration, make sure that the Speed slider, shown in the figure, is set around 70%. Even if the speed is set to above 70%, the robot will follow, however higher speed might damage the bolts that connect the base of the robot to the table. Do the same for the Rviz2 speed slider also.

Install Gripper URCaps#

The URCaps are available on the Robotiq website.

To download the latest Gripper URCaps, click Download files. From the left panel, click Universal Robots. Then, click Software > Gripper Software. Click DOWNLOAD ZIP.

Install these URCaps on the UR5e robot teach pendant using an USB key.

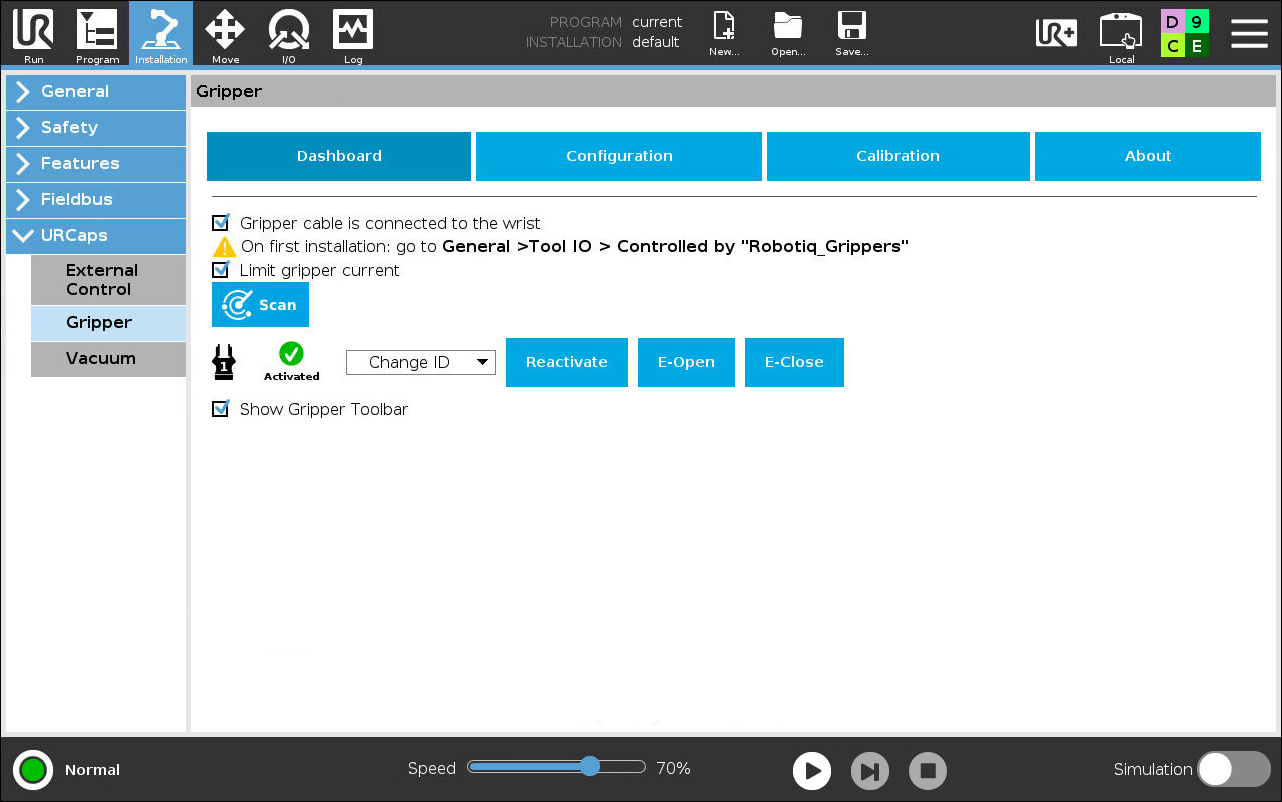

Restart the robot. Select Program Robot on the Welcome screen. Go to the Installation tab. Select Gripper listed under URCaps.

Overwrite Model-specific Kinematics Parameters (Calibration)#

There might be slight differences (variance) in the physical attributes of various robots. To address this issue, the robot is calibrated at the factory and the variance in these parameters are saved on the robot controller file system. Extract the kinematics parameters specific to your robot and overwrite the distributed parameters file to avoid the robot being sent elsewhere for accumulating errors on inverse kinematics computation due to this parameter variance.

For information on the Universal Robots™ calibration, refer to README.md

Note

If the calibration parameters do not match with that of the real robot, the motion controller logs will show the following message:

[ros2_control_node-1] [INFO] [1665059043.476735447] [URPositionHardwareInterface]: Calibration checksum: 'calib_12788084448423163542'.
[ros2_control_node-1] [ERROR] [1665059044.504667587] [URPositionHardwareInterface]: The calibration parameters of the connected robot don't match the ones from the given kinematics config file. Please be aware that this can lead to critical inaccuracies of tcp positions. Use the ur_calibration tool to extract the correct calibration from the robot and pass that into the description. See [https://github.com/UniversalRobots/Universal_Robots_ROS_Driver#extract-calibration-information] for details.

Calibration Example#

Execute:

ros2 launch ur_calibration  calibration_correction.launch.py robot_ip:=<robot_ip> target_filename:=./thisur5e_kinematics.yaml

Make sure to overwrite the result file at:

<urdriverinstallpath>/Universal_Robots_ROS2_Description/config/ur5e/thisur5e_kinematics.yaml.

For example, in this demonstration, the result file is in:

<urdescriptioninstallpath>/ur_description/config/ur5e/default_kinematics.yaml

If everything is correct, you will see an information message instead of the error message.

[ros2_control_node-1] [INFO] [1665059758.619735683] [URPositionHardwareInterface]: Calibration checksum: 'calib_10395257169742499224'.
[ros2_control_node-1] [INFO] [1665059759.696690136] [URPositionHardwareInterface]: Calibration checked successfully.

Notice the different checksums.

Create Program#

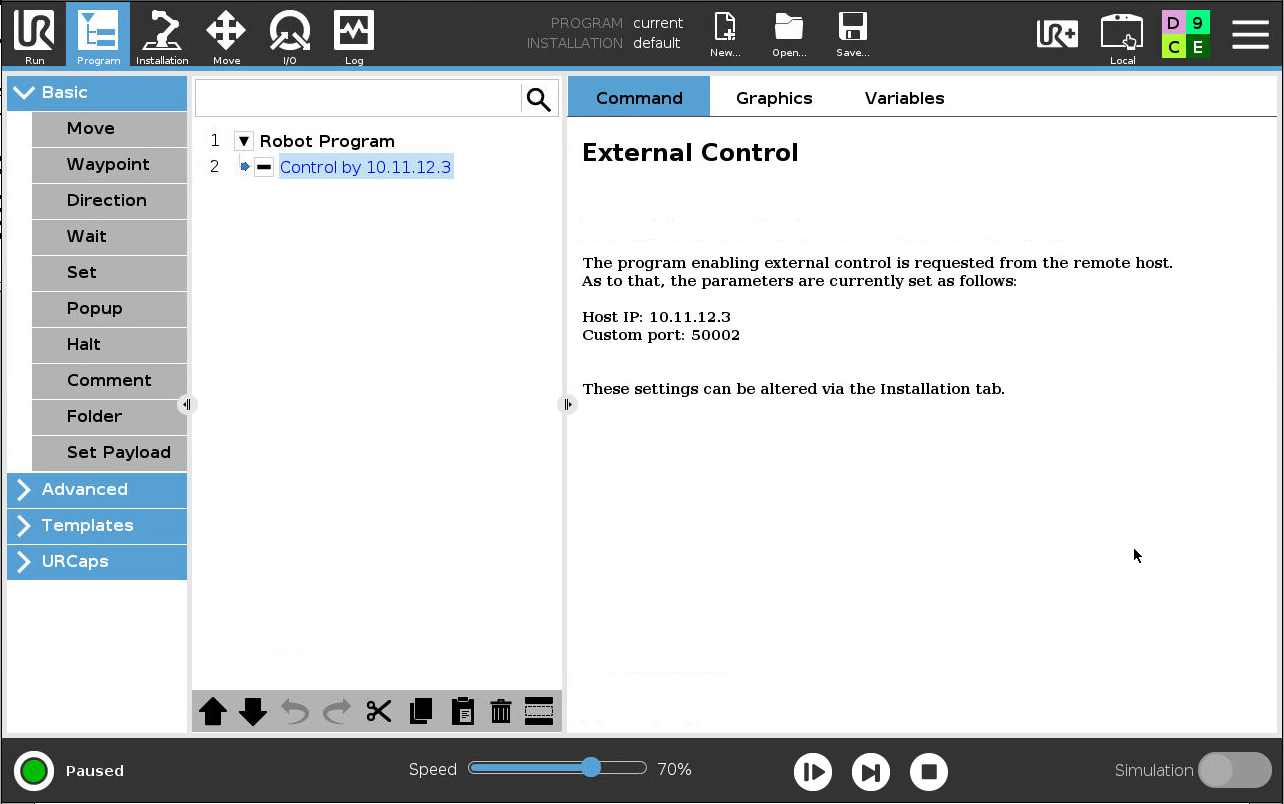

To use the new URCaps, enabling the communication with the Intel Architecture RVC controller, create a new program on the teaching pendant and insert the External Control program node in the program tree.

Note

Make sure that you have replaced Host IP with your IA RVC controller private network IP connected to the robot.
