Feature Extraction Model: SuperPoint#

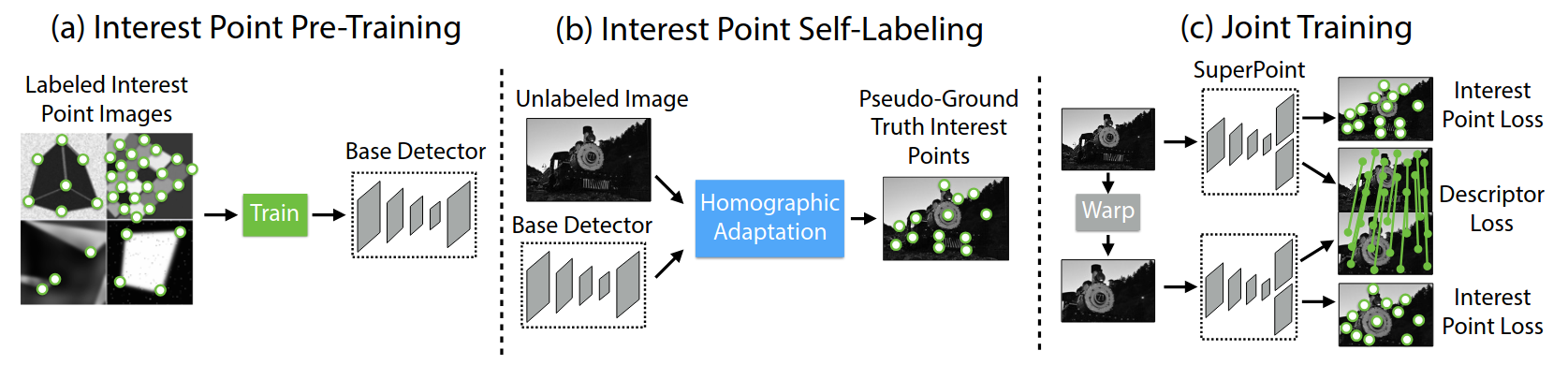

SuperPoint is a self-supervised framework for interest point detection and description in images, suitable for a large number of multiple-view geometry problems in computer vision. As opposed to patch-based neural networks, SuperPoint, as a fully-convolutional model, operates on full-sized images and jointly computes pixel-level interest point locations and associated descriptors in one forward pass. The model introduces Homographic Adaptation, a multi-scale, multi-homography approach for boosting interest point detection repeatability and performing cross-domain adaptation (e.g., synthetic-to-real). Besides, the model is able to repeatedly detect a much richer set of interest points than the initial pre-adapted deep model and any other traditional corner detector. The final system gives a state-of-the-art homography estimation results comparing the traditional feature extraction algorithms such as LIFT, SIFT and ORB.

../../../_images/superpoint.png

Model Architecture:

  • Shared Encoder:

    • The model uses a shared convolutional neural network (CNN) encoder to process the input image.

    • This encoder extracts feature maps that are used for both keypoint detection and descriptor generation.

  • Detector Head:

    • The detector head takes the feature maps from the shared encoder and predicts keypoint locations.

    • It outputs a probability heatmap where each pixel’s value represents the likelihood of being a keypoint.

  • Descriptor Head:

    • The descriptor head also takes the feature maps from the shared encoder and generates dense descriptors for each pixel.

    • These descriptors are typically 256-dimensional vectors that describe the local image patch around each pixel.

More Information:

Model Conversion#

The SuperPoint model is trained using TensorFlow but can achieve optimized inference performance on Intel devices using OpenVINO™. To enable this, the TensorFlow model can be directly converted to the OpenVINO™ IR format.

Download the Pretrained Model#

The pretrained model sp_v6.tgz can be downloaded directly from the repository: SuperPoint Pretrained Models

After downloading, extract the model using the following command:

$ tar -xvzf sp_v6.tgz

Convert TensorFlow Model to OpenVINO IR#

Ensure OpenVINO is Installed#

Note

Make sure OpenVINO is installed by following the guide: Install OpenVINO via pip

Convert the Model using OpenVINO Conversion Tool#

Since the model is in TensorFlow format, it can be converted to OpenVINO’s Intermediate Representation (IR) format using OpenVINO’s command-line model conversion tool, ovc.

Run the following command to perform the conversion:

$ cd sp_v6
$ ovc ./ --input [1,1280,720,1]

  • --input [1,1280,720,1]: Specifies the input dimensions of the model. The parameters represent:

    • 1: Batch size (process 1 image at a time).

    • 1280: Height of the input image (adjust according to your input data).

    • 720: Width of the input image (adjust according to your input data).

    • 1: Number of channels (1 for grayscale images; use 3 for color images).

By default, this command converts the model to FP16 IR format, generating the following files in the current directory:

  • sp_v6.xml: Defines the model topology (structure and layers).

  • sp_v6.bin: Contains the model weights and binary data.

If you need an FP32 precision model, add the following parameter to the ovc conversion command:

$ ovc ./ --input [1,1280,720,1] --compress_to_fp16=False

Additional Notes#

  • Converting to FP16 (default) generally results in better performance on Intel devices (especially those with AVX-512 support) while maintaining a good balance of accuracy.

  • FP32 models should be used if you need higher accuracy but are willing to trade some inference speed for it.
