State machine main node#

The Exemplary dynamic use case shows the use case of an Universal robot UR5e tracking a erratically moving object, optionally picking it up and placing at customizable location.

Motion Controller Main node Execution#

The Dynamic use case comes with a set of preconfigured options to achieve the basic show case. The only mandatory option is robot_ip which specifies where the real robot or the UR simulator can be reached.

ros2 launch rvc_dynamic_motion_controller_use_case dynamic_demo_launch.py robot_ip:=<robot_ip>

And then press play on the teaching pendant.

Motion controller exemplary plugin#

A MoveIt 2 based motion controller has been implemented showing a dynamic real-time tracking of the goal set in sendGoal. At all time, sendGoal can be kept being called with different target, and the motion controller will do its best to track the goal.

Features#

  • Collision maps

  • Avoid conveyor belts, or in general any obstacles or sensors like cameras

  • Avoid self collisions

  • Singularity Avoidance

  • Slows down to stop on singularities

  • Smoother movements: - Butterworth filtering - custom plugin filtering

  • Supports Robots controllable in position and/or in velocity

Motion Controller Configuration#

For most of these parameters, we refer to the official moveit2 servo documentation and to .. Moveit2 servo tutorial: https://moveit.picknik.ai/humble/doc/examples/realtime_servo/realtime_servo_tutorial.html

collision_boxes#

array of strings with names of the collision boxes

Every entry has to be matched with a new parameter with the same name as in the array and containing 6 floats in the format [posx, posy, posz, dimx, dimy, dimz]

This collision boxes will be used if the parameter moveit_servo.check_collisions is set to true, and the collision checks will be performed at a frequency specified in collision_check_rate

/ipc/StateMachineNode:
  ros__parameters:
    collision_boxes: ["SideConveyorBeltBox", "FrontConveyorBeltBox", "CameraBox"]
    SideConveyorBeltBox:  [0.3, 1.0, 0.09, -0.6, 0.11, 0.20]
    FrontConveyorBeltBox: [1.0, 0.3, 0.09, 0.02, 0.62, 0.04]
    CameraBox: [0.1, 0.1, 0.1, 0.36, 0.66, 0.755]

    moveit_servo:
      angular_tolerance: 0.1
      cartesian_command_in_topic: ~/delta_twist_cmds
      check_collisions: true
      collision_check_rate: 60.0
      command_in_type: speed_units
      command_out_topic: forward_position_controller/commands
      command_out_type: std_msgs/Float64MultiArray
      ee_frame_name: ee_link
      gripper_joint_name: finger_joint
      gripper_move_group_name: robotiq_group
      halt_all_joints_in_cartesian_mode: true
      halt_all_joints_in_joint_mode: true
      hard_stop_singularity_threshold: 200.0
      incoming_command_timeout: 0.1
      is_primary_planning_scene_monitor: true
      joint_command_in_topic: ~/delta_joint_cmds
      joint_limit_margin: 0.1
      joint_topic: joint_states
      leaving_singularity_threshold_multiplier: 2.0
      low_latency_mode: false
      lower_singularity_threshold: 100.0
      monitored_planning_scene_topic: planning_scene
      move_group_name: ur_manipulator
      num_outgoing_halt_msgs_to_publish: 4
      override_velocity_scaling_factor: 1.0
      planning_frame: base_link
      positional_tolerance:
        x: 0.01
        y: 0.01
        z: 0.01
      publish_joint_accelerations: false
      publish_joint_positions: true
      publish_joint_velocities: false
      publish_period: 0.002
      robot_link_command_frame: ee_link
      scale:
        joint: 0.01
        linear: 0.6
        rotational: 0.3
      scene_collision_proximity_threshold: 0.02
      self_collision_proximity_threshold: 0.01
      smoothing_filter_plugin_name: online_signal_smoothing::ButterworthFilterPlugin
      status_topic: status
      use_gazebo: false
      windup_limit: 0.05

Waypoint configuration#

The file waypoint.yaml exposes the waypoint the dynamic and static use cases uses to navigate the robot

/**:
    ros__parameters:
      #                    -x         -y          z          # -y          x         w        -z
        safe_point_pose: [-0.463098, 0.401034, 0.444935, -0.254744, 0.672562, 0.648287, -0.249979]
        drop_point_pose: [-0.340000, 0.540000, 0.248000,-0.1045351, 0.7831495, 0.6033964, -0.1079908]

How to derive this numbers:

ROS 2 is using a different coordinate system than the Univeral Robot teach pendant. To convert the two, here is the conversion:

UR External Control

  1. Assure that the drop down Feature is set to base

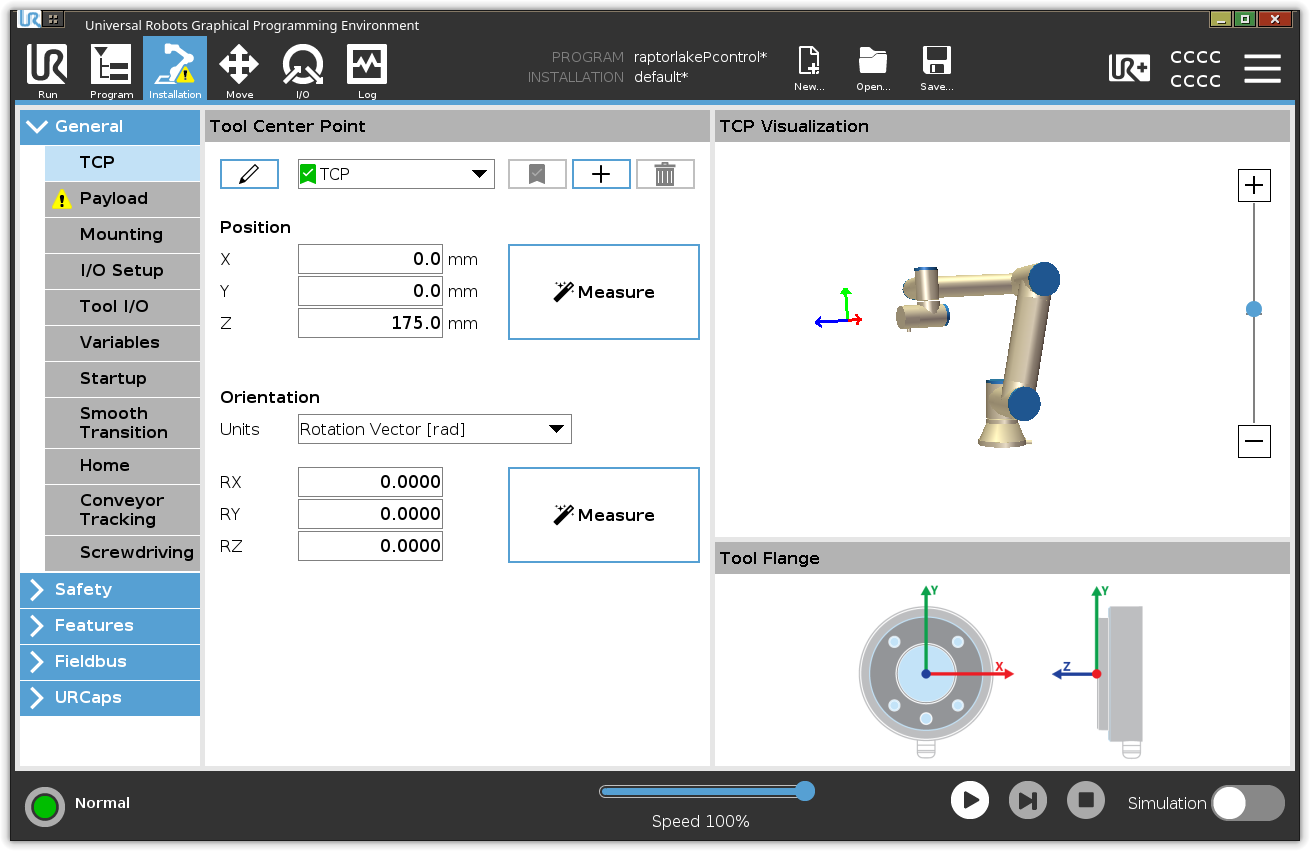

  2. Assure that the TCP offset takes in account how far the gripper picking position is (in this case our gripper closed fingertips is at 17.5 cm from End effector of UR5e)

UR External Control

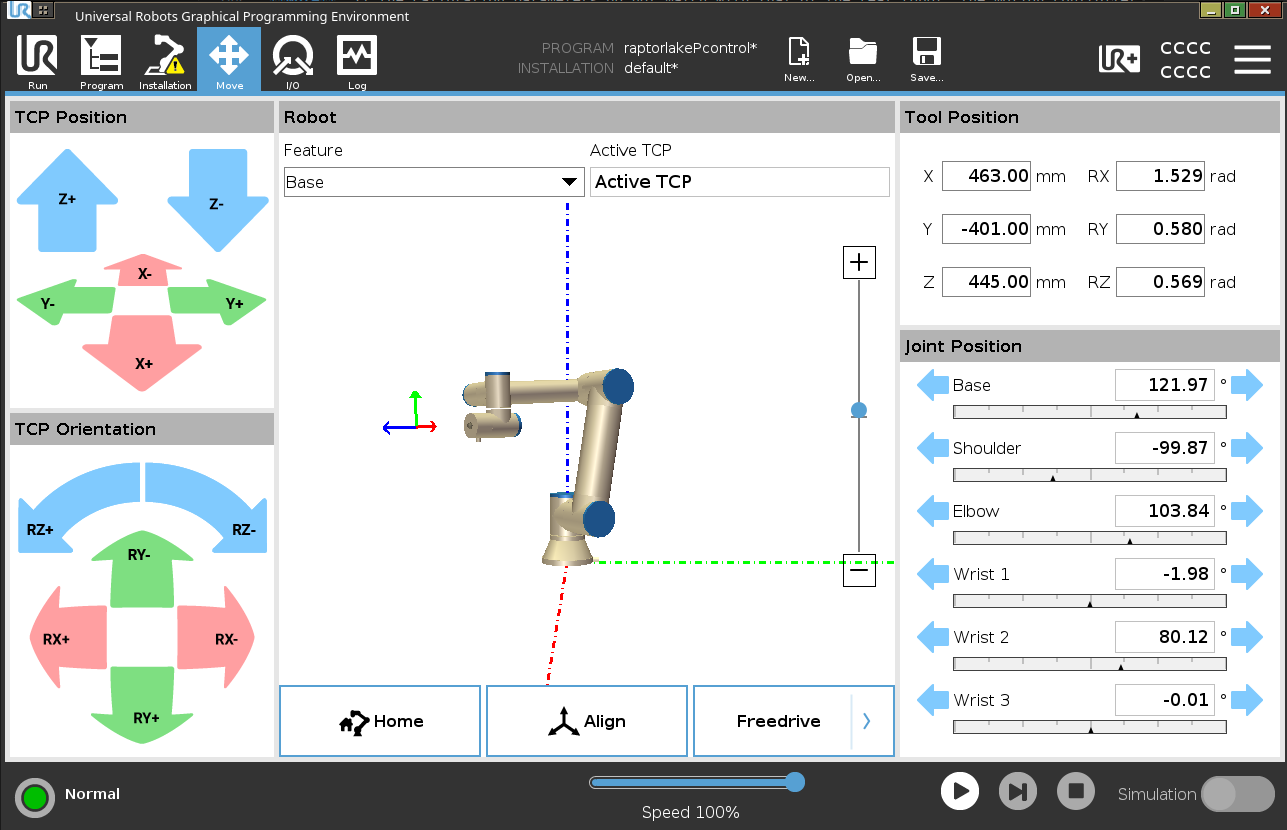

3. Convert X Y Z read in top rightmost box Tool Position by multiplying x and y by -1 . 4. Convert AxisAngle to quaternion and then swap x and -y, and -z, w. note the signs are changed for y and z.

The results are the pose in the yaml file [-x -y z, -qy, qx, qw, -qz]
