Robot Re-localization Package for ROS 2 Navigation#

The Robot Re-localization package empowers ROS 2 navigation with the capability to re-localize a robot. In situations where sensor measurements encounter glitches or environment disturbances or scene similarities lead to localization loss, the robot may lose its position. This necessitates a fast and reliable re-localization algorithm to re-establish the robot’s location accurately. To tackle this issue, we developed an innovative re-localization algorithm that excels in both computational efficiency and memory usage, specifically designed for mobile robots.

Getting Started#

Autonomous Mobile Robot provides a ROS 2 Deb package for the application, supported by the following platform:

  • ROS version: humble

Install Deb package#

Install the ros-humble-its-relocalization-bringup Deb package from the Intel® Autonomous Mobile Robot APT repository

sudo apt install ros-humble-its-relocalization-bringup

Run the Re-localization#

Run the following script to set environment variables and bring up ROS 2 navigation, and TurtleBot3 robot in Gazebo simulation:

source /opt/ros/humble/setup.bash
export TURTLEBOT3_MODEL=waffle_pi
export GAZEBO_MODEL_PATH=$GAZEBO_MODEL_PATH:/opt/ros/humble/share/turtlebot3_gazebo/models
ros2 launch nav2_bringup tb3_simulation_launch.py headless:=False

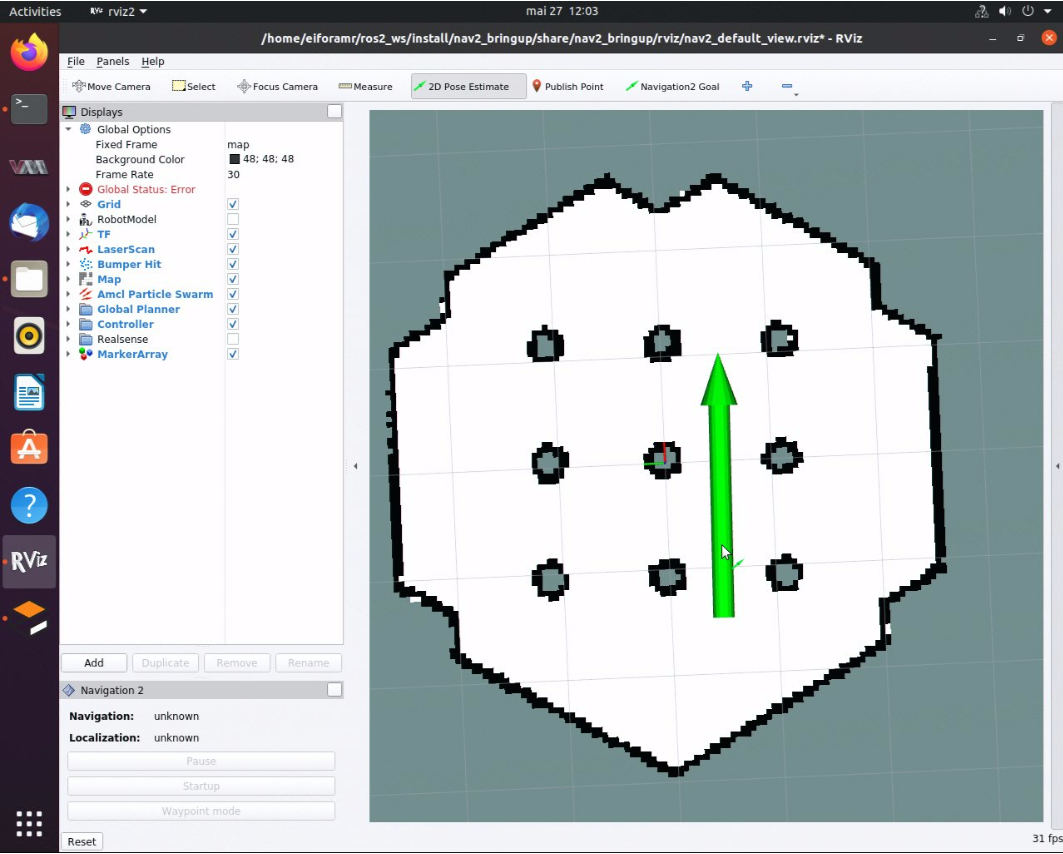

Set the robot 2D Pose Estimate in rviz2:

  1. Set the initial robot pose by pressing 2D Pose Estimate in rviz2.

  2. At the robot estimated location, down-click inside the 2D map. For

    reference, use the robot pose as it appears in Gazebo*.

  3. Set the orientation by dragging forward from the down-click. This also

    enables ROS 2 navigation.

../../../../_images/2d_pose_estimate.png

Once ROS 2 navigation is running in Gazebo and the initial robot position is set, open a new terminal to bring up the re-localization:

source /opt/ros/humble/setup.bash
ros2 launch relocalization_bringup relocalization.launch.xml

To simulate the re-localization package, we have developed a demo application that replicates a scenario in which the sensor encounters a temporary failure. In this application, the sensor is disabled for a few seconds while the robot is traveling towards its goal. Once the sensor measurements are re-enabled, the robot will automatically re-localize itself and resume its navigation toward the goal. To run this demo application execute:

ros2 launch relocalization_bringup relocalization_demo.launch.xml mode:=demo

Note

Before launching the relocalization package, ensure that the robot initial pose has been set as described above.

Troubleshooting#

For general robot issues, go to Troubleshooting for Autonomous Mobile Robot Tutorials .
