Grafana Mimir* Software Query Issue

Symptom

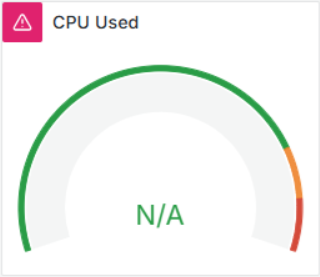

When attempting to view dashboards in Grafana UI, all panels indicate an error.

The red exclamation mark icon appearing on dashboard panel means that there is an error returned from Grafana Mimir software when querying metrics. Error messages may vary, but the most common are:

• Error upstream connect error or disconnect/reset before headers. reset reason: connection failure, transport failure reason: delayed connect error: 111

• Error Plugin

Cause

This issue is most often caused by an error in the querier service in Grafana Mimir software. The issue can occur in both stacks that use Grafana Mimir software:

• edgenode-observability exposed at observability-ui.<FQDN>

• orchestrator-observability exposed at observability-admin.<FQDN>

The underlying root cause is unknown, but the issue can be identified when:

• the connection between query-frontend and querier is broken

• the setup is unable to heal by itself (reconnect)

Sample extract from query-frontend logs that indicates broken connection:

ts=2025-03-01T03:53:52.014590133Z caller=mimir.go:868 level=info msg="Application started"
ts=2025-03-01T07:52:37.568742517Z caller=spanlogger.go:109 level=error msg="error processing request" try=0 err="rpc error: code = Canceled desc = context canceled"
...
ts=2025-03-01T07:52:57.48044312Z caller=frontend.go:358 level=info msg="not ready: number of queriers connected to query-frontend is 0"

Solution

The issue cannot be fixed automatically and requires manual intervention. The following steps can be taken to resolve the issue:

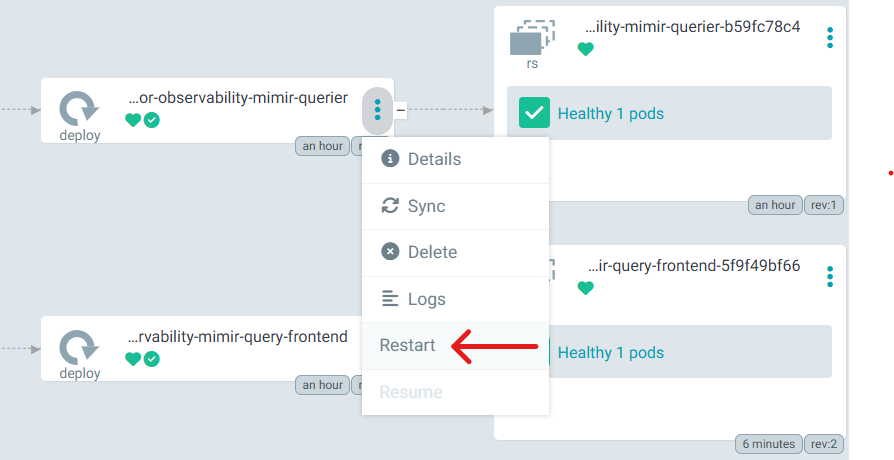

• log into ArgoCD and navigate to the edgenode-observability or orchestrator-observability application (depending on where the issue is observed)

• locate query-frontend Deployment (ReplicaSet) and restart it

• if the issue persists, restart the querier Deployment (ReplicaSet) as well
