Adaptive Token Compressor — Guide#

This guide covers single-compressor metrics collection, multi-compressor usage, compressor principles and workflow, configuration reference, available metrics, testing, FAQ, and resources. For installation and a single-compressor quick start, see the README.

Single-Compressor Metrics Collection with CompressionManager#

Metrics collection requires using CompressionManager. Register a single compressor, attach metrics, and read the aggregated snapshot:

from adaptive_token_compressor import (
    CompressionManager,
    CompressionContext,
    create_compressor,
    CompressionRatio,
    TotalSaved
)

# Metrics collection requires using CompressionManager
manager = CompressionManager()

# Register compressor first
harness_compressor = manager.register_compressor(
    "harness",
    create_compressor("harness", lingua_url="http://localhost:8001/compress"),
)

# Then register metrics with names
manager.register_metric("compression_ratio", CompressionRatio(sources="harness"))
manager.register_metric("total_saved", TotalSaved(sources="harness"))

# Compress multiple requests
for i in range(5):
    messages = [...]  # Different messages each time
    ctx = CompressionContext(messages=messages)
    result = harness_compressor.compress(ctx)

# View aggregated metrics (returns dict with all registered metric names)
stats = manager.snapshot()
print(f"Compression ratio: {stats['compression_ratio']:.2%}")
print(f"Total saved: {stats['total_saved']} tokens")

Multi-Compressor Usage with CompressionManager#

Metrics support both per-source tracking (single source string) and cross-compressor aggregation (list of sources). Cross-compressor metrics let you track combined statistics — e.g. average duration per request across the harness and tool compressors together.

from adaptive_token_compressor import (
    CompressionManager,
    CompressionContext,
    create_compressor,
    TotalSaved,
    AvgDurationPerRequest,
)

# Initialize manager
manager = CompressionManager()

# Register compressors first
harness_compressor = manager.register_compressor(
    "harness",
    create_compressor("harness", lingua_url="http://localhost:8001/compress"),
)
tool_compressor = manager.register_compressor(
    "tool",
    create_compressor(
        "tool",
        predictor_url="http://localhost:8000/v1/chat/completions",
    ),
)

# Register one per-source metric plus two aggregate metrics
manager.register_metric(
    "harness_saved",
    TotalSaved(sources="harness")
)
manager.register_metric(
    "total_saved_all",
    TotalSaved(sources=["harness", "tool"])
)
manager.register_metric(
    "avg_dur_per_request_all",
    AvgDurationPerRequest(sources=["harness", "tool"])
)

# Process multiple requests
for i in range(10):
    messages = [...]  # Different messages each time
    tools = [...]     # Full tool list

    # IMPORTANT: use the SAME req_id for all compressors in one request so
    # request_count() counts unique requests, not per-compressor calls. This
    # makes avg_dur_per_request_all = total duration / number of requests.
    req_id = f"req-{i}"

    ctx = CompressionContext(messages=messages, tools=tools)

    # Compress tools
    result = tool_compressor.compress(ctx, req_id=req_id)
    ctx = CompressionContext(messages=result.messages, tools=result.tools)

    # Compress messages
    result = harness_compressor.compress(ctx, req_id=req_id)

    # Use result.messages and result.tools for LLM inference

# View aggregated metrics (snapshot returns all registered metrics)
stats = manager.snapshot()

print(f"  Harness saved: {stats['harness_saved']} tokens")
print(f"  Total saved (all): {stats['total_saved_all']} tokens")
print(f"  Avg duration per request (all): {stats['avg_dur_per_request_all']:.1f} ms")

Note on PerRequest metrics (AvgDurationPerRequest, AvgSavedPerRequest, etc.): these divide by the number of unique requests. You must either pass req_id to compressor.compress(ctx, req_id=...) (as above), or call manager.set_per_anchor("<source>") to use one compressor’s call count as the request denominator. Without either, manager.snapshot() raises a RuntimeError (the denominator is checked at snapshot time, not at registration).

Compressor Principles#

This section explains how each compressor works conceptually and what the runtime pipeline looks like.

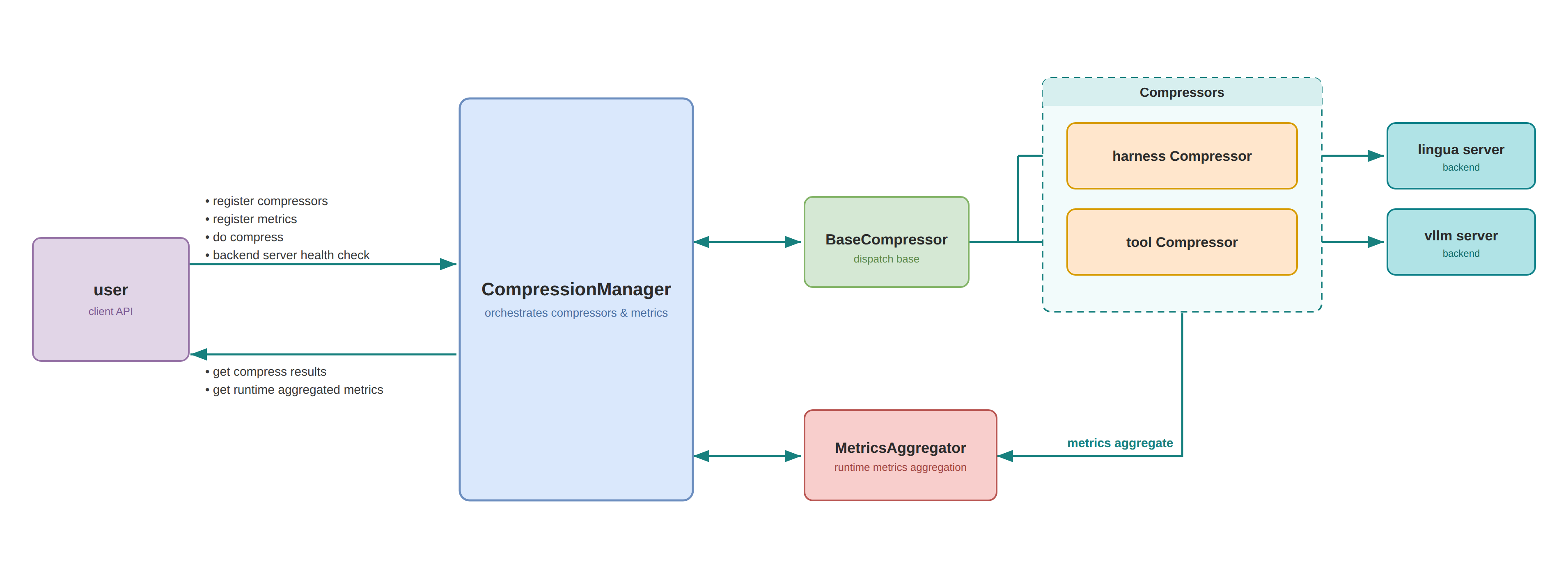

Overall Workflow

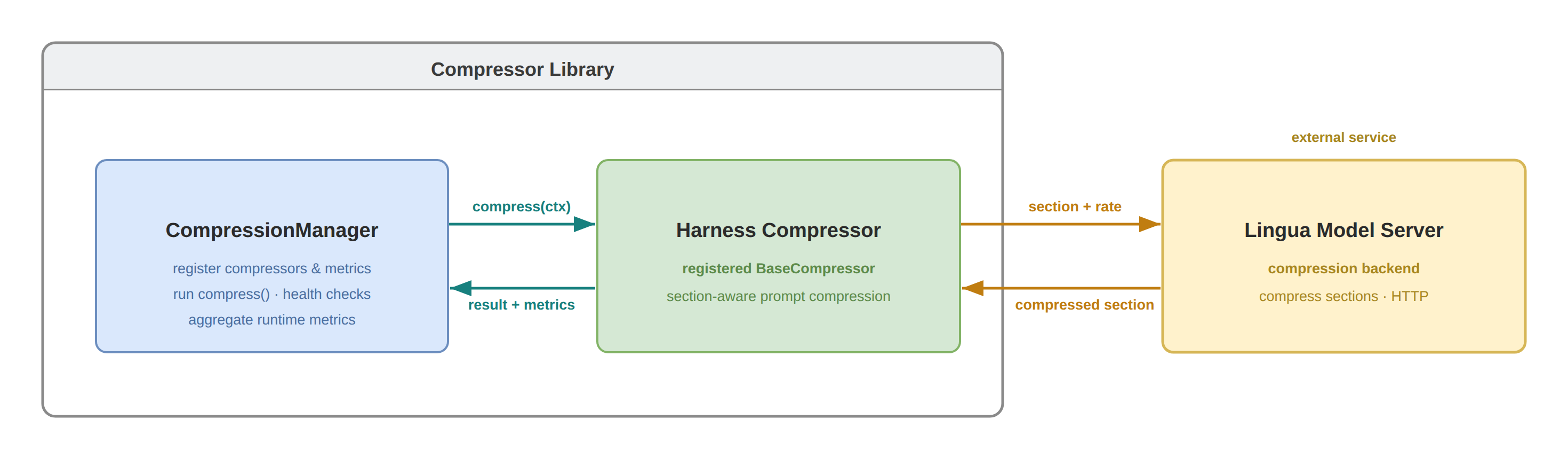

HarnessCompressor#

Principle

HarnessCompressor focuses on conversation-message compression for the prompt assembly stage. It combines lightweight rules (message slicing / role-aware handling) with Lingua-based lossy compression for long text blocks, reducing token cost while preserving instruction-critical content.

HarnessCompressor

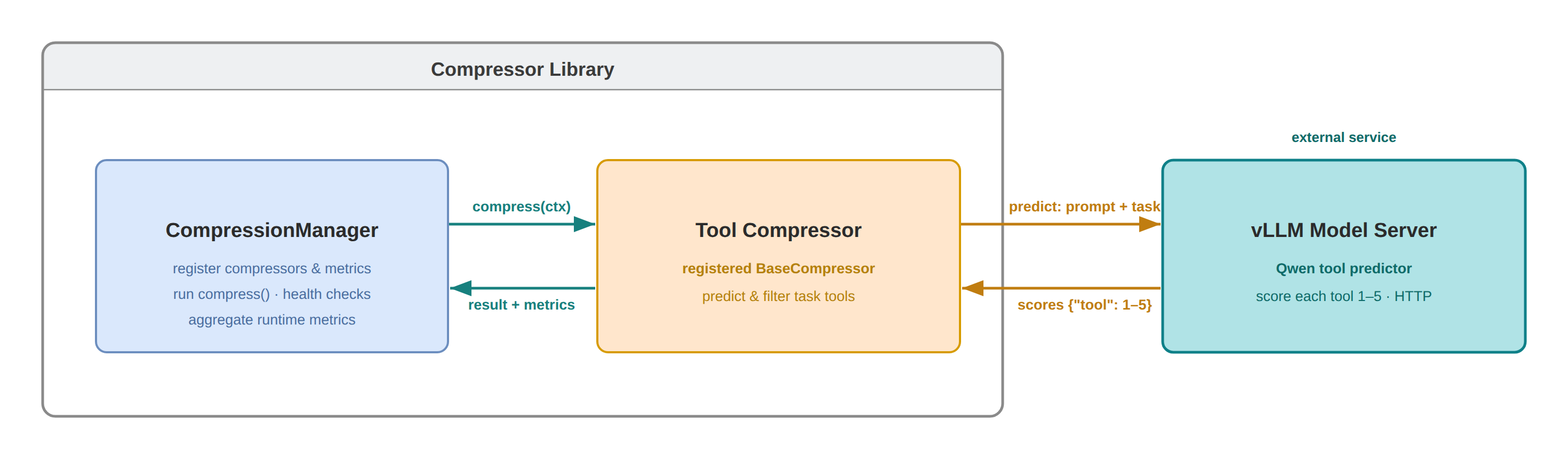

ToolCompressor#

Principle

ToolCompressor reduces tool-schema prompt cost by selecting only likely-needed tools for the current request. It uses an external predictor LLM to score tool relevance from conversation context, then keeps high-value tools only. The ToolCompressor supports configurable tool-injection placements to flexibly trade off token savings against prefix-cache hit rate.

ToolCompressor

Configuration Reference#

Lingua Server Configuration#

Lingua server uses the llmlingua2 (LLMLingua-2) compression mode.

Docker Compose Environment Variables#

Parameter	Default	Allowed / Notes
`LINGUA_BACKEND`	`pytorch`	`pytorch` or `ov`
`LINGUA_DEVICE`	`xpu`	`xpu`, `cpu`, `cuda` (`cuda` is PyTorch-only)
`LINGUA_XPU_INDEX`	`0`	Used when `LINGUA_DEVICE=xpu`, specify the XPU index. For OpenVINO, maps to `GPU.<index>`; when index is `0`, generic `GPU` is also accepted as a compatibility fallback
`LINGUA_MODE`	`llmlingua2`	Compression mode: `llmlingua2`
`LINGUA_MODEL_NAME_ID`	empty	Optional fixed model id. Empty -> mode default
`LINGUA_PORT`	`8001`	Host port mapping for `lingua-pytorch` service
`LINGUA_OV_PORT`	`8002`	Host port mapping for `lingua-ov` service
`LINGUA_HOST`	`localhost`	Bind address for the container service

Default model when LINGUA_MODEL_NAME_ID is empty:

llmlingua2 -> microsoft/llmlingua-2-bert-base-multilingual-cased-meetingbank

HarnessCompressor Configuration#

Parameter	Type	Default	Description
`profile`	str	`"openclaw"`	Compression profile (sectioning strategy)
`lingua_url`	str	`"http://localhost:8001/compress"`	Lingua server URL
`compress_rate`	float	`0.5`	Target compression rate (0.0-1.0)
`compress_min_chars`	int	`500`	Minimum chars to trigger compression
`timeout`	float	`60.0`	Backend request timeout (seconds)
`enable_quantum_lock`	bool	`False`	Enable Claw Compactor QuantumLock stabilization

Example:

from adaptive_token_compressor.harness import HarnessCompressor

compressor = HarnessCompressor(
    profile="openclaw",
    lingua_url="http://localhost:8001/compress",
    compress_rate=0.5,
    compress_min_chars=500,
    timeout=60.0
)

ToolCompressor Configuration#

Parameter	Type	Default	Description
`predictor_url`	str	Required	Tool predictor LLM endpoint (e.g., vLLM `/v1/chat/completions`)
`predictor_model`	str	`"Qwen/Qwen3.6-35B-A3B"`	Model used by predictor
`score_threshold`	float	`3.0`	Minimum score for tool selection
`timeout`	int	`120`	Predictor request timeout (seconds)
`prompt_mode`	Literal	`"dynamic"`	`"static"` (fixed prompt) or `"dynamic"` (context-aware prompt)
`tool_descriptions_mode`	Literal	`"dynamic"`	`"static"` (default descriptions) or `"dynamic"` (extract from messages)
`placement`	Literal	`"schema"`	Where the predicted tool schema is placed. See Placement modes below.
`accumulate`	bool	`True`	Union the predicted tool set per conversation (append-only, never removed/reordered) so each turn’s tool block is a strict prefix-extension of the previous turn’s — keeping the prefix cache stable while still admitting tools that only emerge in later turns. Required by `user_inline_delta`.

Placement modes:

"schema" (default, production): predicted subset returned in result.tools, rendered inside the system message’s <tools> block by the chat template.
"user_inline_delta": tools appended as a trailing synthetic user message. The carrier is persisted per-conversation and re-spliced at a fixed offset each turn (prefix-cache stable), but delta-only — appends a carrier only when new tools appear, carrying just the delta over the running union. Requires accumulate=True.

Note:

schema + accumulate=True: reduces tool-schema tokens while keeping the prefix-cache hit rate from dropping significantly.
user_inline_delta + accumulate=True: reduces tokens while further improving the prefix-cache hit rate (still lower than baseline). This depends on the tool-predictor model’s own capability; verified to run stably on Qwen3.5-35B.

Example:

from adaptive_token_compressor.tool import ToolCompressor

compressor = ToolCompressor(
    predictor_url="http://localhost:8000/v1/chat/completions",
    predictor_model="Qwen/Qwen3.6-35B-A3B",
    score_threshold=3.0,
    timeout=120,
    prompt_mode="dynamic",
    tool_descriptions_mode="dynamic",
    placement="schema"
)

Available Metrics#

The library provides 15 metric types for tracking compression performance. Most metrics require a sources parameter specifying which compressor(s) to track (e.g., "harness", "tool", or ["harness", "tool"]). The exception is RequestCount, which is source-agnostic.

First-Order Metrics (Direct Aggregation)#

Metric	Description	Formula
`CallCount`	Total number of compression calls	Sum of all calls
`TotalInput`	Total input tokens	Sum of `tokens_before`
`TotalOutput`	Total output tokens	Sum of `tokens_after`
`TotalSaved`	Total tokens saved	Sum of `saved_tokens`
`TotalDuration`	Total compression time	Sum of `duration_ms`

Example:

manager.register_metric("total_calls", CallCount(sources="harness"))
manager.register_metric("total_saved", TotalSaved(sources=["harness", "tool"]))

Second-Order Metrics (Per-Call Averages)#

Metric	Description	Formula
`CompressionRatio`	Compression ratio (lower = better)	`sum(tokens_after) / sum(tokens_before)`
`AvgSavedPerCall`	Average tokens saved per call	`sum(saved_tokens) / call_count`
`AvgDurationPerCall`	Average duration per call	`sum(duration_ms) / call_count`
`AvgInputPerCall`	Average input tokens per call	`sum(tokens_before) / call_count`
`AvgOutputPerCall`	Average output tokens per call	`sum(tokens_after) / call_count`

Example:

manager.register_metric("ratio", CompressionRatio(sources="harness"))
manager.register_metric("avg_saved", AvgSavedPerCall(sources="tool"))

Third-Order Metrics (Per-Request Averages)#

These require passing req_id to compress() or using manager.set_per_anchor().

Metric	Description	Formula
`AvgSavedPerRequest`	Average tokens saved per request	`sum(saved_tokens) / unique_requests`
`AvgDurationPerRequest`	Average duration per request	`sum(duration_ms) / unique_requests`
`AvgInputPerRequest`	Average input tokens per request	`sum(tokens_before) / unique_requests`
`AvgOutputPerRequest`	Average output tokens per request	`sum(tokens_after) / unique_requests`
`RequestCount`	Number of unique requests (source-agnostic)	`len(unique req_ids)` (or anchor count)

Note: RequestCount is the only metric without a sources parameter — it counts requests across the whole manager, not per-compressor calls. Construct it with no arguments: RequestCount().

Example:

manager.register_metric("avg_per_req", AvgSavedPerRequest(sources="harness"))
manager.register_metric("request_count", RequestCount())  # no sources arg

# Option 1: Pass req_id explicitly
harness_compressor.compress(ctx, req_id="request-123")

# Option 2: Use anchor fallback
manager.set_per_anchor("harness")

Testing#

# Run all tests
pytest

# Specific module
pytest tests/core/test_metrics.py

# With coverage
pytest --cov=adaptive_token_compressor
