Edge Node Agent#

Background#

This document provides high level design and implementation guidelines. Refer to Node Agent in Edge Node Agents’ GitHub repository for implementation details.

Target Audience#

The target audience for this document is:

Developers interested in contributing to the implementation of the Node Agent.
Administrators and System Architects interested in the architecture, design and functionality of the Node Agent.

Overview#

Node Agent is part of the Open Edge Platform’s Edge Node Zero Touch Provisioning.

Node Agent interacts with Host Manager to send heartbeats from the node as it runs indefinitely.

The second responsibility of the Node Agent is to obtain JWT tokens for all other agents running on the Edge Node.

For this, the agent uses OAuth 2.0 Client Credential Grant which requires a pair of credentials on the Edge Node.

The Node Agent makes API calls to Keycloak IDP Service to obtain fresh and renewed JWT tokens. It authenticates to the Keycloak IDP Service using the credentials provisioned on the Edge Node during provisioning.

Node Agent is also responsible for the setting up of Caddy proxy.

Caddy is a third party proxy server being used as a forward proxy on the Edge Node. This serves as a forward proxy for containerd and apt client that runs on Edge Node. It appends JWT token to requests from either of the clients. Node Agent installs Caddy as a dependency in the Debian/RPM package.

Architecture Diagram#

The Node Agents follows the architecture and design principles set out in High-Level Architecture

High-Level Architecture of the Node Agent — Figure 1: High-Level Architecture of Node Agent#

Key Components#

The Node Agent is a system daemon packaged as a .deb or .rpm package (depending on target Operating System).
node-agent.yaml file stores node Agent’s configuration.
1. The Node Agent requires a designated JWT token.
2. The Node Agent kickstarts deployment of Caddy proxy.

Data Flow#

The data flow of the Node Agent can be broken down into multiple concepts called out in Workflow Stages section.

Workflow Stages#

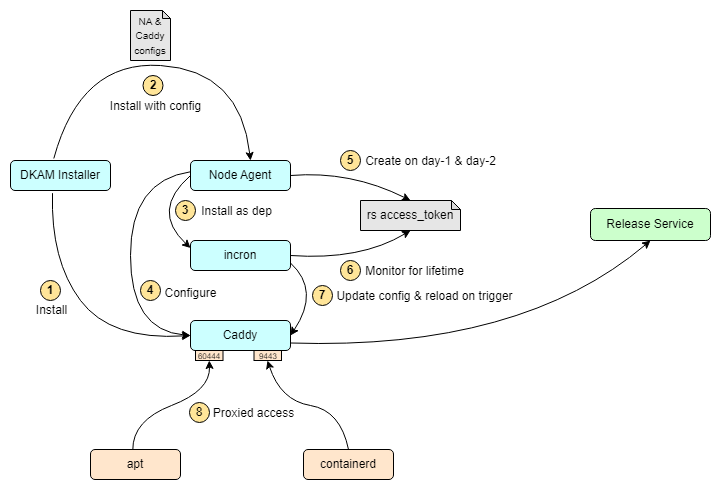

Caddy as forward proxy: Following diagram illustrates how Caddy is installed and configured during provisioning. It also captures the token refresh mechanism which ensures Caddy always uses an updated token in the header of the outgoing request.

Figure 2: Caddy as a forward proxy#

Secrets Provisioning Sequence Flow:

Phase-1 - Fresh token provisioning for Edge Node Agents and access to Release Service Phase-2 - Credentials’ lifecycle management on the Edge Node

        sequenceDiagram
   box LightYellow Edge Node
      participant na as Node Agent
      participant ena as Edge Node<br> Agents
   end
   box rgb(235,255,255) Orchestrator
      participant kc as KeyCloak
      participant trp as Traefik Reverse Proxy
      participant ks as Kubernetes Secret
   end
autonumber
   loop Create access_token for all configured Agents
      na->>kc: Authenticated[client_id, client_secret] request for fresh token
      kc->>na: Response :: New token [access_token]
      na-->>na: Persist [access_token] at <br>/etc/intel_edge_node/tokens
      ena-->>ena: Read [access_token] from /etc/intel_edge_node/tokens
   end
   na->>trp: Authenticated[access_token] request for Release Service Token
   trp-->>ks: Read shared secret
   trp->>na: Return Release Service Token[rs_access_token]
   na-->>na: Persist [rs_access_token] at <br>/etc/intel_edge_node/tokens/release-service

Figure 3: Secrets Provisioning Sequence Flow

Access Token Renewal:

Refresh token is no used to renew the access token.

As per the RFC 6749 <https://datatracker.ietf.org/doc/html/rfc6749>_, a refresh token is not required to be used for Client Credentials Grant.

Whenever an access token needs to be refreshed, client_id/client_secret needs to be sent by the confidential client to the authorization server.

So, Node Agent needs to pull out the client_id/client_secret to request a new access token.

        sequenceDiagram
   box LightYellow Edge Node
      participant na as Node Agent
   end
   box rgb(235,255,255) Orchestrator
      participant kc as KeyCloak
   end
autonumber
   loop Monitor all access_tokens
      na-->>na: Read token from /etc/intel_edge_node/tokens & check expiry
      alt access_token about to expire/expired
            Note over na,kc: Renew access_token
            na->>kc: Authenticated[client_id, client_secret] request for fresh token
            kc->>na: Response :: New [access_token]
            na-->>na: Persist new [access_token] at /etc/intel_edge_node/tokens
      else Valid till next cycle
            na-->>na: Skip to next token
      end
      na-->>na: Wait for next cycle
   end

Figure 4: Access Token Renewal

Release Service Token Renewal:

All agents are expected to read JWT tokens from a configured location. Node Agent is transparent for them. Same applies to refresh flows.

        sequenceDiagram
   box LightYellow Edge Node
      participant na as Node Agent
   end
   box rgb(235,255,255) Orchestrator
      participant trp as Traefik Reverse Proxy
      participant ks as Kubernetes Secret
   end
autonumber
   loop Monitor rs_access_token
      na-->>na: Read token from /etc/intel_edge_node/tokens/release-service & check expiry
      alt rs_access_token about to expire/expired
            Note over na,ks: Renew rs_access_token
            na->>trp: Authenticated[access_token] request for Release Service Token
            trp-->>ks: Read shared secret
            trp->>na: Return Release Service Token[rs_access_token]
            na-->>na: Persist [rs_access_token] at <br>/etc/intel_edge_node/tokens/release-service
      else Valid till next cycle
            na-->>na: Wait for next cycle
      end
   end

Figure 5: Release Service Token Renewal

Extensibility#

The Node Agent functionality can be extended by making source code changes.

Deployment#

The Node Agent is deployed as a system daemon via installation of a .deb package during the provisioning or .rpm package as part of the Edge Microvisor Toolkit.

The Caddy proxy is deployed as a dependency during installation.

Technology Stack#

Below sections provide an overview of various aspects of the Node Agent’s technology stack.

Implementation#

The Node Agent is written in Go programming language.

Node Agent does not persist any data on disk or in database. State is maintained in memory.

System Diagram#

Node Agent is dependent on Keycloak IDP Service and Host Manager in the Edge Orchestrator.

Caddy Proxy is an external dependency.

Integrations#

Node Agent does not expose an API. It consumes APIs from Host Manager and Keycloak IDP Service.

Communication with Host Manager is implemented via gRPC protocol. Host Manager acts as a server for the Node Agent.

Node Agent sends heartbeat messages to Host Manager at a regular interval.

Using heartbeat, the Host Manager is able to deduce connectivity to the Edge Node.

Communication with Keycloak IDP Service is implemented via REST protocol. All JWT tokens are sourced from the Keycloak Service.

Security#

Security Policies#

Node Agent adheres to Edge Node Agents High-Level Architecture security design principle.

Auditing#

Node Agent adheres to Edge Node Agents High-Level Architecture observability design principle.

Upgrades#

Node Agent adheres to Edge Node Agents High-Level Architecture upgrade design principle.
