Edge Node Platform Update Agent#

Background#

This document provides high-level design and implementation guidelines. Refer to Platform Update Agent in Edge Node Agents’ GitHub* repository for implementation details.

Target Audience#

The target audience for this document is:

Developers interested in contributing to the implementation of the Platform Update Agent.
Administrators and System Architects interested in the architecture, design and functionality of the Platform Update Agent.

Overview#

Platform Update Agent is part of the Open Edge Platform’s Edge Node Zero Touch Provisioning. It is installed, configured and automatically executed at Provisioning time.

The main responsibility of the agent is to provide system level (Operating System packages, Edge Node Agents, Kernel Command-line) update capabilities and installation of new packages during Day 2 operation of the Edge Node.

Platform Update Agent reports its status and makes requests for Update Source list and Update Schedule to Maintenance Manager in Edge Infrastructure Manager. It will perform updates based on the received schedule.

Platform Update Agent leverages Intel® In-Band Manageability software to update OSes and install new packages.

Architecture Diagram#

The Platform Update Agent follows the architecture and design principles set out in High-Level Architecture

High-Level Architecture of the Platform Update Agent — Figure 1: High-Level Architecture of Platform Update Agent#

Key Components#

The Platform Update Agent is a system daemon packaged as a .deb or .rpm package (depending on target Operating System).
platform-update-agent.yaml file stores Platform Update Agent’s configuration.
platform-update-agent-metadata file stores Platform Update Agent’s metadata.
The Platform Update Agent requires a designated JSON Web Token (JWT).
Intel® In-Band Manageability framework is leveraged by Platform Update Agent to perform updates.

Data Flow#

The data flow of the Platform Update Agent can be broken down into multiple concepts called out in Workflow Stages section.

Workflow Stages#

Update Sequence Diagram - Ubuntu* OS detailed view:

Sequence diagram showcasing the communication between the Maintenance Manager in Edge Orchestrator and Platform Update Agent on the Edge Node.

Ubuntu OS update as an example with focus on the internal components of the Platform Update Agent.

        sequenceDiagram
%%{wrap}%%
autonumber
participant mm as "Maintenance Manager"
box Edge Node
participant pua as Platform Update Agent
participant inbc as INBC
participant grub as GRUB (Kernel Commandline)
participant apt as APT (Tool and filesystem)
participant ur as Upstream APT Repo (OS)
participant pr as Private APT Repo (Open Edge Platform)
end

pua->>pua: read configuration file
note over pua: metadata will indicate if PUA was restarted during/due to update, it will indicate if certain steps will be skipped because they were already performed as part of updating
pua->>pua: read/init metadata

note over pua: if INBM has not been provision
pua->>pua: provision INBM

loop periodically
   pua->>mm: PlatformUpdateStatusRequest(guid, UP_TO_DATE)
   mm->>pua: PlatformUpdateStatusInd (update_source, update_schedule)
   pua->>pua: update/watch the schedule on EN
   pua->>pua: update metadata
end

note over  pua, mm: reach maintenance schedule start time
   pua-->>mm: PlatformUpdateStatusRequest(guid, STARTED)
mm->>pua: PlatformUpdateStatusInd (update_source, update_schedule)
   pua->>pua: update metadata

note over  pua, mm: UPDATE APT SOURCES
pua->>inbc: update Ubuntu sources through INBM config (ConfigureOsAptRepo(osRepoURL))
inbc->>apt: inbc source os update (--sources osRepoURL)
inbc->>pua: success
pua->>inbc: update Open Edge Platform sources through INBM config (ConfigureCustomAptRepos(CustomRepos))
inbc->>apt: inbc source application add (--sources CustomRepos)
inbc->>pua: success

note over  pua, mm: SELF PUA UPDATE
pua->>apt: SelfUpdate() - apt "NEEDRESTART_MODE=a" install --only-upgrade platfrom-update-agent
apt->>pr: get latest package
pr->>apt: return and install latest package
apt->>pua: if package available = success, PUA restarts, if no package available =success, continue

note over  pua, mm: UPDATE INBM
pua->>apt: updateINBM() - apt install --only-upgrade inbm***
apt->>pr: get latest packages
pr->>apt: return and install latest packages
apt->>pua: success

note over pua, mm: UPDATE GRUB CONFIG
pua->>pua: get new GRUB config version
pua->>grub: Update Kernel Commandline boot parameters /etc/default/grub
pua->>grub: update-grub
grub->>grub: updating grub config

note over  pua, mm: INSTALL NEW OS PACKAGES AND AGENTS
pua->>inbc: inbc sota --packa_list package_1 -m download-only --reboot no
inbc->>apt: apt-get install package1 --download-only
apt->>pr: get latest packages
pr->>apt: return and download latest packages
apt->>inbc: success
inbc->>pua: success
pua->>inbc: inbc sota --packa_list package_1 -m no-download --reboot no
inbc->>apt: apt-get install packages -n no-download -no-reboot
apt->>inbc: success
inbc->>pua: success

note over pua, mm: UPDATE OS PACKAGES AND AGENTS
pua->>inbc: download packages - inbc sota -m download-only -no-reboot
inbc->>apt: apt update && apt-upgrade --download-only
apt->>pr: get latest packages
pr->>apt: return and download latest packages
inbc->>pua: success
pua->>inbc: inbc sota -m no-download --reboot yes
pua->>apt: update OS and Agents: apt-upgrade --no-download --reboot yes
apt->>inbc: success
inbc->>pua: success

note over pua: INBM REBOOTS THE NODE
pua->>pua: verify OS/Agents update
Note over mm, pua: update done/failed
pua->>pua: change status to 'UPDATED'/'FAILED' and update metadata
pua->> mm: PlatformUpdateStatusRequest(guid, UPDATED/FAILED)
   mm->>pua: PlatformUpdateStatusInd (update_source, update_schedule)
   pua->>pua: change status to 'UP-TO-DATE' (if update is not FAILED) and update metadata

Figure 2: Platform Update Agent - Ubuntu OS detailed view

Platform Update Agent sequence - interaction with Edge Infrastructure Manager - Edge Microvisor Toolkit detailed view:

Sequence diagram showcasing the communication between the Platform Update Agent and the Edge Orchestrator.

Edge Microvisor Toolkit update as an example with focus on the communication between Edge Infrastructure Manager and Platform Update Agent.

        sequenceDiagram
%%{wrap}%%
autonumber

actor a as Admin
participant reg as Release Service
participant ui as User Interface
participant inv as Inventory
participant hm as Host Manager
participant nm as New OS Resource Manager
participant mm as Maintenance Manager
box LightCyan Edge Node
participant pua as Platform Update Agent / INBC
participant na as Node Agent
end

note over pua, na: EN OS is installed on partition A and all EN components are up

par
   loop periodically
      na->>hm: Send EN heartbeat
      opt Host status change
         hm->>inv: Update host status
      end
   end
   loop daily
      nm->>reg: download new Curated Profile manifests
      reg-->>nm: return
      nm->>nm: parse the manifests
      nm->>inv: create new OS Resources for new Curated Profiles
      opt manualOSImageUpdate=false
         nm->>inv: update desired_os of all instances with latest OS where instance.desired_os.profile_name=manifest.profile_name
      end
   end
   loop periodically
      pua->>mm: PlatformUpdateStatusRequest(guid, UP_TO_DATE)
      mm->>inv: Set Instance UpdateStatus(UP_TO_DATE)
      mm->>pua: PlatformUpdateStatusResponce (os_type, os_image_source, update_source, update_schedule)
      pua->>pua: update metadata
   end
   opt manualOSImageUpdate=true
      a->>inv: update desired_os to a selected OS Resource in chosen Instances
   end
   ui->>inv: per instance, get the ResourceID of current_os and desired_os if the current_os's osType == immutable
   inv-->>ui: return
   ui->>ui: display 'Update available' in host details if osType == immutable and current_os.resourceId != desired_os.resourceId
end
note over  pua, mm: OS image update start time reached
pua->>mm: PlatformUpdateStatusRequest(guid, STARTED)
mm->>inv: Update Instance UpdateStatus (inst_id, UPDATE_IN_PROGRESS)
pua->>pua: read metadata
note over  pua, mm: UPDATE OF IMMUTABLE OS IMAGE
pua->>pua: read metadata
pua->>pua: compare sha and version of the installed image to the sha and version in the metadata
alt versions are the same
   pua->>mm: UpdateStatus=UP_TO_DATE
   mm->>inv: UpdateStatus=UP_TO_DATE
else versions are different
   pua->>reg: download image on partition B using os_image_url
   reg-->>pua: return
   alt download fail
      pua->>mm: UpdateStatus=FAILED FailureReason="DownloadFail"
      mm->>inv: UpdateStatus=FAIL
   else download success
      pua->>mm: UpdateStatus=STARTED
      pua->>pua: install OS on partition B
      pua->>pua: verify installation before reboot
      alt installation fail
         pua->>mm: UpdateStatus=FAILED StatusDetail.Status=Failed FailureReason=InstallationFail
         mm->>inv: UpdateStatus=FAIL
      else installation success
         pua->>mm: UpdateStatus=STARTED
         pua->>pua: set partition B as one-time bootable
         pua->>pua: reboot node
         alt node fails to boot up from partition B, successful boot up from partition A (rollback success)
            pua->>mm:  UpdateStatus=FAILED StatusDetail.Status=Rolledback FailureReason=BootloaderFail
            mm->>inv: UpdateStatus=FAIL
         else node fails to boot up from partition B and partition A (rollback failure)
            hm->>inv: HostStatus=CONNECTION_LOST
         else node boots up from partition B
            note over pua: PUA and INBM start
            pua->>pua: verify update completion and set partition B as bootable
            alt update fail
               pua->>mm: UpdateStatus=FAILED StatusDetail.Status=Failed e.g. FailureReason=OSCommitFail
               mm->>inv: UpdateStatus=FAIL
               pua->>pua: reboot (rollback to partition A)
               pua->>mm: UpdateStatus=FAILED StatusDetail.Status=Rolledback e.g. FailureReason=OSCommitFail
               mm->>inv: UpdateStatus=FAIL
            else update success
               pua->>mm: UpdateStatus=UPDATED StatusDetail.Status=SUCCESS FailureReason=NoFailure, sends installed profile_name, profile_version
               mm->>inv: Filter OSResources by profile_name and profile_version=x, get one (A)
               inv-->>mm: return
               mm->>inv: Set Instance UpdateStatus=DONE, current_os=A
               pua->>mm: UpdateStatus=UP_TO_DATE
               mm->>inv: UpdateStatus=RUNNING
            end
         end
      end
   end
end

Figure 3: Platform Update Agent sequence - interaction with Edge Infrastructure Manager - Edge Microvisor Toolkit detailed view

Platform Update Agent integration with JWT:

Since APT does not nativity support JWT for authentication, it is necessary to introduce forward proxy that will act as an intermediary between APT and Release Service file server.

Caddy* server is a third party proxy server being used as a forward proxy on the Edge Node.

It appends JWT to requests from APT client.

Figure 4: Platform Update Agent integration with JWT

Extensibility#

The Platform Update Agent supports installation of new Ubuntu OS packages, to install new packages follow Edge Node update instructions.

Deployment#

The Platform Update Agent is deployed as a system daemon via installation of a .deb package during the provisioning or .rpm package as part of the Edge Microvisor Toolkit.

Technology Stack#

Below sections provide an overview of various aspects of the Platform Update Agent’s technology stack.

Implementation#

The Platform Update Agent is written in the Go* programming language. Platform Update Agent persists metadata file across updates/reboots to keep track of update stages.

Platform Update Agent pulls a Platform Update Schedule from the Maintenance Manager residing in the Edge Infrastructure Manager.

The schedule comes as part of the API call response from Maintenance Manager, it contains update_schedule (time to perform update), update_source (the sources information) and installed_packages (new packages to be installed) fields.

Internally PUA call INBM software to initiate the download and installation of new or updated OS level packages.

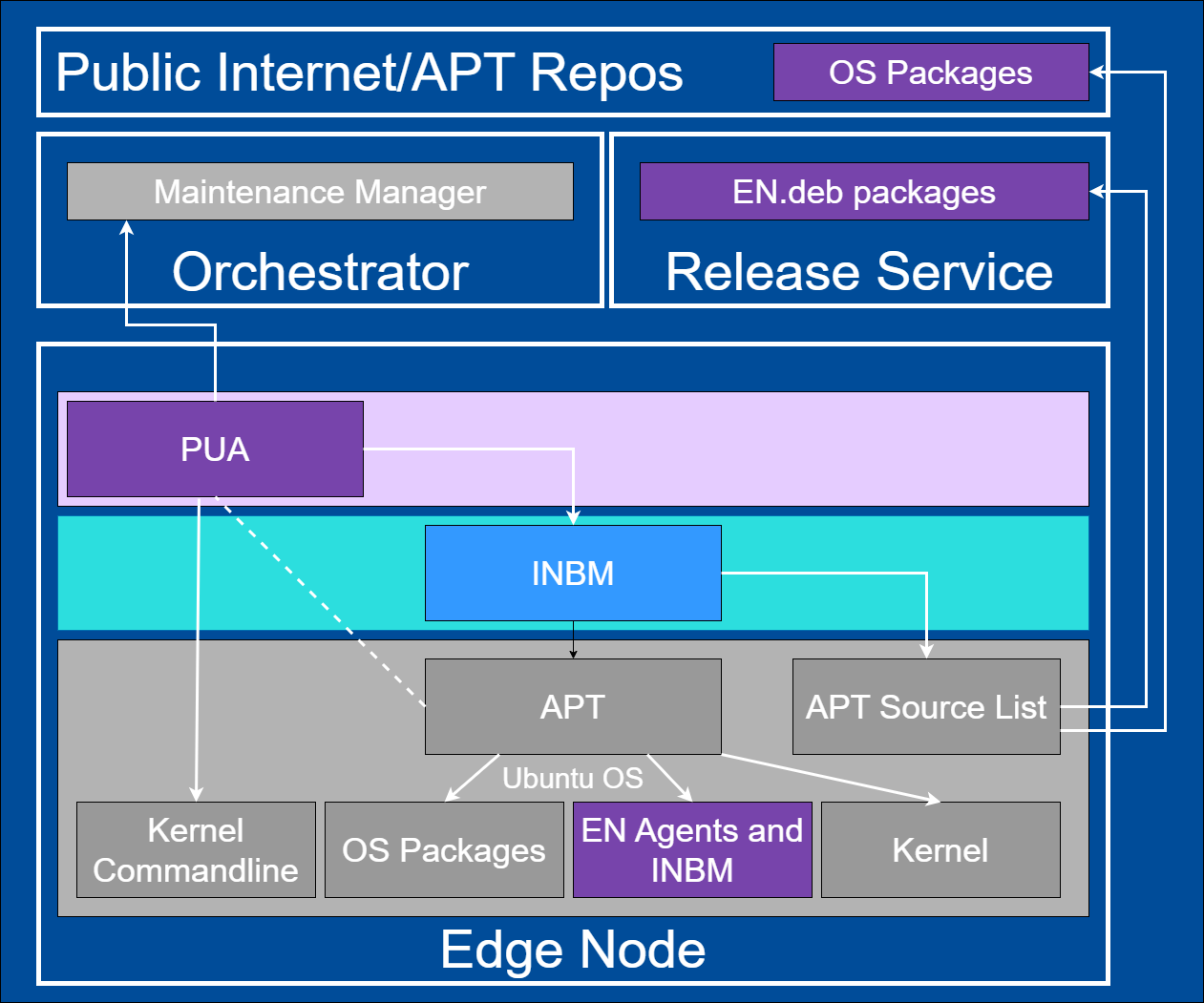

System Diagram#

Platform Update Agent depends on Edge Node’s Maintenance Manager. It is also depends on the Intel In-Band Manageability framework (<intel/intel-inb-manageability>) to perform update flow inside the code.

Update artifacts are published on APT server as part of a Release Service.

Figure 5: Platform Update Agent system diagram#

Integrations#

Platform Update Agent does not expose an API, rather it is consuming APIs from both Edge Cluster Manager.

Platform Update Agent polls (over gRPC) the Maintenance Manager in Edge Infrastructure Manager periodically to:

Obtain schedules for Edge Node updates.
Obtain the list/source URL of apt mirrors in which the potential updates reside.
Platform Update Agent keeps track of internal Edge Node status in relation to system updates and saves it in the metadata file.

Platform Update Agent statuses (communicated to Maintenance Manager):

STATUS_TYPE_DOWNLOADED 6 - Status when the EN completes downloading update artifacts
STATUS_TYPE_DOWNLOADING 5 - Status when the EN is downloading update artifacts
STATUS_TYPE_FAILED 4 - Status when the EN update fails; a detailed log is also sent
STATUS_TYPE_UPDATED 3 - Status when the EN update is completed successfully
STATUS_TYPE_STARTED 2 - Status when the update process of EN has started
STATUS_TYPE_UP_TO_DATE 1 - Status when EN is not performing any update related actions
STATUS_TYPE_UNSPECIFIED 0 - Default value, status not specified

Platform Update Agent call to Maintenance Manager:

PlatformUpdateStatusRequest - Periodic request that sends Edge Node UUID and its update status, and receives update schedules and update source list.

        stateDiagram
   [*] --> UP_TO_DATE

   UP_TO_DATE --> DOWNLOADING: Download starts
   DOWNLOADING --> DOWNLOADED : Download succeeds
   DOWNLOADED --> DOWNLOADING: New version available
   DOWNLOADING --> FAILED: Download fails, maint window is over
   DOWNLOADING --> UP_TO_DATE: Download canceled

   DOWNLOADED --> STARTED: Update started
   STARTED --> UPDATED: Update succeeds
   STARTED --> FAILED: Update fails

   FAILED --> DOWNLOADING: Retry download with new maint window

   UPDATED --> UP_TO_DATE

Figure 6: Platform Update Agent integration

Security#

Security Policies#

Platform Update Agent adheres to Edge Node Agents High-Level Architecture security design principle.

Auditing#

Platform Update Agent adheres to Edge Node Agents High-Level Architecture observability design principle.

Upgrades#

Platform Update Agent adheres to Edge Node Agents High-Level Architecture upgrade design principle.
