Deployment Package Placeholders Reference#
The placeholders are keywords that are used to bring deployment-time automation to the deployment of Helm Charts in the Edge Orchestrator Application Orchestration.
They are replaced with actual values during the deployment process.
The placeholders should only be applied in the override values files of the Application Profile. While it is possible to insert the placeholders in to the values file of the Helm chart, this is not recommended as it is only replaced when the Application is deployed through Fleet, and has no meaning for Helm on its own.
It is also recommended to wrap the placeholder in quotes so that the delimiter will not cause parsing errors when trying out the values file with helm template.
Placeholder %ImageRegistryURL%#
The placeholder %ImageRegistryURL% in the values files will be replaced (during deployment) with the RootURL value of the imageRegistry object that your application points to.
If your Application does not specify an imageRegistry, the placeholder will cause an error during deployment.

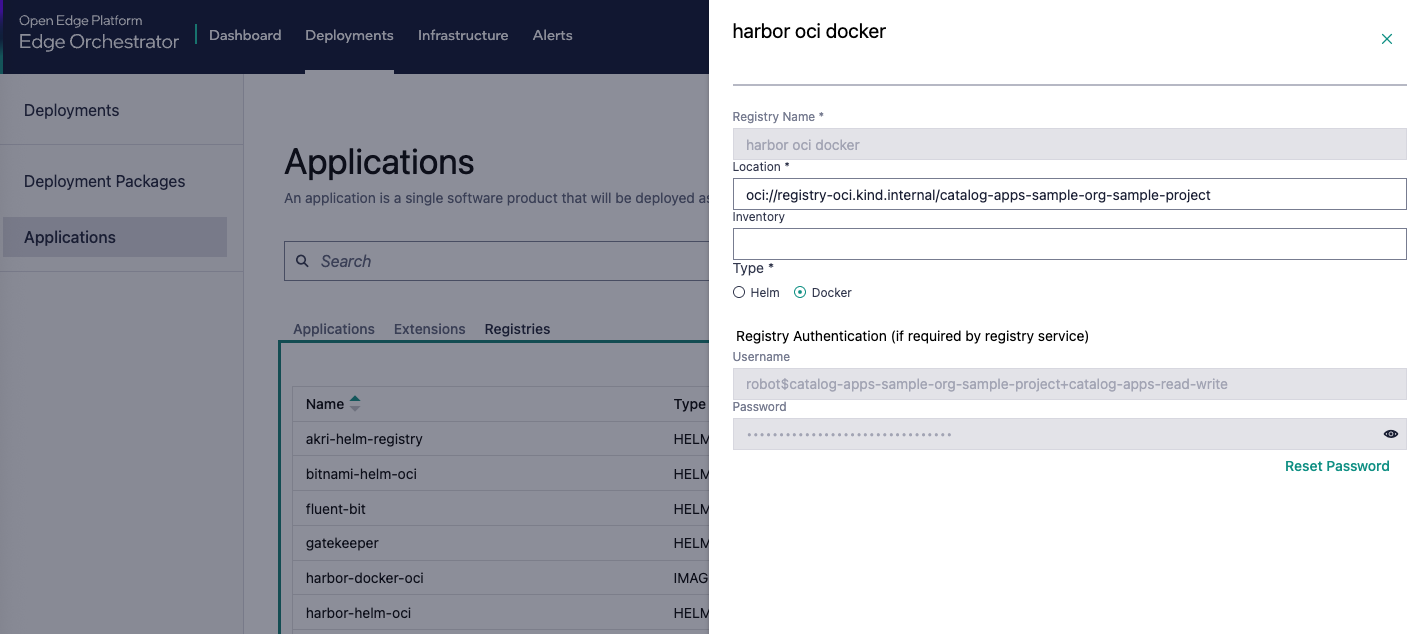

By default the Registry object for the local OCI registry harbor-docker-oci has its RootURL values set in the format oci://registry-oci.<CLUSTER_FQDN>/catalog-apps-<ORG>-<PROJECT>, where <CLUSTER_FQDN> is the fully qualified domain name of your Edge Orchestrator orchestrator cluster, <ORG> is the multi-tenant organization name, and <PROJECT> is the multi-tenant project name you are working in. For example it might be oci://registry-oci.my-cluster.example.com/catalog-apps-my-org-my-project.
Usage of %ImageRegistryURL%#
In the values file it usually used to override the image.repository value, like:
deployment-package.yaml:
image:
repository: '%ImageRegistryURL%/hello-world-image'
Note
Since every Helm chart could be constructed differently, you should check that the value you are overriding is the correct. This can be easily verified by running helm template on the Helm chart with your override values and checking the output.
The main use for the %ImageRegistryURL% placeholder is with the harbor-docker-oci imageRegistry, but it can also be used with any Registry objects you add yourself for your own private registry.
Placeholder %GeneratedDockerCredential%#
The placeholder %GeneratedDockerCredential% in the values files will be replaced (during deployment) with the name of a Kubernetes Secret that contains the Docker credentials for the OCI registry. The secret is generated by reading the username and password from the Registry object that your application points to.
This is useful for Helm Charts that need to pull images from a private registry that requires authentication.
Usage of %GeneratedDockerCredential%#
Generally the placeholder is used in the imagePullSecrets section of the values file, like:
imagePullSecrets:
- name: "%GeneratedDockerCredential%"
Note
Since every Helm chart could be constructed differently, you should check that the value you are overriding is the correct. This can be easily verified by running helm template on the Helm chart with your override values and checking the output.
As the deployment is performed, the Kubernetes Secret object will be dynamically created with a random name. The contents in the Secret will be in the form:
apiVersion: v1
kind: Secret
metadata:
name: <randomly-generated-name>
namespace: <deployment-namespace>
type: kubernetes.io/dockerconfigjson
data:
- .dockerconfigjson={"auths":{"registry-oci.kind.internal":{"password":"****","username":"robot$catalog-apps-sample-org-sample-project+catalog-apps-read-write"}}}
- accessKeyId=robot$catalog-apps-sample-org-sample-project+catalog-apps-read-write
- secretKey=****
Placeholder %PreHookCredential%#
The placeholder %PreHookCredential% in the values files will be replaced (during deployment) with the name of a Kubernetes Secret that contains the Docker credentials for the OCI registry. The secret is generated by reading the username and password from the Registry object that your application points to.
This is useful for Helm* Charts that have a pre-hook template that needs to pull an image from a private registry that requires authentication.
In contrast to the %GeneratedDockerCredential% produced Secret, the Secret produced by the %PreHookCredential% placeholder will be deployed in its own Fleet bundle and the main Fleet bundle for the application will be made dependent on it. In this way the presence of the Secret is guaranteed before the application’s Fleet bundle is deployed.
The actual placeholder will not be replaced with a Secret name, but rather the %GeneratedDockerCredential% will point to the Secret created by the %PreHookCredential% placeholder. Therefore, the %PreHookCredential% placeholder is to trigger the creation of the Secret before the main application is deployed.
Usage of %PreHookCredential%#
The placeholder is used together with the in the %GeneratedDockerCredential% placeholder in the imagePullSecrets section of the values file, like:
imagePullSecrets:
- name: "%GeneratedDockerCredential%"
prehook: "%PreHookCredential%"
Note
It does not matter what Helm Chart value the %PreHookCredential% placeholder is used in, it just has to be present at least once in the values override file. The placeholder will not be replaced.
Placeholders %OrgName% and %ProjectName%#
The placeholder %OrgName% will be replaced (during deployment) with the name of the multi-tenant Organization of the Edge Orchestrator that you are deploying with.
Likewise the placeholder %ProjectName% will be replaced with the name of the multi-tenant Project of the Edge Orchestrator that you are deploying with.
The placeholders can be used independently or together.
Usage of %OrgName% and %ProjectName%#
The placeholder may be used in the override values files of the Application Profile, in any context where the Organization name is needed, such as:
my-amazing-application:
deployedWith:
org: '%OrgName%'
project: '%ProjectName%'
