Architecture#

This document provides a comprehensive view of Edge Manageability Framework observability platform and an overview of key components that help you to monitor, analyze, and troubleshoot the Edge Nodes and Edge Manageability Framework itself.

Architecture Diagram#

Overview of Observability Services

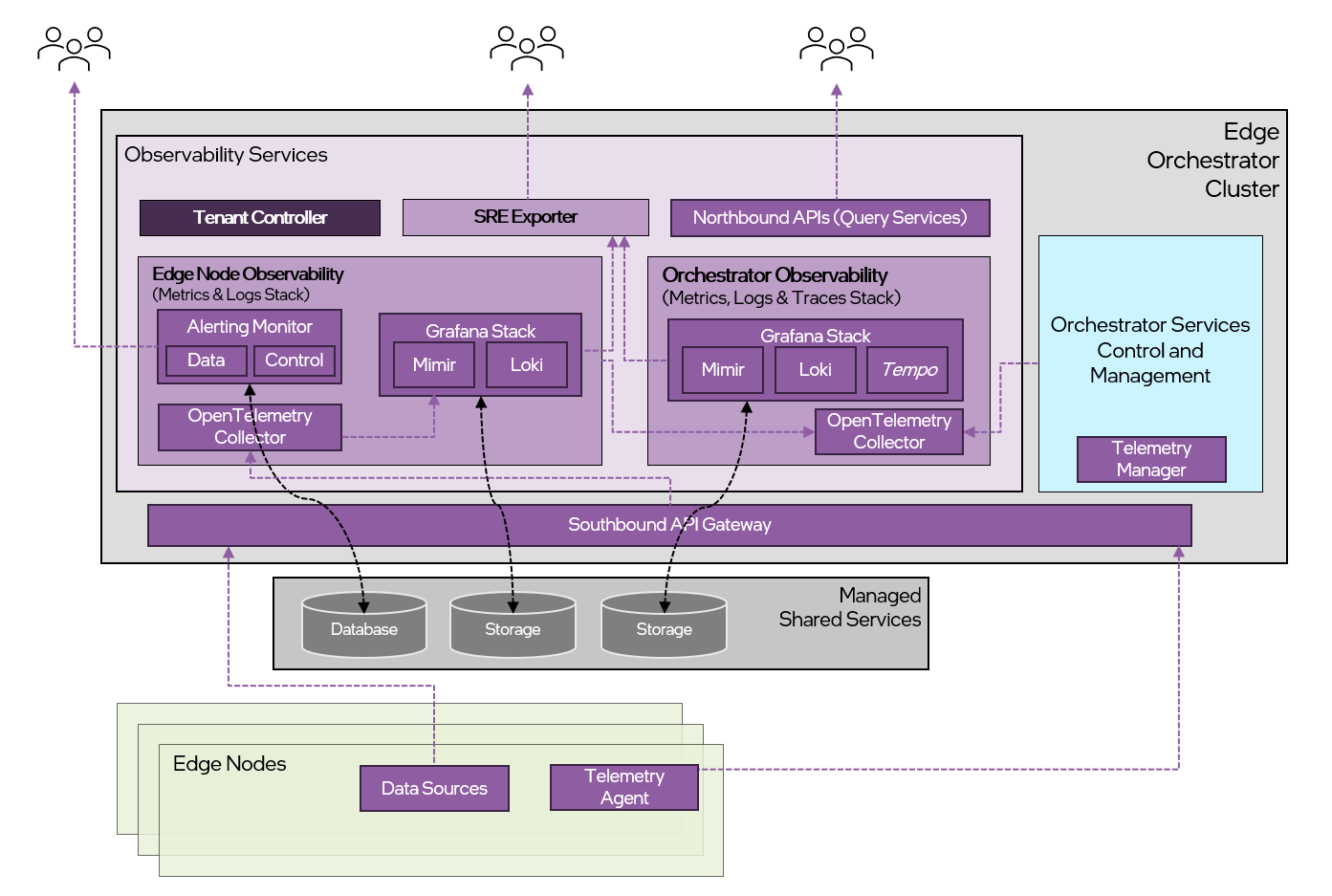

Figure 1: Overview of Observability Services#

Key Components#

Orchestrator Observability Stack#

Provides the administrative view and visibility into Edge Manageability Framework. Refer to Edge Orchestrator Observability Stack for more details.

Administrative access allows reviewing data across multiple projects - see Multitenancy to learn more about multi-tenancy concepts in Edge Manageability Framework Observability.

Edge Node Observability Stack#

Provides the visibility into the Edge Nodes. Refer to Edge Node Observability Stack for architecture details.

The stack allows collecting and analyzing data from the Edge Node host system layer when deployed. Refer to Hosts (Edge Node) for more details.

Note

The range and quantity of data collected from the Edge Node Agents can be controlled via Edge Infrastructure Manager’s Telemetry Control subsystem. Refer to Edge Node Platform Telemetry Agent for more details.

Based on project-level access granted, users can review a subset of data collected for allowed projects - please see Multitenancy to learn more about multi-tenancy concepts in Edge Manageability Framework Observability.

Alerting Monitor#

Based on the collected data, the Alerting Monitor component can trigger alerts and notifications. Refer to Alerting Monitor for more details. This component exposes an Alerts API that can be used to query and manage alerts per project.
