Weld Defect Detection

GitHub

This sample app demonstrates how AI-driven analytics enable edge devices to monitor weld quality. It detects anomalous weld patterns and alerts operators for timely intervention, ensuring proactive maintenance, safety, and operational efficiency. No more failures and unplanned downtime.

In this article, you can learn about the architecture of the sample and its data flow.

If you want to start working with it, instead, check out the Get Started Guide or How-to Guides for Time-series applications.

App Architecture

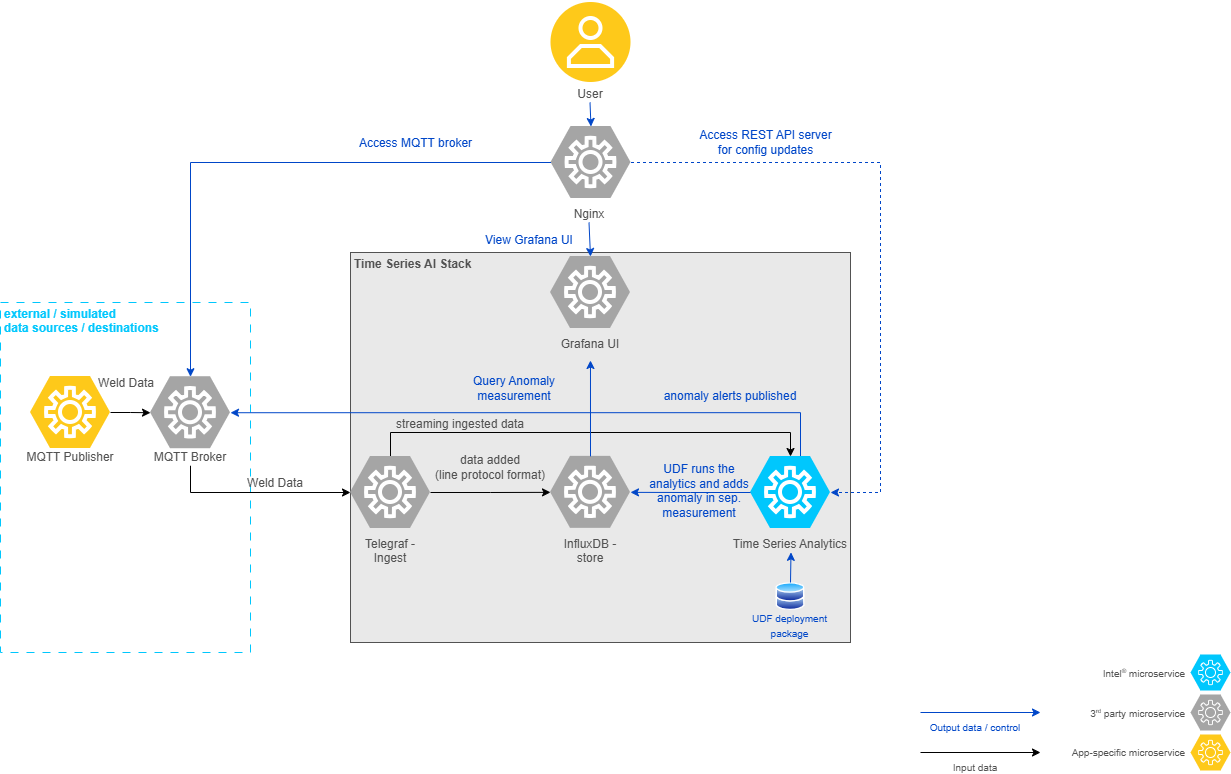

As seen in the following architecture diagram, the sample app at a high-level comprises of data simulators(can act as data destinations if configured) - these in the real world would be the physical devices, the generic Time Series AI stack based on TICK Stack comprising of Telegraf, InfluxDB, Time Series Analytics microservice using Kapacitor and Grafana.

Data flow explanation

Let’s discuss how this architecture translates to data flow in the Weld Defect Detection use case, by ingesting the data using the MQTT publisher simulator and publishing the anomaly alerts to MQTT broker.

Data Sources

Simulation data in CSV format from edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-time-series/apps/weld-defect-detection/simulation-data is ingested into Telegraf using the MQTT protocol using the MQTT publisher data simulator.

Data Ingestion

Telegraf through its input plugins MQTT gathers the data and sends this input data to both InfluxDB and Time Series Analytics Microservice.

Data Storage

InfluxDB stores the incoming data coming from Telegraf.

Data Processing

Time Series Analytics Microservice uses the User Defined Function(UDF) deployment package(TICK Scripts, UDFs, Models) coming from the sample apps. The UDF deployment package for Weld Defect Detection sample app is available at edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-time-series/apps/weld-defect-detection/time-series-analytics-config.

Directory details is as below:

config.json

The task section defines the settings for the Kapacitor task and User-Defined Functions (UDFs).

Key	Description	Example Value
udfs	Configuration for the User-Defined Functions (UDFs).	See below for details.

UDFs Configuration:

The udfs section specifies the details of the UDFs used in the task.

Key	Description	Example Value
name	The name of the UDF script.	"weld_defect_detector.py"
models	The names of the model files used by the UDF.	"weld_defect_detector.pkl"
device	Specifies the hardware CPU or GPU for executing the UDF model inference.Default is cpu	cpu

Note: The maximum allowed size for config.json is 5 KB.

---

Alerts Configuration:

The alerts section defines the settings for alerting over MQTT protocol.

MQTT Configuration:

The mqtt section specifies the MQTT broker details for sending alerts.

Key	Description	Example Value
mqtt_broker_host	The hostname or IP address of the MQTT broker.	"ia-mqtt-broker"
mqtt_broker_port	The port number of the MQTT broker.	1883
name	The name of the MQTT broker configuration.	"my_mqtt_broker"

udfs/

Contains the Python script to process the incoming data. Uses RandomForestClassifier from scikit-learn with Intel’s extension (sklearnex) to detect anomalous weld patterns in sensor data. Supports GPU offloading on Intel GPUs via the target_offload configuration for accelerated inference.

Note: Configure DEVICE environment variable ('auto', 'gpu', or 'cpu') to control hardware acceleration.

tick_scripts/

The TICKScript weld_defect_detector.tick determines processing of the input data coming in. Mainly, has the details on execution of the UDF file, storage of processed data and publishing of alerts. By default, it is configured to publish the alerts to MQTT.

models/

Contains serialized model files:

• weld_defect_detector.pkl: Trained RandomForestClassifier pipeline (scikit-learn format)

• weld_defect_detector_labels.pkl: Label encoder for class names

• weld_defect_detector.json: Model metadata including feature statistics and class information for model explainability
