Visual AI Demo Kit - Tutorial 1#

This tutorial walks you through creating an AI-powered tolling system that automatically detects vehicles, recognizes license plates, and analyzes vehicle attributes in real-time. The system leverages Intel’s DLStreamer framework with pre-trained AI models to process video streams from toll booth cameras, enabling automated toll collection and traffic monitoring.

By following this guide, you will learn how to:

  • Set up the AI Tolling Application: Create a new application based on the Smart Parking template and configure it for tolling use cases

  • Download and Configure AI Models: Install YOLO object detection models and Intel’s specialized license plate recognition models

  • Configure Video Processing Pipeline: Set up the DLStreamer pipeline for real-time vehicle detection and license plate recognition

  • Deploy and Run the System: Launch the containerized application and monitor its performance

Prerequisites#

Application Architecture Overview#

AI Tolling Sytem Diagram

The AI Tolling system consists of several key components:

  • Video Input: Processes live camera feeds or video files from toll booth cameras

  • Object Detection: Uses YOLOv10s model to detect vehicles in the video stream

  • License Plate Recognition: Employs Intel’s specialized model to extract license plate text

  • Vehicle Attributes: Analyzes vehicle type, color, and other characteristics

  • Data Processing: Aggregates results for toll calculation and traffic monitoring

Set up and First Use#

1. Create the AI Tolling Application Directory#

Navigate to the metro vision AI recipe directory and create the AI tolling application by copying the Smart Parking template:

cd ~/metro/edge-ai-suites/metro-ai-suite/metro-vision-ai-app-recipe
cp -r smart-parking/ ai-tolling/

This creates a new ai-tolling directory with all the necessary application structure and configuration files.

2. Download Sample Video File#

Download a sample video file containing vehicle traffic for testing the AI tolling system:

mkdir -p ./ai-tolling/src/dlstreamer-pipeline-server/videos/
wget -O ./ai-tolling/src/dlstreamer-pipeline-server/videos/cars_extended.mp4 \
  https://github.com/open-edge-platform/edge-ai-resources/raw/refs/heads/main/videos/cars_extended.mp4
Video File Details

The sample video contains:

  • Multiple vehicles passing through a toll booth scenario

  • Various vehicle types (cars, trucks)

  • Clear license plate visibility for testing recognition accuracy

  • Duration: Approximately 5 minutes of footage

  • Resolution: 640x360

3. Download and Setup AI Models#

Create and run the model download script to install all required AI models:

docker run --rm --user=root \
  -e http_proxy -e https_proxy -e no_proxy \
  -v "$PWD:/home/dlstreamer/metro-suite" \
  intel/dlstreamer:2025.0.1.3-ubuntu24 bash -c "$(cat <<EOF

cd /home/dlstreamer/metro-suite/

mkdir -p ai-tolling/src/dlstreamer-pipeline-server/models/public
export MODELS_PATH=/home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models
/home/dlstreamer/dlstreamer/samples/download_public_models.sh yolov10s

mkdir -p ai-tolling/src/dlstreamer-pipeline-server/models/intel

python3 -m pip install openvino-dev[onnx,tensorflow2]

omz_downloader --name license-plate-recognition-barrier-0007 -o /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/
omz_converter --name license-plate-recognition-barrier-0007  -o /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/ -d /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/
wget -O "/home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/public/license-plate-recognition-barrier-0007/license-plate-recognition-barrier-0007.json" "https://raw.githubusercontent.com/dlstreamer/dlstreamer/refs/heads/master/samples/gstreamer/model_proc/intel/license-plate-recognition-barrier-0007.json"


omz_downloader --name vehicle-attributes-recognition-barrier-0039 -o /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/
omz_converter --name  vehicle-attributes-recognition-barrier-0039 -o /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/ -d /home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/
wget -O "/home/dlstreamer/metro-suite/ai-tolling/src/dlstreamer-pipeline-server/models/intel/vehicle-attributes-recognition-barrier-0039/vehicle-attributes-recognition-barrier-0039.json" "https://raw.githubusercontent.com/dlstreamer/dlstreamer/refs/heads/master/samples/gstreamer/model_proc/intel/vehicle-attributes-recognition-barrier-0039.json"

echo "Fix ownership..."
chown -R "$(id -u):$(id -g)" ai-tolling/src/dlstreamer-pipeline-server/models ai-tolling/src/dlstreamer-pipeline-server/videos 2>/dev/null || true
EOF
)"

The installation script downloads three essential AI models:

Model Name

Purpose

Framework

Size

YOLOv10s

Vehicle detection and tracking

PyTorch/OpenVINO

~20MB

license-plate-recognition-barrier-0007

License plate text extraction

Intel OpenVINO

~2MB

vehicle-attributes-recognition-barrier-0039

Vehicle type and color analysis

Intel OpenVINO

~1MB
Model Download Process Details

The installation script performs the following operations:

  1. Creates the required directory structure under src/dlstreamer-pipeline-server/models/

  2. Runs a DLStreamer container to access model download tools

  3. Downloads public YOLO models using the built-in download scripts

  4. Uses OpenVINO Model Zoo downloader for Intel-optimized models

  5. Downloads corresponding model configuration files for proper inference

  6. Sets up proper file permissions for container access

Expected download time: 5-10 minutes depending on internet connection.

4. Configure the AI Processing Pipeline#

Update the pipeline configuration to use the tolling-specific AI models. Create or update the configuration file:

cat > ./ai-tolling/src/dlstreamer-pipeline-server/config.json << 'EOF'
{
    "config": {
        "logging": {
            "C_LOG_LEVEL": "INFO",
            "PY_LOG_LEVEL": "INFO"
        },
        "cert_type": [
            "zmq"
        ],
        "pipelines": [
            {
                "name": "car_plate_recognition_1",
                "source": "gstreamer",
                "queue_maxsize": 50,
                "pipeline": "{auto_source} name=source ! decodebin ! gvadetect model=/home/pipeline-server/models/public/yolov10s/FP32/yolov10s.xml device=CPU pre-process-backend=ie ! queue ! gvaclassify model=/home/pipeline-server/models/public/license-plate-recognition-barrier-0007/FP16/license-plate-recognition-barrier-0007.xml model_proc=/home/pipeline-server/models/public/license-plate-recognition-barrier-0007/license-plate-recognition-barrier-0007.json device=CPU pre-process-backend=ie ! queue ! gvaclassify model=/home/pipeline-server/models/intel/vehicle-attributes-recognition-barrier-0039/FP16-INT8/vehicle-attributes-recognition-barrier-0039.xml model_proc=/home/pipeline-server/models/intel/vehicle-attributes-recognition-barrier-0039/vehicle-attributes-recognition-barrier-0039.json device=CPU pre-process-backend=ie ! queue ! gvawatermark ! gvametaconvert add-empty-results=true name=metaconvert ! gvafpscounter ! appsink name=destination",
                "description": "Car plate recognition with license-plate-recognition-barrier-0007",
                "parameters": {
                    "type": "object",
                    "properties": {
                        "detection-properties": {
                            "element": {
                                "name": "detection",
                                "format": "element-properties"
                            }
                        },
                        "detection-device": {
                            "element": {
                                "name": "detection",
                                "property": "device"
                            },
                            "type": "string",
                            "default": "{env[DETECTION_DEVICE]}"
                        }
                    }
                },
                "auto_start": false,
                "publish_frame": true
            }
        ]
    }
}
EOF
Pipeline Configuration Explanation

The GStreamer pipeline configuration defines the AI processing workflow:

  • Source: Accepts video input from files or live streams

  • Decode: Converts video format to raw frames for processing

  • gvadetect: Runs YOLO object detection to identify vehicles

  • gvaclassify (1st): Applies license plate recognition model to detected vehicles

  • gvaclassify (2nd): Analyzes vehicle attributes (type, color, etc.)

  • gvawatermark: Adds visual annotations to processed frames

  • gvametaconvert: Converts inference results to structured metadata

  • gvametapublish: Publishes results to external systems

  • gvafpscounter: Monitors processing performance

Each element can be configured for different hardware targets (CPU, GPU, VPU).

5. Configure Application Environment#

Update the environment configuration to use the AI tolling application:

# Update the .env file to specify the ai-tolling application and HOST IP Address
sed -i 's/^SAMPLE_APP=.*/SAMPLE_APP=ai-tolling/' .env
sed -i "s/^HOST_IP=.*/HOST_IP=$(hostname -I | cut -f1 -d' ')/" .env


# Create self signed certificate for nginx
mkdir -p ai-tolling/src/nginx/ssl
cd ai-tolling/src/nginx/ssl
if [ ! -f server.key ] || [ ! -f server.crt ]; then
    echo "Generate self-signed certificate..."
    openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout server.key -out server.crt -subj "/C=US/ST=CA/L=San Francisco/O=Intel/OU=Edge AI/CN=localhost"
    chown -R "$(id -u):$(id -g)" server.key server.crt 2>/dev/null || true

fi

cd ~/metro/edge-ai-suites/metro-ai-suite/metro-vision-ai-app-recipe

# Verify the configuration
grep SAMPLE_APP= .env
grep HOST_IP= .env

Expected output: SAMPLE_APP=ai-tolling

6. Deploy the Application#

Set up the Docker Compose configuration and start the application:

# Copy the compose file for deployment
cp compose-without-scenescape.yml docker-compose.yml

# Start all services in detached mode
docker compose up -d

The deployment process will:

  • Pull required container images

  • Start the DLStreamer pipeline server

  • Initialize the Node-RED flow management

  • Launch the Grafana dashboard

  • Set up the MQTT message broker

Validation and Expected Results#

1. Verify Service Status#

Check that all services are running correctly:

docker ps

Expected output should show containers for:

  • dlstreamer-pipeline-server

  • node-red

  • grafana

  • mosquitto (MQTT broker)

2. Access the Application Interface#

Open your web browser and navigate to:

  • Main Dashboard: https://localhost/grafana (Grafana)

    • Username: admin

    • Password: admin

  • Node-RED Flow Editor: https://localhost/nodered/

Update localhost to IP Address if you are accessing it remotely.

3. Test Video Processing#

Start the AI pipeline and process the sample video:

# Start the AI tolling pipeline with the sample video
curl -k -s https://localhost/api/pipelines/user_defined_pipelines/car_plate_recognition_1 -X POST -H 'Content-Type: application/json' -d '
{
    "source": {
        "uri": "file:///home/pipeline-server/videos/cars_extended.mp4",
        "type": "uri"
    },
    "destination": {
        "metadata": {
            "type": "mqtt",
            "topic": "object_detection_1",
            "timeout": 1000
        },
        "frame": {
            "type": "webrtc",
            "peer-id": "object_detection_1"
        }
    },
    "parameters": {
        "detection-device": "CPU"
    }
}'

4. View Live Video Stream#

Access the processed video stream with AI annotations through WebRTC:

# Open in your web browser (replace localhost with your actual IP address)
# For local testing, typically use localhost or 127.0.0.1
https://localhost/mediamtx/object_detection_1/

For local testing, you can use: https://localhost/mediamtx/object_detection_1/

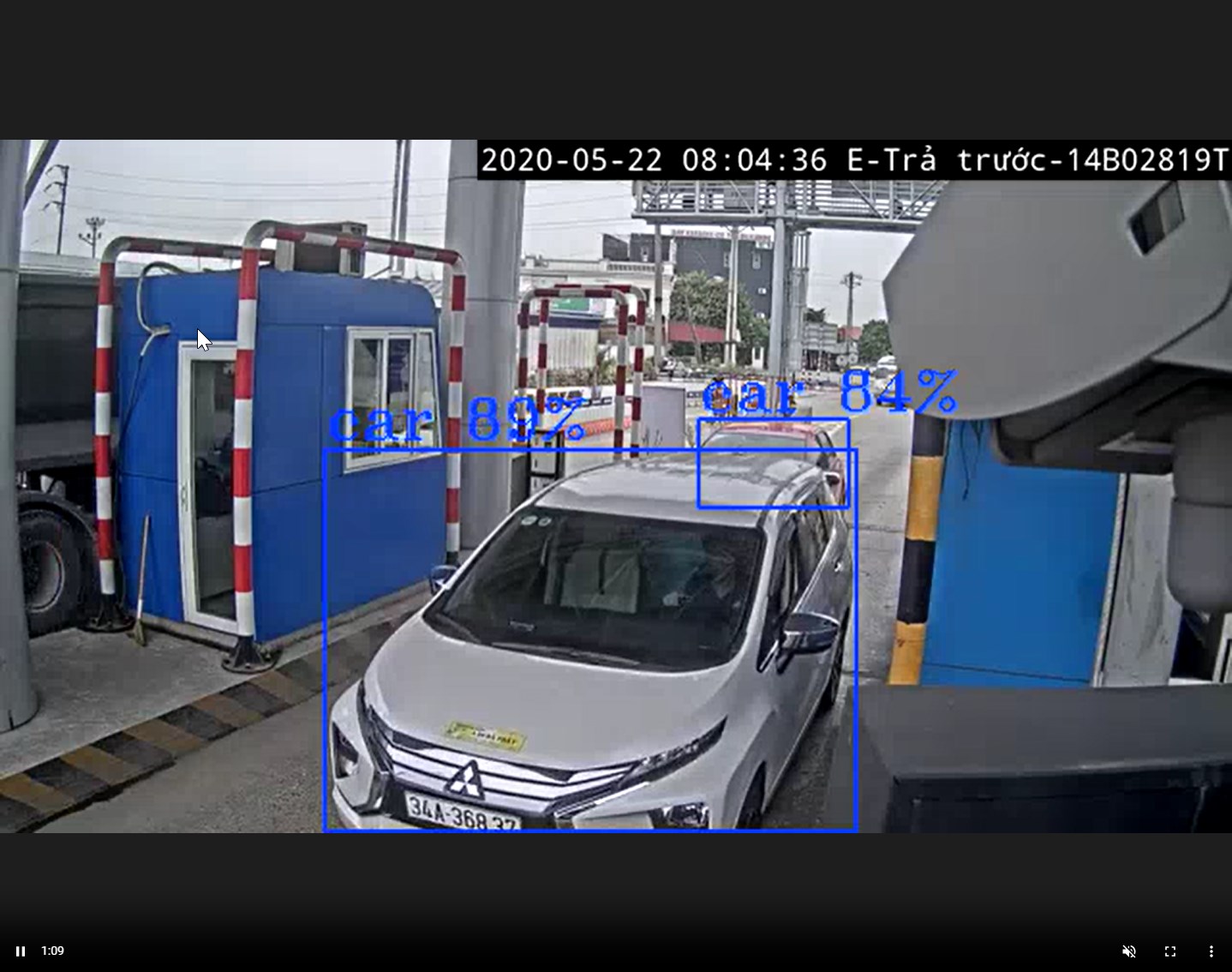

Vehicle Live Detection

Expected results:

  • Vehicle detection accuracy > 90%

  • License plate recognition for clearly visible plates

  • Vehicle attribute classification (car, truck, color)

  • Real-time processing at 15-30 FPS

  • Live video stream with bounding boxes and annotations

Troubleshooting#

1. Container Startup Issues#

If containers fail to start:

# Check container logs for specific errors
docker logs <container_name>

# Common issues:
# - Port conflicts: Ensure ports 3000, 1880, 8080 are available
# - Permission issues: Verify Docker permissions
# - Resource constraints: Check available memory and disk space

2. Model Download Failures#

If model download fails during installation:

# Retry the installation with verbose output
./install.sh 2>&1 | tee install.log

# Check for network connectivity issues
curl -I https://github.com/openvinotoolkit/open_model_zoo

# Verify disk space
df -h

3. Pipeline Processing Errors#

If video processing fails or shows poor accuracy:

# Check pipeline server logs
docker logs dlstreamer-pipeline-server

# Verify model files are properly installed
ls -la ./ai-tolling/src/dlstreamer-pipeline-server/models/

# Test with different video source
# Replace the video file with a different sample

4. Performance Issues#

For slow processing or high CPU usage:

  • Reduce video resolution: Use lower resolution input videos

  • Adjust inference device: Change from CPU to GPU if available

  • Optimize pipeline: Reduce queue sizes or disable unnecessary features

Next Steps#

After successfully setting up the AI Tolling system, consider these enhancements:

Integration with Node Red for enhancing business logic
