Metro Vision AI SDK - Tutorial 2#

This tutorial demonstrates advanced video processing capabilities using Intel’s hardware-accelerated video decoding and composition. You’ll learn to decode multiple video streams simultaneously and display them in a tiled layout on a 4K monitor using VAAPI (Video Acceleration API) and GStreamer.

Overview#

Multi-stream video processing is essential for applications like video surveillance, broadcasting, and media production. This tutorial showcases how Intel’s hardware acceleration can efficiently decode and composite 16 simultaneous video streams into a single 4K display output, demonstrating the power of Intel® Quick Sync Video technology.

Platform Compatibility This tutorial requires Intel® Core™ or Intel® Core™ Ultra processors with integrated graphics. Intel® Xeon® processors without integrated graphics are not supported for this specific use case.

Time to Complete#

Estimated Duration: 15-20 minutes

Learning Objectives#

Upon completion of this tutorial, you will be able to:

Configure hardware-accelerated video decoding with VAAPI
Create complex GStreamer pipelines for multi-stream processing
Implement tiled video composition for 4K display output
Monitor video decoding performance and frame rates
Understand Intel® Quick Sync Video acceleration benefits
Deploy containerized video processing applications

Prerequisites#

Before starting this tutorial, ensure you have:

Metro Vision AI SDK installed and configured
Intel® Core™ or Intel® Core™ Ultra processor with integrated graphics
4K monitor or display capable of 3840x2160 resolution
Docker installed and running on your system
X11 display server configured
Basic familiarity with GStreamer concepts

System Requirements#

Operating System: Ubuntu 22.04 LTS or Ubuntu 24.04 LTS
Processor: Intel® Core™ or Intel® Core™ Ultra with integrated graphics
Memory: Minimum 8GB RAM (16GB recommended for smooth performance)
Display: 4K monitor (3840x2160) or compatible display
Storage: 2GB free disk space for video files
Graphics: Intel integrated graphics with VAAPI support

Tutorial Steps#

Step 1: Create Working Directory and Download Video Content#

Create a dedicated workspace and download the sample video for multi-stream processing:

# Create working directory structure
mkdir -p ~/metro/metro-vision-tutorial-2/videos/
cd ~/metro/metro-vision-tutorial-2

# Download Big Buck Bunny sample video (Creative Commons licensed)
wget -O videos/Big_Buck_Bunny.mp4 "https://archive.org/download/BigBuckBunny_124/Content/big_buck_bunny_720p_surround.mp4"

Step 2: Create Multi-Stream Video Processing Script#

Create a GStreamer pipeline script that will decode and compose 16 video streams into a 4x4 tiled display:

# Create the decode script
cat > decode.sh << 'EOF'
#!/bin/bash

# Video input file path
VIDEO_IN=videos/Big_Buck_Bunny.mp4

# Verify video file exists
if [ ! -f "$VIDEO_IN" ]; then
    echo "Error: Video file $VIDEO_IN not found!"
    exit 1
fi

echo "Starting 4x4 tiled video decode pipeline..."
echo "Video source: $VIDEO_IN"
echo "Target resolution: 3840x2160 (4K)"
echo "Individual tile size: 960x540"

# GStreamer pipeline for 4x4 tiled video composition
gst-launch-1.0 \
    vacompositor name=comp0 \
        sink_1::xpos=0    sink_1::ypos=0    sink_1::alpha=1 \
        sink_2::xpos=960  sink_2::ypos=0    sink_2::alpha=1 \
        sink_3::xpos=1920 sink_3::ypos=0    sink_3::alpha=1 \
        sink_4::xpos=2880 sink_4::ypos=0    sink_4::alpha=1 \
        sink_5::xpos=0    sink_5::ypos=540  sink_5::alpha=1 \
        sink_6::xpos=960  sink_6::ypos=540  sink_6::alpha=1 \
        sink_7::xpos=1920 sink_7::ypos=540  sink_7::alpha=1 \
        sink_8::xpos=2880 sink_8::ypos=540  sink_8::alpha=1 \
        sink_9::xpos=0    sink_9::ypos=1080 sink_9::alpha=1 \
        sink_10::xpos=960 sink_10::ypos=1080 sink_10::alpha=1 \
        sink_11::xpos=1920 sink_11::ypos=1080 sink_11::alpha=1 \
        sink_12::xpos=2880 sink_12::ypos=1080 sink_12::alpha=1 \
        sink_13::xpos=0    sink_13::ypos=1620 sink_13::alpha=1 \
        sink_14::xpos=960  sink_14::ypos=1620 sink_14::alpha=1 \
        sink_15::xpos=1920 sink_15::ypos=1620 sink_15::alpha=1 \
        sink_16::xpos=2880 sink_16::ypos=1620 sink_16::alpha=1 \
    ! vapostproc ! xvimagesink display=:0 sync=false \
\
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_1 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_2 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_3 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_4 \
\
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_5 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_6 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_7 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_8 \
\
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_9 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_10 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_11 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_12 \
\
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_13 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_14 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_15 \
    filesrc location=${VIDEO_IN} ! qtdemux ! vah264dec ! gvafpscounter ! vapostproc scale-method=fast ! video/x-raw,width=960,height=540 ! comp0.sink_16

EOF

Understanding the GStreamer Pipeline#

The script creates a complex pipeline with these key components:

Pipeline Architecture:

Input Sources: 16 identical video file streams
Decoder: vah264dec - Hardware-accelerated H.264 decoding using VAAPI
Scaling: vapostproc - Hardware-accelerated video post-processing and scaling
Composition: vacompositor - Hardware-accelerated video composition
Output: xvimagesink - X11-based video display

Tiled Layout Configuration:

┌─────────┬─────────┬─────────┬─────────┐
│ Stream1 │ Stream2 │ Stream3 │ Stream4 │  ← Row 1 (y=0)
│  0,0    │ 960,0   │1920,0   │2880,0   │
├─────────┼─────────┼─────────┼─────────┤
│ Stream5 │ Stream6 │ Stream7 │ Stream8 │  ← Row 2 (y=540)
│  0,540  │ 960,540 │1920,540 │2880,540 │
├─────────┼─────────┼─────────┼─────────┤
│ Stream9 │Stream10 │Stream11 │Stream12 │  ← Row 3 (y=1080)
│ 0,1080  │960,1080 │1920,1080│2880,1080│
├─────────┼─────────┼─────────┼─────────┤
│Stream13 │Stream14 │Stream15 │Stream16 │  ← Row 4 (y=1620)
│ 0,1620  │960,1620 │1920,1620│2880,1620│
└─────────┴─────────┴─────────┴─────────┘

Performance Optimizations:

VAAPI Acceleration: Hardware-accelerated decoding, scaling, and composition
Fast Scaling: scale-method=fast for optimal performance
Async Display: sync=false to prevent frame dropping

Step 3: Prepare Environment and Permissions#

Configure the execution environment for the containerized video processing:

# Make the script executable
chmod +x decode.sh

# Enable X11 forwarding for Docker containers
xhost +local:docker

# Verify GPU device availability
ls -la /dev/dri/

# Check Intel GPU support
vainfo --display drm --device /dev/dri/renderD128

Step 4: Execute Multi-Stream Video Processing#

Launch the containerized multi-stream decode and composition pipeline:

# Set up GPU device access
export DEVICE=/dev/dri/renderD128
export DEVICE_GRP=$(ls -g $DEVICE | awk '{print $3}' | xargs getent group | awk -F: '{print $3}')

# Execute the multi-stream video processing
docker run -it --rm --net=host \
  -e no_proxy=$no_proxy \
  -e https_proxy=$https_proxy \
  -e socks_proxy=$socks_proxy \
  -e http_proxy=$http_proxy \
  -v /tmp/.X11-unix:/tmp/.X11-unix:rw \
  --device /dev/dri --group-add ${DEVICE_GRP} \
  -e DISPLAY=$DISPLAY \
  -v $HOME/.Xauthority:/home/dlstreamer/.Xauthority:ro \
  -v $PWD/videos:/home/dlstreamer/videos:ro \
  -v $PWD/decode.sh:/home/dlstreamer/decode.sh:ro \
  intel/dlstreamer:2025.1.2-ubuntu24 \
  /home/dlstreamer/decode.sh

Step 5: Monitor Performance and Results#

The application will display a 4x4 tiled video composition on your 4K monitor. You should see:

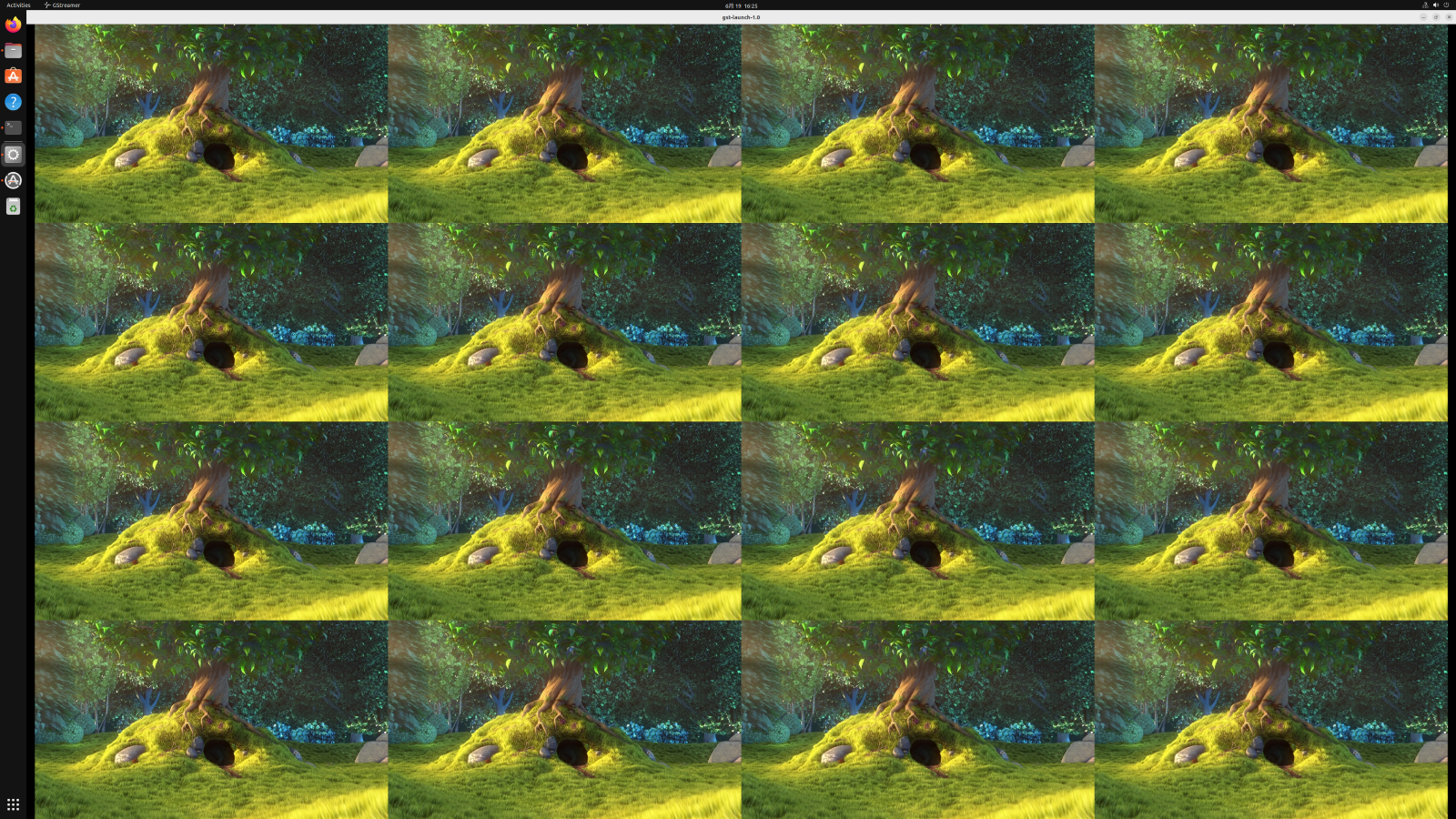

4x4 Video Streaming Result

Performance Monitoring: Monitor system resources during playback:

# In a separate terminal, monitor GPU utilization
sudo intel_gpu_top

# Monitor CPU and memory usage
htop

Step 6: Stop the Application#

To stop the video processing pipeline:

# Press Ctrl+C in the terminal running the Docker container
# Or use Docker commands to stop
docker ps  # Find the container ID
docker stop <container_id>

Clean up the environment:

# Restore X11 security (optional)
xhost -local:docker

# Clean up any temporary files
docker system prune -f

Understanding the Technology#

Intel® Quick Sync Video Technology#

This tutorial leverages Intel’s hardware-accelerated video processing capabilities:

Hardware Acceleration Benefits:

Dedicated Video Engines: Separate silicon for video decode/encode operations
CPU Offloading: Frees CPU resources for other computational tasks
Power Efficiency: Lower power consumption compared to software decoding
Parallel Processing: Multiple decode engines can process streams simultaneously

VAAPI Integration#

Video Acceleration API (VAAPI) provides:

Hardware Abstraction: Unified interface across Intel graphics generations
Pipeline Optimization: Direct GPU memory access without CPU copies
Format Support: Hardware acceleration for H.264, H.265, VP9, and AV1 codecs
Scaling Operations: Hardware-accelerated resize and format conversion

GStreamer Pipeline Architecture#

The tutorial demonstrates advanced GStreamer concepts:

Element Types:

Source Elements: filesrc - File input
Demuxer Elements: qtdemux - Container format parsing
Decoder Elements: vah264dec - Hardware-accelerated decoding
Transform Elements: vapostproc - Hardware scaling and format conversion
Compositor Elements: vacompositor - Multi-stream composition
Sink Elements: xvimagesink - Display output

Pipeline Benefits:

Zero-Copy Operations: Direct GPU memory transfers
Parallel Processing: Concurrent decode of multiple streams
Dynamic Reconfiguration: Runtime pipeline modifications
Error Recovery: Robust handling of stream issues
