View Open Telemetry Data

DL Streamer Pipeline Server supports gathering metrics over Open Telemetry. The supported metrics currently are:

• cpu_usage_percentage: Tracks CPU usage percentage of DL Streamer Pipeline Server python process

• memory_usage_bytes: Tracks memory usage in bytes of DL Streamer Pipeline Server python process

• fps_per_pipeline: Tracks FPS for each active pipeline instance in DL Streamer Pipeline Server

Visualizing metrics in Prometheus

For Docker

Open https://<HOST_IP>/prometheus/ in your browser to view the prometheus console

For Helm

Open http://<HOST_IP>:30443/prometheus/ in your browser to view the prometheus console

Try Out the Following Queries

• cpu_usage_percentage

• memory_usage_bytes

• fps_per_pipeline{}

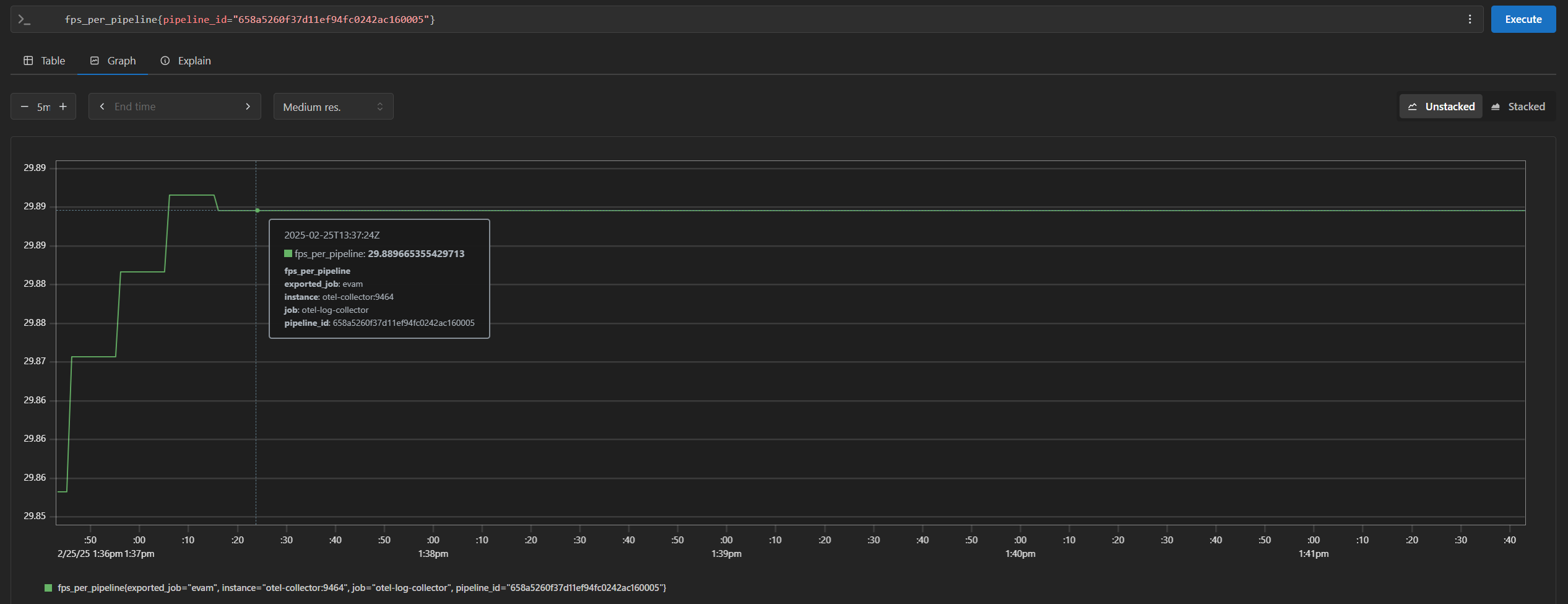

  • If you are starting multiple pipelines, then it can also be queried per pipeline ID. Example: fps_per_pipeline{pipeline_id="658a5260f37d11ef94fc0242ac160005"}
