Install the Autonomous Mobile Robot on Jackal Robot’s Onboard Computer#

This section shows how to install the Autonomous Mobile Robot with the ROS 2 middleware and the Clearpath Robotics ecosystem, on the Clearpath Robotics Jackal robot’s onboard computer.

The Jackal robot is equipped with an onboard computer that has a pre-installed Canonical Ubuntu 22.04 LTS OS, ROS 2 Humble distribution, and the Clearpath Robotics software packages.

Intel recommends using the pre-installed software for the initial bring-up of your Jackal robot. During the initial bring-up, you must update the firmware of the MCU; see the Robot Installation page of the Clearpath Robotics documentation.

Intel recommends creating a backup of the default software installation or replace the pre-installed SATA M.2 SSD with an empty storage device, before continuing with the next steps.

Install ROS 2 Humble Distribution and Autonomous Mobile Robot#

To install the ROS 2 Humble distribution and the Autonomous Mobile Robot on the Clearpath Robotics Jackal robot, see the GSG Robot Guide` of the Autonomous Mobile Robot.
Create an account with the username administratorwhen installing the Canonical Ubuntu OS, or create and set its group membership as follows:
```
sudo adduser administrator
sudo usermod -a -G sudo administrator
```

Install the Clearpath Robotics Software Packages#

Install the ROS 2 development tools, which comprises the compilers and other tools to build ROS 2 packages. See the official ROS 2 Installation Instructions:
```
sudo apt-get install ros-dev-tools
```

Install the Clearpath Robotics Software Packages.#

See the Package Install section of the Clearpath Robotics documentation. You can install the software through one of these methods:

Option 1: Install Script, which uses an automated installer.
Option 2: Manual Source Install, which provides detailed instructions on how to install the software with a higher flexibility.

Create Your Robot Configuration#

This section shows how to create the robot.yaml configuration file for your Jackal robot with the Intel® RealSense™ camera D435i. Ensure to complete the Install the Clearpath Robotics Software Packages steps.

Identify the Serial Number of your Intel® RealSense™ Camera#

You need to include the serial number of the Intel® RealSense™ camera to the robot.yaml file.

Note: Do not run lsusb -v to get the serial number because the serial number displayed might differ from the true serial number.

To get the serial number, connect the camera to the onboard computer of the Jackal robot and run:

ros2 launch realsense2_camera rs_launch.py

The output of this command will print the serial number. The serial number of the camera in the example below is 207522xxxx38 (some digits are masked here to preserve confidentiality).

[realsense2_camera_node-1] [INFO] [1709051840.999128954] [camera.camera]: RealSense ROS v4.54.1
[realsense2_camera_node-1] [INFO] [1709051840.999193090] [camera.camera]: Built with LibRealSense v2.55.0
[realsense2_camera_node-1] [INFO] [1709051840.999200850] [camera.camera]: Running with LibRealSense v2.55.0
[realsense2_camera_node-1] [INFO] [1709051841.005234011] [camera.camera]: Device with serial number 207522xxxx38 was found.

Stop the command by pressing Ctrl-c.

Create your Robot YAML File#

To configure the robot.yaml file for your Jackal robot, see the Robot YAML Overview section of the Clearpath Robotics documentation.
You can use the example configuration j100_sample.yaml in the Clearpath Robotics configuration repository:

Edit the serial_number and system sections in the j100_sample.yaml file as follows:
- Change the serial_number to the serial number of your robot, for example j100-1234.
- In the system/hosts section, change the hostname to the hostname of the onboard computer of your Jackal robot.
- In the system/hosts section, change the ip address to the IP address of your Jackal robot, either a static address or a dynamic address that is assigned by the router of your network.
- In the system/ros2 section, change the namespace string. While the Clearpath Robotics default configuration usually defines a namespace for the ROS 2 topics, Intel recommends using an empty namespace as used in the Autonomous Mobile Robot tutorials. An empty namespace is indicated by a slash character: namespace: /
- In the system/ros2 section, add the domain_id entry and set it to a value that does not conflict with the ROS_DOMAIN_ID of other ROS 2 installations in your neighborhood. The value that you use here will be propagated into the /etc/clearpath/setup.bash script, whose execution has been added to your ~/.basrc script when you executed one of the installation options in the Install section. TheROS_DOMAIN_ID environment variable will be set to the value you defined here.
- If you have used the manual installation option in the Install Clearpath Software Packages section, add the workspaces entry to the system/ros2 section. This entry provides a list of setup scripts that need to be sourced. Provide the path to the setup.bash script of the workspace that was created when you executed the steps in the Option 2: Manual Source Install section. The path of this script is /home/administrator/clearpath_ws/install/setup.bash
Details on these configuration entries are provided on the System section of the Clearpath Robotics documentation. As an example, the following listing shows the first sections of therobot.yaml file:
serial_number: j100-1234 version: 0 system: hosts: - hostname: jackal-cfls-01 ip: 192.168.1.78 ros2: namespace: / domain_id: 68 workspaces: - /home/administrator/clearpath_ws/install/setup.bash platform: ...
Copy the robot.yaml file to the /etc/clearpath/ folder on the onboard computer of your Jackal robot.
If your ~/.bashrc script defines a ROS_DOMAIN_ID environment variable, remove this definition. This variable will be set by the /etc/clearpath/setup.bash script according to the domain_id value that you have defined in the robot.yaml file.

After you have installed the Clearpath Robotics software packages and configured your robot.yaml file, you can run ros2 node list and ros2 topic list to verify that the Clearpath Robotics services have started the Jackal-specific ROS 2 nodes, so that the related ROS 2 topics are published.

Add your Intel® RealSense™ Camera D435i to the Robot YAML File#

You need to define a camera in the sensors section of your robot.yaml file.

The Sensors/Cameras section of the Clearpath Robotics documentation shows an example of the data structure that defines an Intel® RealSense™ camera instance.

Intel recommends adding the following camera configuration as the first device in the sensors section. This configuration has been tested with the Autonomous Mobile Robot:
sensors: camera: - model: intel_realsense urdf_enabled: true launch_enabled: true parent: base_link xyz: [0.21, 0.0, 0.19] rpy: [0.0, 0.0, 0.0] ros_parameters: camera: camera_name: camera_0 device_type: d435i serial_no: "207522xxxx38" enable_color: true rgb_camera.profile: 640,480,30 enable_depth: true depth_module.profile: 640,480,30 pointcloud.enable: true enable_infra1: true align_depth.enable: true enable_sync: true initial_reset: true
In comparison to the example data structure in the Clearpath Robotics documentation, the following items were changed:

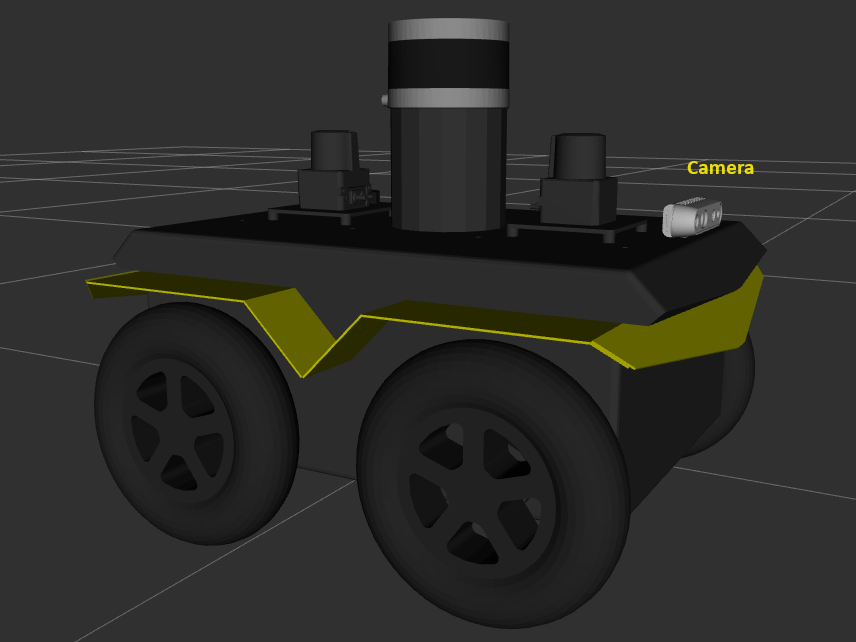

- The xyz position of the camera joint, relative to the base_link has been set to [0.21, 0.0, 0.19]. This means that the camera sits above the front fender of the Jackal robot as shown in the following figure:

  This figure is rendered through the rviz2 tool using the TF data published by the Clearpath Robotics services running on the robot.
- The device_type has been set to d435i.
- The serial_no has been replaced with the actual serial number of the camera, which can be identified as described in the Identify Intel RealSense Camera Serial Number section.
- The following features have been enabled: enable_infra1, align_depth.enable, enable_sync, and initial_reset.
Copy the robot.yaml file to the /etc/clearpath/ folder on the onboard computer of your Jackal robot.
Reboot the robot to propagate the new configuration.

Verify the Robot Configuration#

Verify the Frames of the TF2 Tree#

If not already installed, install the ROS2 TF2 Tools:

Jazzy

sudo apt install ros-jazzy-tf2-tools

Humble

sudo apt install ros-humble-tf2-tools

Verify that the robot state publisher communicates the correct TF2 tree:
```
ros2 run tf2_tools view_frames
```

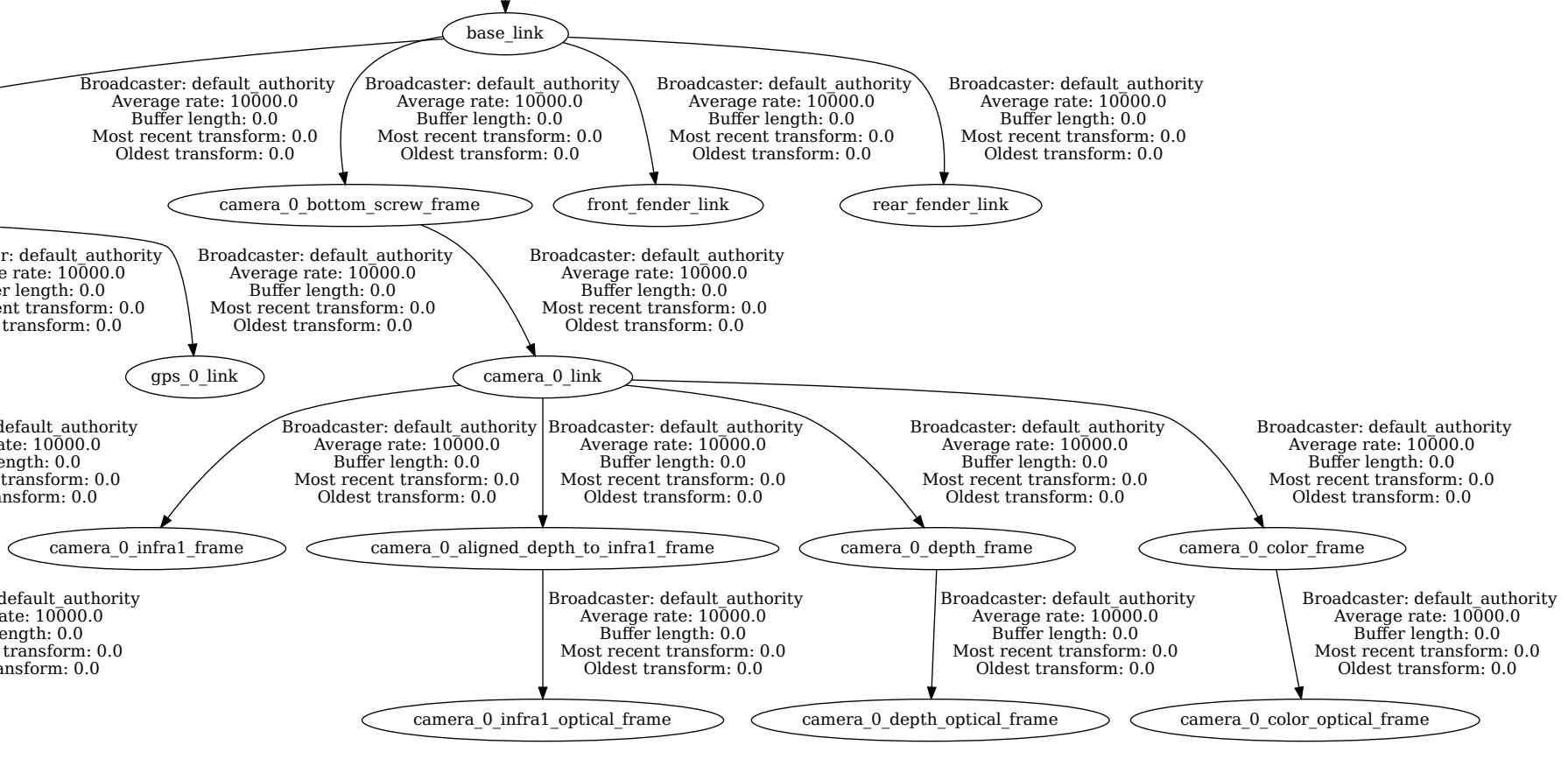

This command listens to the frames that are broadcast over the ROS 2 middleware, and generates a PDF file that shows how the robot’s frames are connected. Open the PDF file and verify that the TF2 tree contains the camera_0_link and its children, as shown in the following figures:

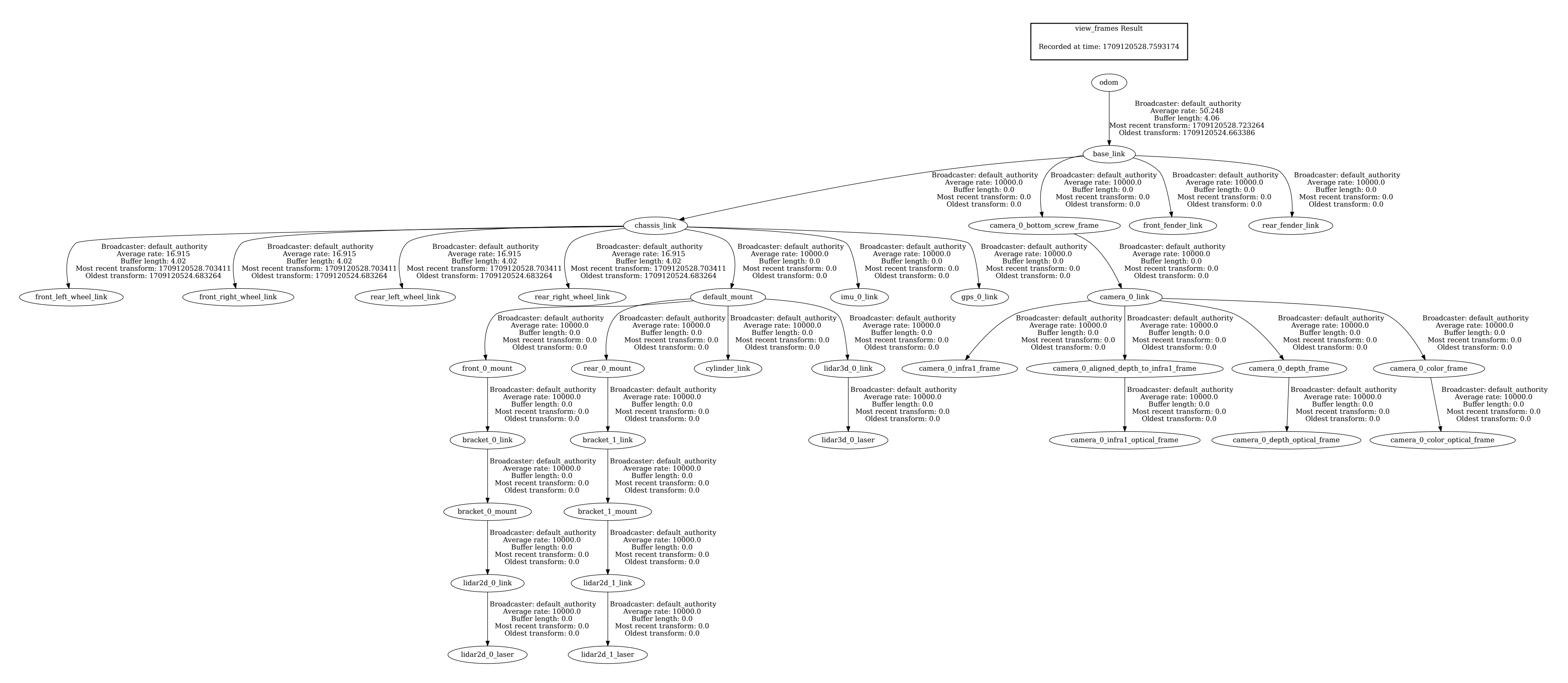

Complete TF2 tree of the Jackal robot with Intel® RealSense™ camera. To increase the figure, right-click on the image and open the image in a new browser tab. The following figure shows the TF2 tree of the Jackal robot, with a detailed view on the camera_0_link:

Verify the ROS 2 Topics#

Run
```
ros2 topic list
```

Verify that the required ROS 2 topics are published:

Note: The names of the camera-related topics depend on the version of the ros-humble-realsense2-camera package on your system. The following list was created on a system with package version 4.55.

/cmd_vel
/diagnostics
/diagnostics_agg
/diagnostics_toplevel_state
/joint_state_broadcaster/transition_event
/joy_teleop/cmd_vel
/joy_teleop/joy
/joy_teleop/joy/set_feedback
/parameter_events
/platform/bms/state
/platform/cmd_vel_unstamped
/platform/dynamic_joint_states
/platform/emergency_stop
/platform/joint_states
/platform/mcu/status
/platform/mcu/status/power
/platform/mcu/status/stop
/platform/motors/cmd_drive
/platform/motors/feedback
/platform/odom
/platform/odom/filtered
/platform/wifi_connected
/platform/wifi_status
/platform_velocity_controller/transition_event
/rc_teleop/cmd_vel
/robot_description
/rosout
/sensors/camera_0/camera/aligned_depth_to_color/camera_info
/sensors/camera_0/camera/aligned_depth_to_color/image_raw
/sensors/camera_0/camera/aligned_depth_to_color/image_raw/compressed
/sensors/camera_0/camera/aligned_depth_to_color/image_raw/compressedDepth
/sensors/camera_0/camera/aligned_depth_to_color/image_raw/theora
/sensors/camera_0/camera/aligned_depth_to_infra1/camera_info
/sensors/camera_0/camera/aligned_depth_to_infra1/image_raw
/sensors/camera_0/camera/aligned_depth_to_infra1/image_raw/compressed
/sensors/camera_0/camera/aligned_depth_to_infra1/image_raw/compressedDepth
/sensors/camera_0/camera/aligned_depth_to_infra1/image_raw/theora
/sensors/camera_0/camera/color/camera_info
/sensors/camera_0/camera/color/image_raw
/sensors/camera_0/camera/color/image_raw/compressed
/sensors/camera_0/camera/color/image_raw/compressedDepth
/sensors/camera_0/camera/color/image_raw/theora
/sensors/camera_0/camera/color/metadata
/sensors/camera_0/camera/depth/camera_info
/sensors/camera_0/camera/depth/color/points
/sensors/camera_0/camera/depth/image_rect_raw
/sensors/camera_0/camera/depth/image_rect_raw/compressed
/sensors/camera_0/camera/depth/image_rect_raw/compressedDepth
/sensors/camera_0/camera/depth/image_rect_raw/theora
/sensors/camera_0/camera/depth/metadata
/sensors/camera_0/camera/extrinsics/depth_to_color
/sensors/camera_0/camera/extrinsics/depth_to_infra1
/sensors/camera_0/camera/infra1/camera_info
/sensors/camera_0/camera/infra1/image_rect_raw
/sensors/camera_0/camera/infra1/image_rect_raw/compressed
/sensors/camera_0/camera/infra1/image_rect_raw/compressedDepth
/sensors/camera_0/camera/infra1/image_rect_raw/theora
/sensors/camera_0/camera/infra1/metadata
/sensors/camera_0/color/image
/sensors/camera_0/depth/image
/sensors/camera_0/points
/sensors/gps_0/nmea_sentence
/sensors/imu_0/data
/sensors/imu_0/data_raw
/sensors/imu_0/magnetic_field
/sensors/lidar2d_0/diagnostics
/sensors/lidar2d_0/laser_status
/sensors/lidar2d_0/scan
/sensors/lidar2d_1/diagnostics
/sensors/lidar2d_1/laser_status
/sensors/lidar2d_1/scan
/sensors/lidar3d_0/diagnostics
/sensors/lidar3d_0/points
/sensors/lidar3d_0/scan
/sensors/lidar3d_0/velodyne_packets
/sensors/lidar3d_0/velodyne_points
/set_pose
/tf
/tf_static
/twist_marker_server/cmd_vel
/twist_marker_server/feedback
/twist_marker_server/update

To see the installed package version on your board, run:
Jazzy
apt show ros-jazzy-realsense2-camera
Humble
apt show ros-humble-realsense2-camera
The following table shows how the names of the camera-related topics depend on the package version.

Jazzy

Version of ros-jazzy-realsense2-camera

Camera-related topics start with

4.55

/sensors/camera_0/camera/

4.54

/sensors/camera_0/

Humble

Version of ros-humble-realsense2-camera

Camera-related topics start with

4.55

/sensors/camera_0/camera/

4.54

/sensors/camera_0/

Jackal Troubleshooting#

If the output of the ros2 topic list command does not show any topics, verify that you are logged in as the administrator and check that the ROS_DOMAIN_ID environment variable contains the value that is defined in your /etc/clearpath/robot.yaml file under the system/ros2/domain_id entry.

If the output of the ros2 topic list command shows some missing ROS 2 topics (see the verify ROS topics section for a list of topics), there might be an issue with your installation of the Clearpath Robotics services.

In this case, check whether the required services are up and running. These services are responsible for parsing the robot.yaml file and for starting the required ROS 2 nodes:

sudo systemctl status clearpath-platform.service clearpath-sensors.service clearpath-robot.service

If any of these services are not active (running), check whether the systemd journal shows any error messages:

sudo journalctl -b | grep clearpath
