Deploy vLLM Service

This guide explains how to deploy the multimodal sample app with the vLLM service enabled using the Makefile targets.

System Requirements

Component	Minimum Requirement
Operating System	Ubuntu 24.04 LTS or later
Hardware	Intel® Core™ Ultra Platform (PTL) or newer

Prerequisites

1. Ensure .env is configured and includes valid values for:

   • HOST_IP

   • INFLUXDB_USERNAME, INFLUXDB_PASSWORD

   • VISUALIZER_GRAFANA_USER, VISUALIZER_GRAFANA_PASSWORD

   • MTX_WEBRTCICESERVERS2_0_USERNAME, MTX_WEBRTCICESERVERS2_0_PASSWORD

   • S3_STORAGE_USERNAME, S3_STORAGE_PASSWORD

Download Models

Download Qwen3.5 2B model and Qwen 3.5 2B fine tuned LoRA adapter

Please review and accept the Qwen3.5 2B license before downloading.

The LoRA adapter was specifically trained on a subset of the Intel Robotic Welding Multimodal Dataset and may not generalize to generic weld datasets.

mkdir -p configs/vllm/huggingface configs/vllm/models && \
cd configs/vllm/ && \
rm -rf .modelenv && \
python3 -m venv .modelenv && \
source .modelenv/bin/activate && \
pip3 install huggingface_hub==1.23.0 && \
rm -rf huggingface models && \
hf download Qwen/Qwen3.5-2B \
    --local-dir ./huggingface/Qwen3.5-2B && \
hf download Intel/qwen3.5-2b-vlm-weld-explainability-lora \
    --local-dir ./models/qwen3.5-2b-vlm-weld-explainability-lora && \
deactivate && \
cd ../..

Deploy the vLLM Service

Note: vLLM preallocates GPU-addressable memory up to the limit specified by VLLM_GPU_MEMORY_UTILIZATION (VRAM on dGPU, shared system memory on iGPU). Since the optimal value varies between platforms, update VLLM_GPU_MEMORY_UTILIZATION in the .env file to match your target hardware.

Run:

 cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
 make up_vllm

For a fresh build before deployment:

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make build
make up_vllm

Verify the Deployment

1. Check overall stack health:

   Note: The command make status may show errors in containers like ia-grafana when the user has not logged in for the first login OR due to session timeout. Just login again in Grafana and functionality wise if things are working, then ignore user token not found errors along with other minor errors which may show up in Grafana logs.

   cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
   make status


2. Confirm the vLLM container is running:

   docker ps --filter "name=vllm-server"


3. Inspect vLLM logs:

   docker logs -f vllm-server


4. Check the output in Grafana.

   • Use the link https://localhost :3000 to open Grafana in a browser (preferably Chrome).

   Note: Use the link https://localhost :30001 to open Grafana in a browser (preferably Chrome) for the Helm deployment.

   • Log in to Grafana using the values set for VISUALIZER_GRAFANA_USER and VISUALIZER_GRAFANA_PASSWORD in the .env file, then select Multimodal Weld Defect Detection Explainability Dashboard.



   • After logging in, click Dashboard.

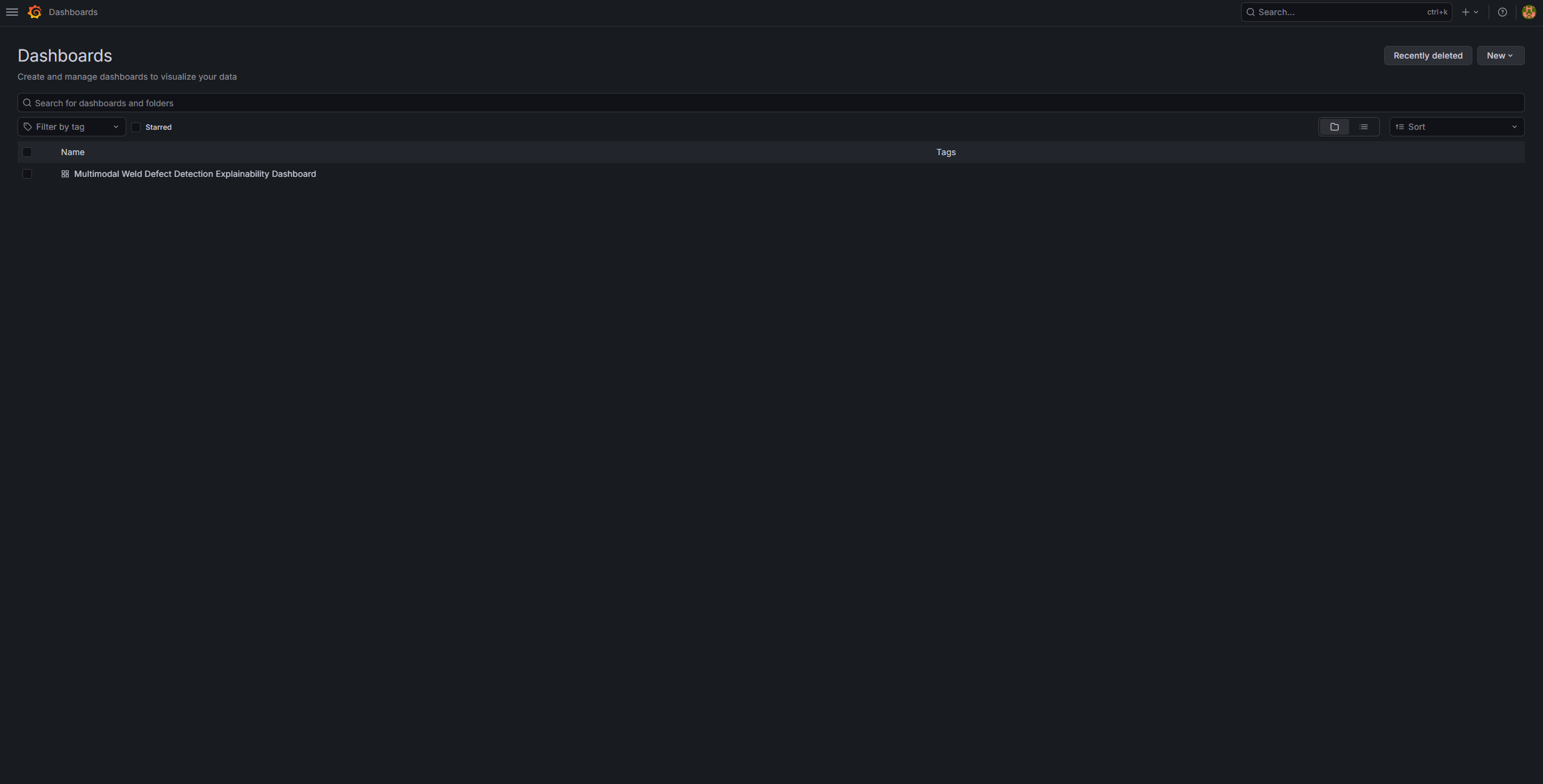

   • Select Multimodal Weld Defect Detection Explainability Dashboard.

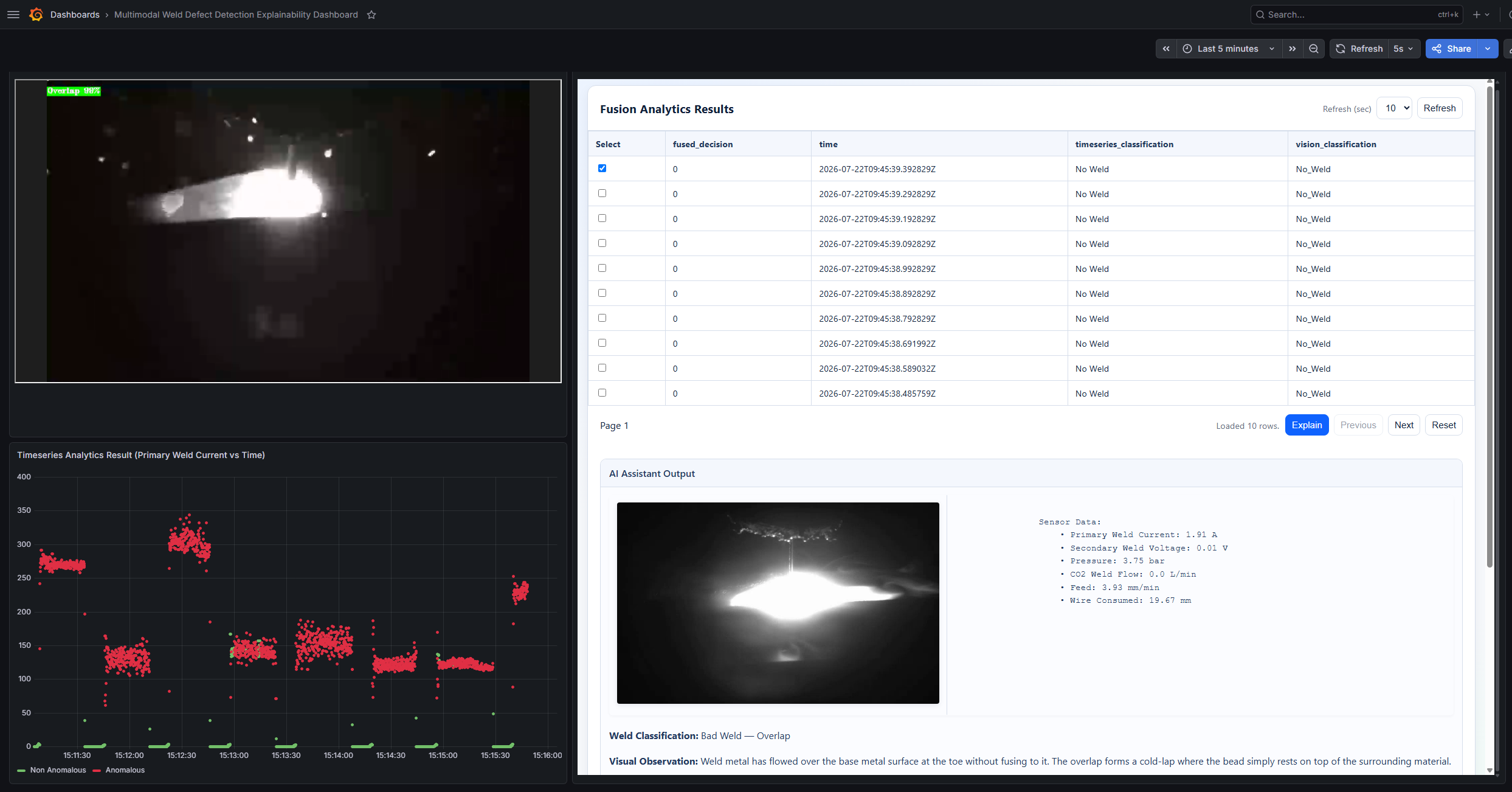

   • You should see the following output:



Stop the Deployment

To bring down the full stack:

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make down

Troubleshooting

• vllm-server startup delay after deployment The vllm-server service can take about 10 minutes to fully come up after make up_vllm. This is expected while the model is initialized and loaded into memory.

• Error: configs/vllm/models directory does not exist. Create the directory and place the required model artifacts in it.

• Error: configs/vllm/models directory is empty. Add model files/checkpoints before running make up_vllm.

• HOST_IP is not set or HOST_IP is not a valid IPv4 address format. Update HOST_IP in .env with a valid IPv4 address.

• Username/password validation failures from check_env_variables Update .env values so they match the Makefile validation rules.
