Image Sets#

Upload Image sets#

To use images as pipeline input, you must first upload them to the server.

From the left-side menu, choose Images to open the image management page. This page lists images grouped into directories called Image Sets.

The application does not provide any default images, so the list is empty initially.

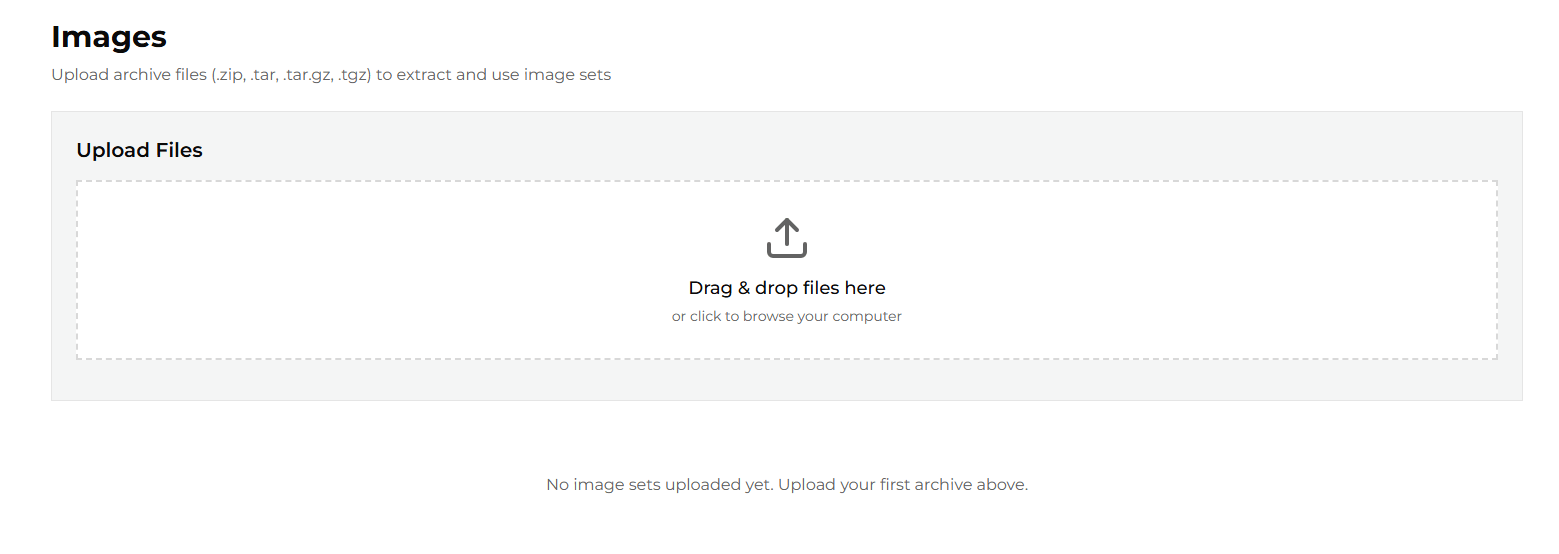

Image Uploader

You can use the uploader to add your own image sets. The uploader accepts packages in any of the following formats:

  • .zip

  • .tar

  • .tar.gz

  • .tgz

All images in a package must have the same dimensions and extension. The maximum allowed package size is 2 GB.

After upload, the images are extracted into a directory named after the package file (without its extension). This directory name is then used as the Image Set name when selecting images as pipeline input.

Note: During upload, images are processed in alphabetical order and then renamed to the <file_name>_<NNNN>.<ext> pattern.

To preview images in a set, click the set name.

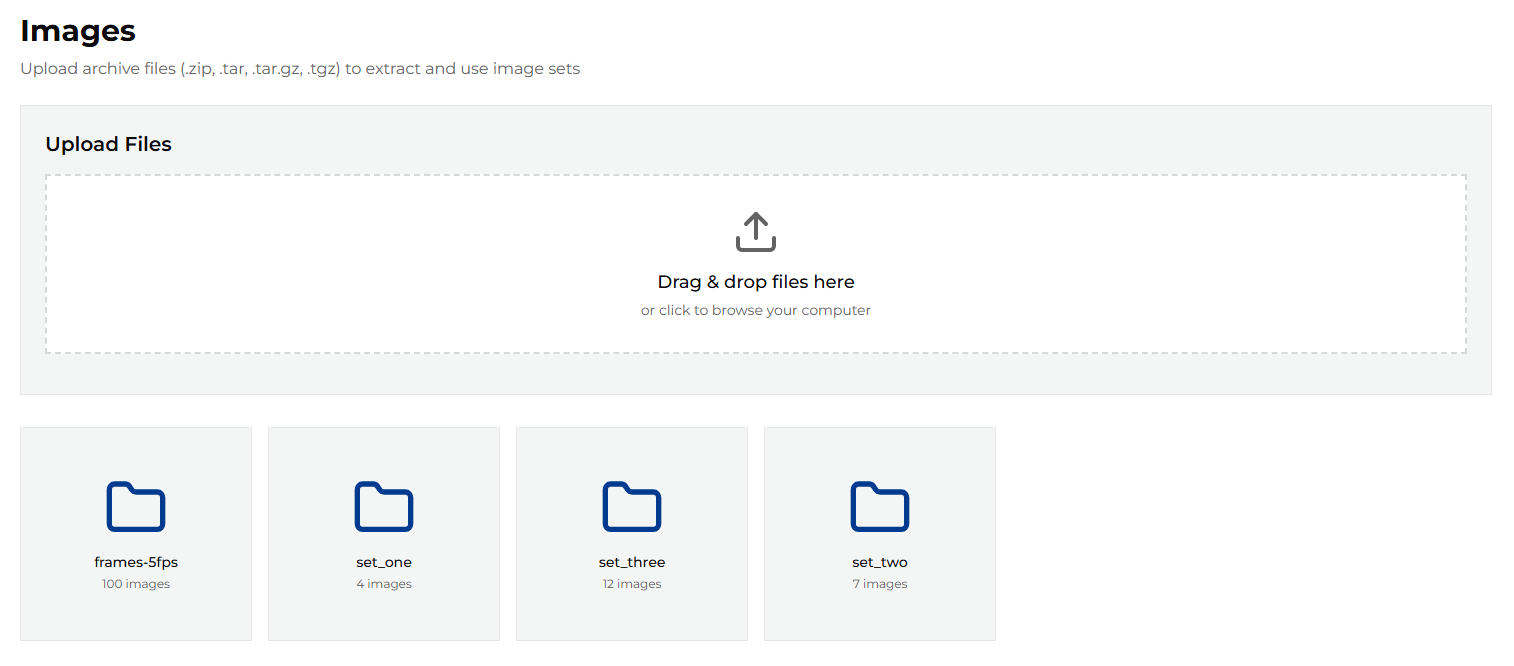

Image Sets

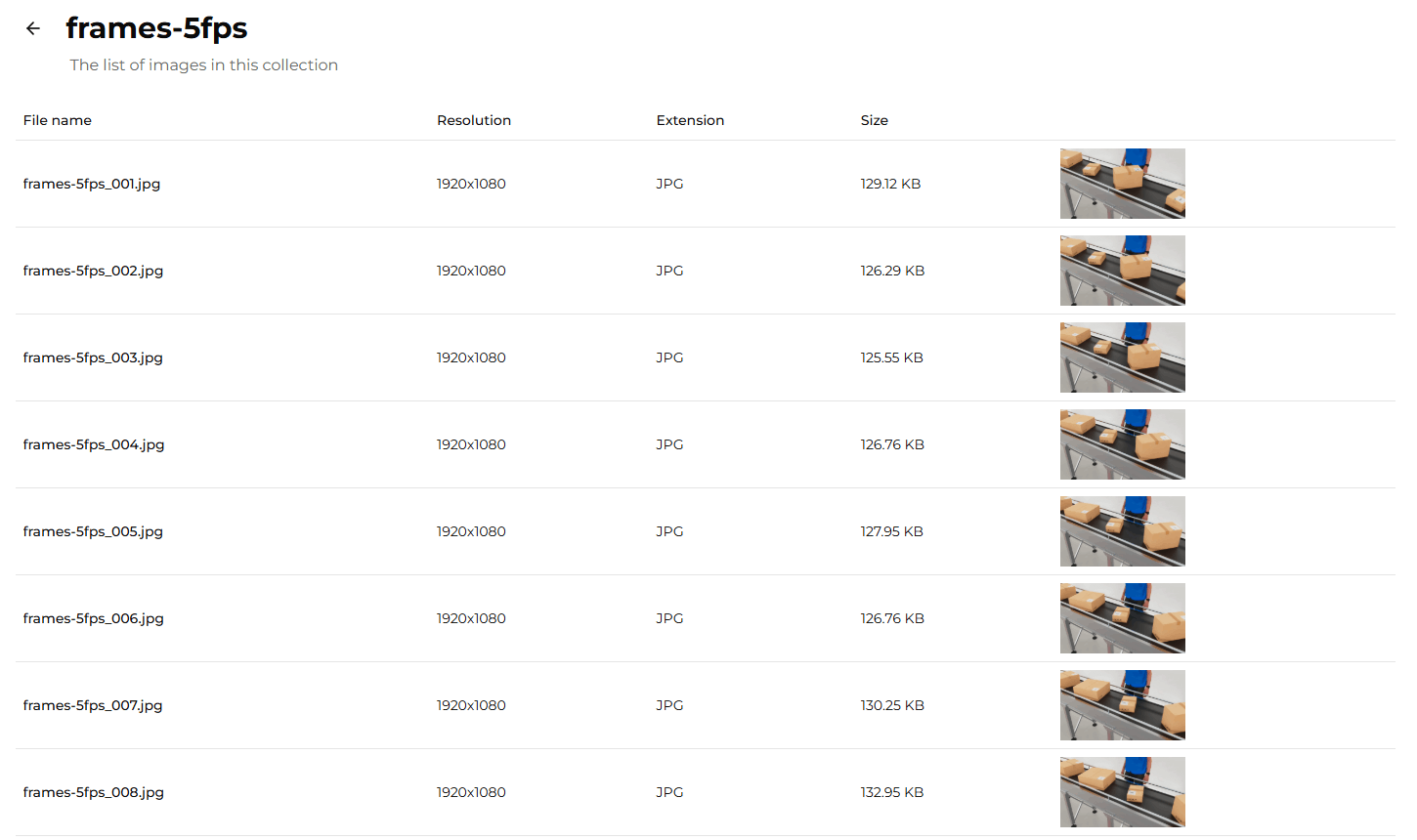

The details page displays all images in the selected set, along with their basic properties and previews.

Images in Set

Selecting an image set as pipeline input#

To use an image set as pipeline input, open the Pipeline Builder and click the Input block to see the properties.

Pipeline Input

From the Source Type dropdown, select Image Set.

Pipeline Source Type

Then, from the Source dropdown, select the desired image set.

Pipeline Source

The selected image set will now be used as the pipeline input.
