How It Works#

The Live Video Alert Agent is a multi-layered application that ingests RTSP video streams, applies VLM-based scene understanding, and delegates configurable action dispatch to the external alert-agent-service over HTTP.

Architecture Overview#

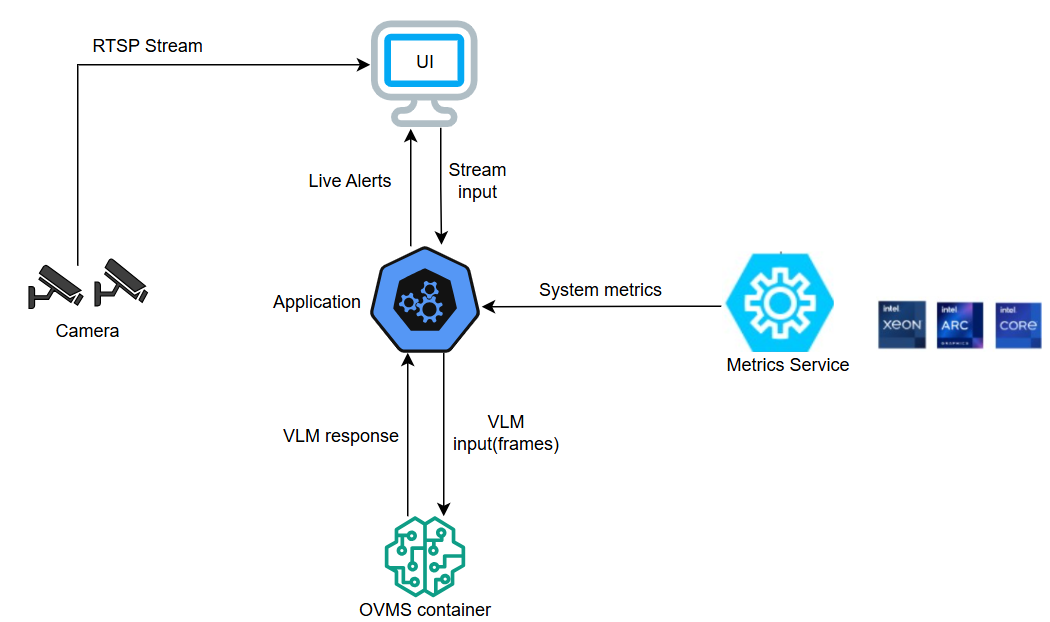

System Architecture

Data Flow#

RTSP Sources (N cameras)
     │
     ▼
LiveStreamManager × N          grab()/retrieve() throttled decode
     │                         exponential-backoff reconnection
     │  frame (latest)
     ▼
AgentManager                   one asyncio.Task per stream (concurrent)
  ├─ VlmClient ──────────────► OVMS / OpenAI-compatible VLM
  │   └─ retry + backoff       Phi-3.5-Vision | InternVL2-2B ...
  │
  ├─ AlertStateManager         per-stream × per-alert runtime state
  │   ├─ cooldown gate         suppresses repeat firings
  │   ├─ consecutive counter   detects persistent conditions
  │   └─ escalation trigger    promotes alert tier after N consecutives
  │
  ├─ AlertServiceClient ─────► alert-agent-service (HTTP POST)
  │                             dispatches tools via ADK or rule-based mode
  │                             tools: log_alert, capture_snapshot,
  │                                    trigger_webhook, publish_mqtt, MCP tools
  │
  ├─ MCP Client (optional)     Model Context Protocol integration
  │   └─ External MCP servers  discover tools for status/monitoring
     │
     ▼
EventManager (SSE pub/sub)     alerts fan-out to all connected browsers
     │
     ▼
Dashboard UI                   real-time stream tiles, alert feed

Key Components#

LiveStreamManager#

Each registered camera has its own LiveStreamManager running in a daemon thread.

  • Uses cv2.VideoCapture.grab() followed by retrieve() to skip deep-decode on unused frames, reducing CPU usage proportionally to the gap between capture FPS and analysis FPS.

  • Frame interval is controlled by CAPTURE_FPS (default: auto-derived from ANALYSIS_INTERVAL).

  • Reconnects on drop-out with exponential back-off (2 s → 30 s).

  • Exposes a get_health() method returning connection status, actual FPS, resolution, and buffer fill level.

AgentManager#

The central orchestrator. Instead of a single serial loop across all cameras, each stream gets an independent asyncio.Task:

add_stream("cam1", ...) → _launch_stream_task("cam1")
add_stream("cam2", ...) → _launch_stream_task("cam2")

cam1-task: _stream_analysis_loop() running every ANALYSIS_INTERVAL seconds
cam2-task: _stream_analysis_loop() running every ANALYSIS_INTERVAL seconds

Failed or cancelled tasks are automatically restarted via an add_done_callback.

VlmClient#

Thin async wrapper around openai.AsyncOpenAI, targeting OVMS (OpenVINO Model Server) via its OpenAI-compatible REST API.

  • Sends a system role message (VLM system instruction) plus a user message containing the base64-encoded frame and the structured alert prompt.

  • Retries failed calls up to VLM_MAX_RETRIES times with exponential back-off.

  • Alert prompts are serialised with json.dumps — not f-strings — to prevent prompt-injection from user-supplied alert names or text.

AlertStateManager#

Maintains per-stream × per-alert runtime state without any database dependency:

State field

Purpose

last_action_time

Timestamp of last tool execution

consecutive_yes

Counts unbroken YES detections; triggers escalation

last_answer

Detects state transitions (NO→YES, YES→NO)

process() returns (should_act, is_escalation, is_transition) so the manager can decide whether to invoke tools and which tier of tools to use.

AlertServiceClient#

AlertServiceClient is the live-video-alert-agent’s async HTTP integration point for action dispatch.

  • Reads ALERT_AGENT_SERVICE_URL (default: http://alert-agent-service:8000/api/v1) and ALERT_AGENT_SERVICE_TIMEOUT (default: 30 s).

  • Sends alert context, selected tool names, per-tool arguments, metadata, and an optional JPEG-encoded frame to the alert-agent-service via HTTP POST.

  • Keeps the video analysis service decoupled from Google ADK, local tool registries, webhook/MQTT implementations, and LLM endpoint management.

  • Receives normalized execution results such as actions_taken, duration_ms, and snapshot_path, which are then published to the UI as alert events.

The alert-agent-service owns the ADK-powered and rule-based execution modes, so the live-video-alert-agent no longer embeds an action agent locally.

Action Tools#

Action tools are no longer implemented inside the live-video-alert-agent process. Instead, they are registered and executed by the external alert-agent-service.

Typical tools provided by that service include:

  • log_alert

  • capture_snapshot

  • trigger_webhook

  • publish_mqtt

  • MCP-backed tools exposed by the alert-agent-service

Tools are still referenced per alert through AlertConfig.tools and AlertConfig.escalation.additional_tools, but the /tools, /tools/{name}/invoke, and /tools/reload endpoints in the live-video-alert-agent now proxy requests to the alert-agent-service.

Alert Configuration Schema#

Each alert is described by an AlertConfig Pydantic model:

{
  "name": "Fire Detection",
  "prompt": "Is there fire or smoke visible?",
  "enabled": true,
  "tools": ["log_alert", "capture_snapshot"],
  "tool_arguments": {
    "trigger_webhook": {"stream_id": "{{stream_id}}", "severity": "{{severity}}"}
  },
  "escalation": {
    "threshold_consecutive": 3,
    "additional_tools": ["trigger_webhook", "publish_mqtt"]
  }
}

Field

Values

Description

tools

list of tool names

Tools invoked when alert fires

tool_arguments

object

Per-tool keyword argument overrides; supports {{variable}} placeholders rendered from alert context (stream_id, alert_name, answer, reason, consecutive_count, escalated, snapshot_path)

escalation.threshold_consecutive

integer ≥ 2

Consecutive YES count before escalation

escalation.additional_tools

list of tool names

Extra tools added on escalation

Event Types#

The SSE stream (GET /events) emits four event types:

Event

When

init

On SSE connect — current streams + latest results

analysis

Each VLM analysis cycle completes

alert_action

Alert fired and tools were invoked

keepalive

Every 15 s to prevent proxy timeouts

MCP Integration#

The agent still supports connecting to external Model Context Protocol (MCP) servers for status visibility and monitoring-oriented tool discovery.

MCPClient#

The MCPClient module manages lifecycle for one or more MCP servers configured in resources/mcp_servers.json. Supported transports:

Transport

When to use

http

Remote HTTP MCP server (MCP Streamable HTTP protocol)

sse

Remote SSE-based MCP server

stdio

Local subprocess MCP server

At startup, if MCP_ENABLED=true, the agent:

  1. Reads resources/mcp_servers.json

  2. Connects to each enabled server and performs the MCP initialize handshake

  3. Calls tools/list to discover available tools

  4. Exposes the discovered tool inventory through local MCP status/inspection endpoints, while action-dispatch tool registration is handled by the alert-agent-service

  5. Leaves ADK tool-calling and alert-time MCP dispatch to the alert-agent-service rather than reinitialising a local action agent
