Enable System Metrics Dashboard#

Note: The system metrics dashboard is only supported with docker compose deployments and requires Telegraf to run as the root user. Verified only for Wind Turbine Anomaly Detection sample app.

Please follow prerequisites and understand data flow explanation as a prerequisite.

To enable the system metrics dashboard showcasing the host and docker containers CPU, memory, network, disk IO usage, run the following command:

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-time-series/ # path relative to git clone folder
# Try one of the below options:
make up_opcua_ingestion INCLUDE=validation
# OR
make up_mqtt_ingestion INCLUDE=validation

Viewing System Metrics Dashboard#

  • Use link https://<host_ip>:3000/ to launch Grafana from browser (preferably, chrome browser)

  • Login to the Grafana with values set for VISUALIZER_GRAFANA_USER and VISUALIZER_GRAFANA_PASSWORD in .env file and select System Metrics Dashboard.

    Grafana login

  • After login, click on Dashboard

    Menu view

  • Select the System Metrics Dashboard.

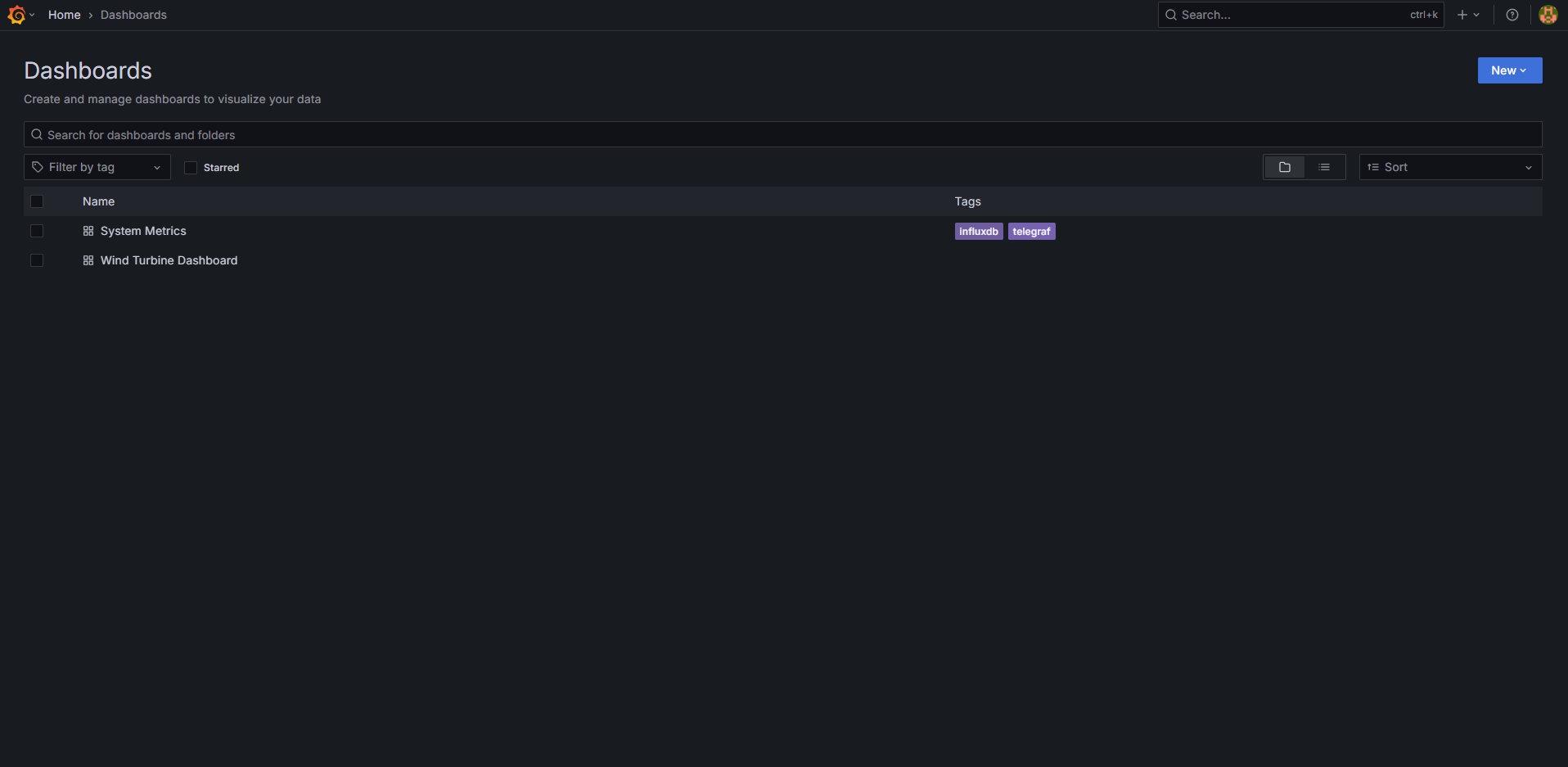

    List all dashboard

  • One will see the below output.

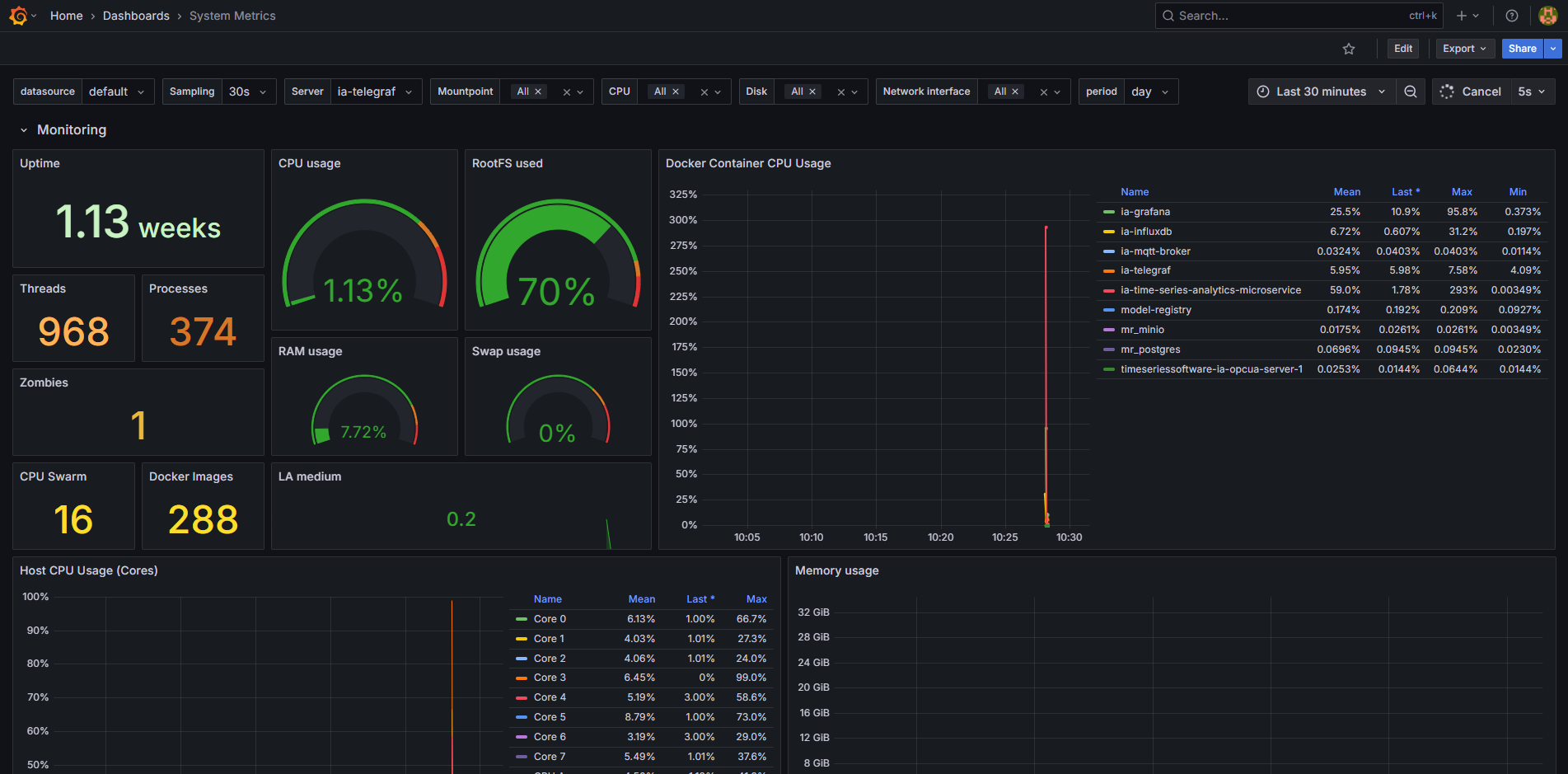

    System Metrics Dashboard
