Execute the Wandering Application on the Jackal Robot#

This tutorial details the steps to install and run the Wandering Application with Intel® RealSense™ camera input on a Clearpath Robotics Jackal robot. The Wandering Application will use the Nav2 navigation stack and the RTAB-Map SLAM application to let the Jackal robot move around and create a map of the environment.

Prerequisites#

Complete the GSG Robot guide before continuing.

Installation and Execution#

Make sure that you have set up your Jackal robot as described on the Jackal Intel Robotics SDK page. In addition, you can run the steps on page Jackal Keyboard Teleop in order to verify that your ROS 2 installation can communicate with the Motor Control Unit (MCU).

To install the Deb package of the Wandering tutorial on Jackal robots, run the following command:

sudo apt update
sudo apt install ros-jazzy-wandering-jackal-tutorial

sudo apt update
sudo apt install ros-humble-wandering-jackal-tutorial

Make sure that you are logged in as the administrator user. Run the following script, which will start the Wandering Application. After a few seconds, the Jackal robot will start moving and the RTAB-Map SLAM application will create the map.

Before running the script, set the ROBOT_NAMESPACE environment variable to match the namespace configured in your /etc/clearpath/robot.yaml file. This is the system/ros2/namespace value prefixed with a slash:

export ROBOT_NAMESPACE=/j100_<serial>   # e.g. /j100_0812

Then run the script:

/opt/ros/jazzy/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh

The script reads ROBOT_NAMESPACE at startup, sources /etc/clearpath/setup.bash to obtain the correct ROS_DOMAIN_ID, and overrides it from /etc/clearpath/robot.yaml to ensure it matches the robot’s MCU configuration.

/opt/ros/humble/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh

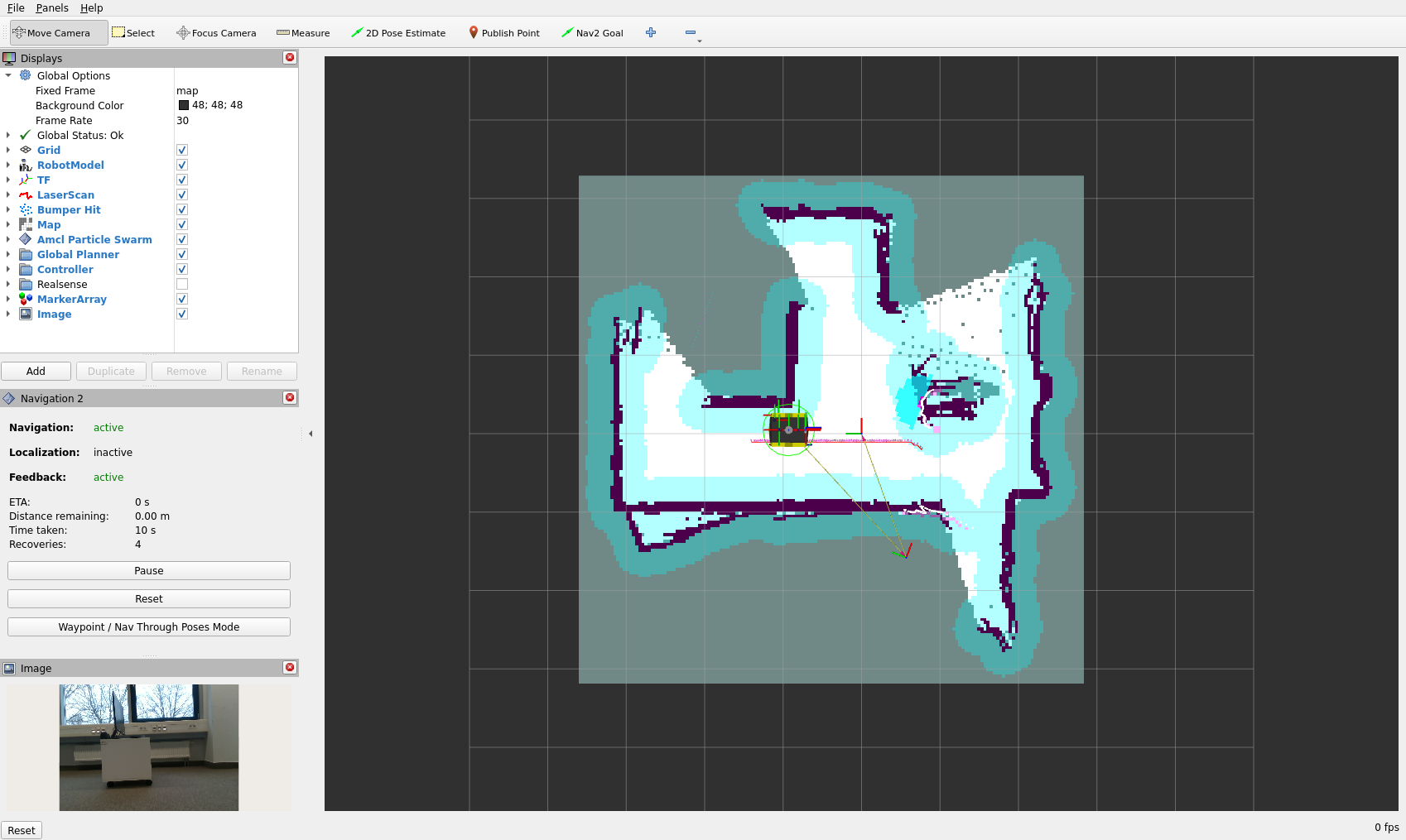

wandering-jackal-rviz2

Wandering Application running on the Jackal robot: the rviz2 tool shows the robot with the identified map and the image of the Intel® RealSense™ camera.

Jackal-Specific Adaptations#

The shell script and the launch file of the Wandering tutorial have been adapted to the ecosystem of the Jackal robot. In particular, they include several remapping definitions, which align the camera and IMU related topics with the topic names expected by the nodes of the Wandering tutorial.

You don’t have to read the following subsections if you just want to run the tutorial. But they might provide relevant background information if you want to adapt the tutorial to a robot with a different ecosystem.

Adaptation of the Camera Namespace#

As mentioned on the Jackal Intel Robotics SDKpage, the names of the camera-related topics depend on the version of the installedrealsense2-camera` package. The camera-related topics start with:

  • /sensors/camera_0/camera/ if the ros-jazzy-realsense2-camera package is version 4.55

  • /sensors/camera_0/ if the ros-jazzy-realsense2-camera package is version 4.54

In order to support both versions of the ros-jazzy-realsense2-camera package, the shell script /opt/ros/jazzy/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh checks the name of the camera-related topics and assigns the variable ${CAMERA_NAMESPACE} according to the identified camera namespace.

The script searches for topics ending in /depth/image (the topic name used by Clearpath’s remapped camera output) and strips that suffix to derive ${CAMERA_NAMESPACE}. The namespace is always prefixed with ${ROBOT_NAMESPACE}, for example /j100_0812/sensors/camera_0/camera or /j100_0812/sensors/camera_0.

  • /sensors/camera_0/camera/ if the ros-humble-realsense2-camera package is version 4.55

  • /sensors/camera_0/ if the ros-humble-realsense2-camera package is version 4.54

In order to support both versions of the ros-humble-realsense2-camera package, the shell script /opt/ros/humble/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh checks the name of the camera-related topics and assigns the variable ${CAMERA_NAMESPACE} according to the identified camera namespace.

Adaptation of the depthimage_to_laserscan Node#

This node converts the depth image of the Intel® RealSense™ camera into a 2D laser scan. The node expects that it can subscribe to the topics depth and depth_camera_info. This requirement is fulfilled by remapping the following topics, which are published by the camera node of the Jackal robot:

  • if ros-jazzy-realsense2-camera version is 4.55 (ros_parameters key camera):

    Topic name expected by the node

    True topic name on the Jackal robot

    depth

    ${ROBOT_NAMESPACE}/sensors/camera_0/camera/depth/image

    depth_camera_info

    ${ROBOT_NAMESPACE}/sensors/camera_0/camera/depth/camera_info

  • if ros-jazzy-realsense2-camera version is 4.54 (ros_parameters key intel_realsense):

    Topic name expected by the node

    True topic name on the Jackal robot

    depth

    ${ROBOT_NAMESPACE}/sensors/camera_0/depth/image

    depth_camera_info

    ${ROBOT_NAMESPACE}/sensors/camera_0/depth/camera_info

Note: Clearpath remaps the raw depth topic depth/image_rect_raw to depth/image. The script uses depth/image.

The script /opt/ros/jazzy/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh considers the necessary remapping of both topics when it starts the depthimage_to_laserscan node:

ros2 run depthimage_to_laserscan depthimage_to_laserscan_node --ros-args \
         --remap depth:=${CAMERA_NAMESPACE}/depth/image \
         --remap depth_camera_info:=${CAMERA_NAMESPACE}/depth/camera_info \
         -p scan_time:=0.033 -p range_min:=0.1 -p range_max:=2.5 \
         -p output_frame:=camera_0_depth_frame &

  • if ros-humble-realsense2-camera version is 4.55:

    Topic name expected by the node

    True topic name on the Jackal robot

    depth

    /sensors/camera_0/camera/depth/image_rect_raw

    depth_camera_info

    /sensors/camera_0/camera/depth/camera_info

  • if ros-humble-realsense2-camera version is 4.54:

    Topic name expected by the node

    True topic name on the Jackal robot

    depth

    /sensors/camera_0/depth/image_rect_raw

    depth_camera_info

    /sensors/camera_0/depth/camera_info

The script /opt/ros/humble/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh considers the necessary remapping of both topics when it starts the depthimage_to_laserscan node:

ros2 run depthimage_to_laserscan depthimage_to_laserscan_node --ros-args \
         --remap depth:=${CAMERA_NAMESPACE}/depth/image_rect_raw \
         --remap depth_camera_info:=${CAMERA_NAMESPACE}/depth/camera_info \
         -p scan_time:=0.033 -p range_min:=0.1 -p range_max:=2.5 \
         -p output_frame:=camera_0_depth_frame &

The depthimage_to_laserscan node publishes the topic /scan, which is subscribed by several other nodes. The laser scan messages, which are broadcast via this topic, must include a frame id. This frame id, whose default value is camera_depth_frame, must be adapted to the actual link name on the robot. According to the TF2 tree of the Jackal robot, which is shown on the Jackal Intel Robotics SDK` page, the actual link name is camera_0_depth_frame.

The above ros2 run command specifies the appropriate output frame id when it starts the depthimage_to_laserscan node. This is achieved by means of the parameter output_frame:=camera_0_depth_frame.

Adaptation of the imu_filter_madgwick Node#

This filter node fuses angular velocities and accelerations from the robot’s IMU device into an orientation. The node expects that it can subscribe to the topic /imu/data_raw. The topic /imu/data_raw is a remapped representation of the topic /sensors/imu_0/data_raw, which is published by the jackal_mcu node of the Jackal robot:

Topic name expected by the node

True topic name on the Jackal robot

/imu/data_raw

/sensors/imu_0/data_raw

The script /opt/ros/jazzy/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh considers the necessary remapping when it starts the imu_filter_madgwick node:

ros2 run imu_filter_madgwick imu_filter_madgwick_node --ros-args \
         -p remove_gravity_vector:=true -p use_mag:=false -p publish_tf:=false \
         --remap /imu/data_raw:=${ROBOT_NAMESPACE}/sensors/imu_0/data_raw &

The IMU topic is prefixed with ${ROBOT_NAMESPACE} because Clearpath publishes all sensor topics under the robot’s namespace.

The script /opt/ros/humble/share/wandering_jackal_tutorial/scripts/wandering_jackal.sh considers the necessary remapping when it starts the imu_filter_madgwick node:

ros2 run imu_filter_madgwick imu_filter_madgwick_node --ros-args \
         -p remove_gravity_vector:=true -p use_mag:=false -p publish_tf:=false \
         --remap /imu/data_raw:=/sensors/imu_0/data_raw &

Adaptation of the rgbd_sync Node#

This node synchronizes RGB, depth and camera_info messages into a single message. The node expects that it can subscribe to the topics rgb/image, rgb/camera_info, and depth/image. This requirement is fulfilled by remapping the following topics, which are published by the camera node of the Jackal robot:

  • if ros-jazzy-realsense2-camera version is 4.55:

    Topic name expected by the node

    True topic name on the Jackal robot

    rgb/image

    ${ROBOT_NAMESPACE}/sensors/camera_0/camera/color/image_raw

    rgb/camera_info

    ${ROBOT_NAMESPACE}/sensors/camera_0/camera/color/camera_info

    depth/image

    ${ROBOT_NAMESPACE}/sensors/camera_0/camera/aligned_depth_to_color/image_raw

  • if ros-jazzy-realsense2-camera version is 4.54:

    Topic name expected by the node

    True topic name on the Jackal robot

    rgb/image

    ${ROBOT_NAMESPACE}/sensors/camera_0/color/image_raw

    rgb/camera_info

    ${ROBOT_NAMESPACE}/sensors/camera_0/color/camera_info

    depth/image

    ${ROBOT_NAMESPACE}/sensors/camera_0/aligned_depth_to_color/image_raw

The node publishes the topic rgbd_image, which is remapped to

  • ${ROBOT_NAMESPACE}/sensors/camera_0/camera/rgbd_image if the ros-jazzy-realsense2-camera package is version 4.55,

  • ${ROBOT_NAMESPACE}/sensors/camera_0/rgbd_image if the ros-jazzy-realsense2-camera package is version 4.54.

The definition of the remapping can be found in the launch files rtabmap_jackal.launch.py and rtabmap_jackal.rs454.launch.py. Both launch files can be found in the folder /opt/ros/jazzy/share/wandering_jackal_tutorial/launch/. The launch files derive the full topic paths from the ROBOT_NAMESPACE environment variable at launch time.

  • if ros-humble-realsense2-camera version is 4.55:

    Topic name expected by the node

    True topic name on the Jackal robot

    rgb/image

    /sensors/camera_0/camera/color/image_raw

    rgb/camera_info

    /sensors/camera_0/camera/color/camera_info

    depth/image

    /sensors/camera_0/camera/aligned_depth_to_color/image_raw

  • if ros-humble-realsense2-camera version is 4.54:

    Topic name expected by the node

    True topic name on the Jackal robot

    rgb/image

    /sensors/camera_0/color/image_raw

    rgb/camera_info

    /sensors/camera_0/color/camera_info

    depth/image

    /sensors/camera_0/aligned_depth_to_color/image_raw

The node publishes the topic rgbd_image, which is remapped to

  • /sensors/camera_0/camera/rgbd_image if the ros-humble-realsense2-camera package is version 4.55,

  • /sensors/camera_0/rgbd_image if the ros-humble-realsense2-camera package is version 4.54.

The definition of the remapping can be found in the launch files rtabmap_jackal.launch.py and rtabmap_jackal.rs454.launch.py. Both launch files can be found in the folder /opt/ros/humble/share/wandering_jackal_tutorial/launch/.

Adaptation of the rtabmap Node#

This node implements the RTAB-Map SLAM approach. The node expects that it can subscribe to the topic rgbd_image. The topic rgbd_image is a remapped representation of the topic

  • ${ROBOT_NAMESPACE}/sensors/camera_0/camera/rgbd_image if the ros-jazzy-realsense2-camera package is version 4.55,

  • ${ROBOT_NAMESPACE}/sensors/camera_0/rgbd_image if the ros-jazzy-realsense2-camera package is version 4.54,

which is published by the rgbd_sync node.

The /tf and /tf_static topics are also remapped to ${ROBOT_NAMESPACE}/tf and ${ROBOT_NAMESPACE}/tf_static respectively, so that rtabmap receives the TF tree published by the Clearpath platform under the robot’s namespace.

Nav2 is launched via the custom navigation_jackal.launch.py launch file (instead of the generic nav2_bringup navigation_launch.py). This launch file propagates ROBOT_NAMESPACE into the Nav2 parameter file at launch time using RewrittenYaml, overriding the odom_topic and cmd_vel_out_topic parameters with the correct namespaced topic paths.

The definition of the remapping can be found in the launch files rtabmap_jackal.launch.py and rtabmap_jackal.rs454.launch.py. Both launch files can be found in the folder /opt/ros/jazzy/share/wandering_jackal_tutorial/launch/.

  • /sensors/camera_0/camera/rgbd_image if the ros-humble-realsense2-camera package is version 4.55,

  • /sensors/camera_0/rgbd_image if the ros-humble-realsense2-camera package is version 4.54,

which is published by the rgbd_sync node.

The definition of the remapping can be found in the launch files rtabmap_jackal.launch.py and rtabmap_jackal.rs454.launch.py. Both launch files can be found in the folder /opt/ros/humble/share/wandering_jackal_tutorial/launch/.
