Content Search Flow

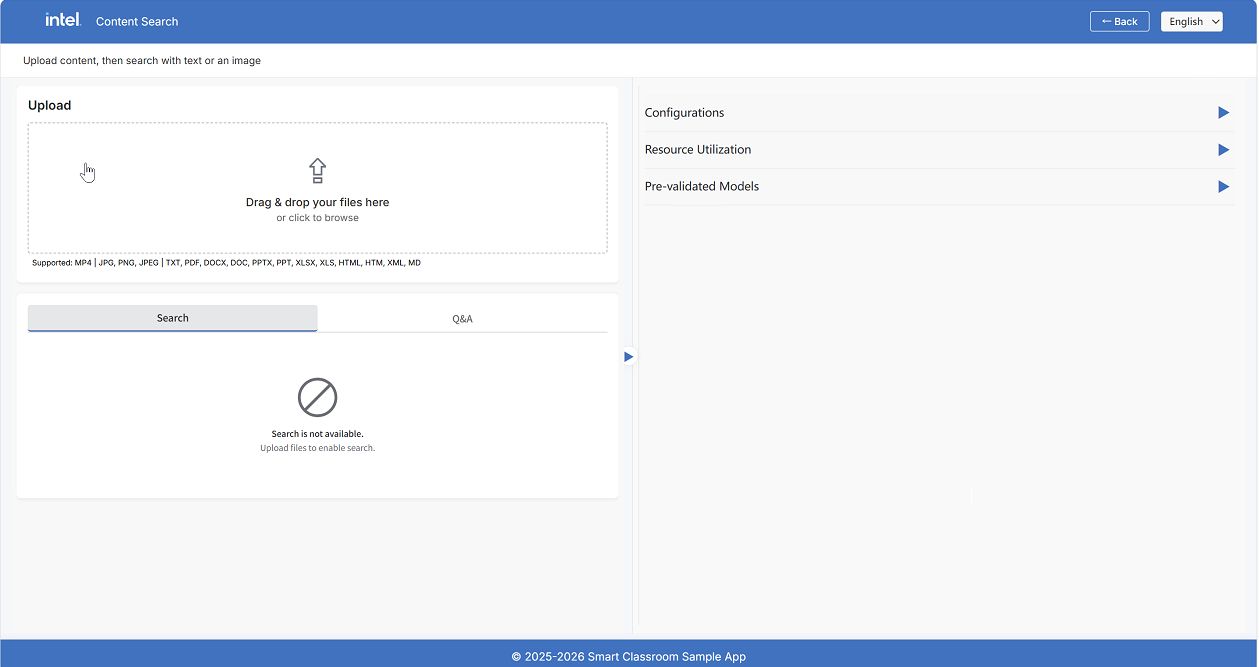

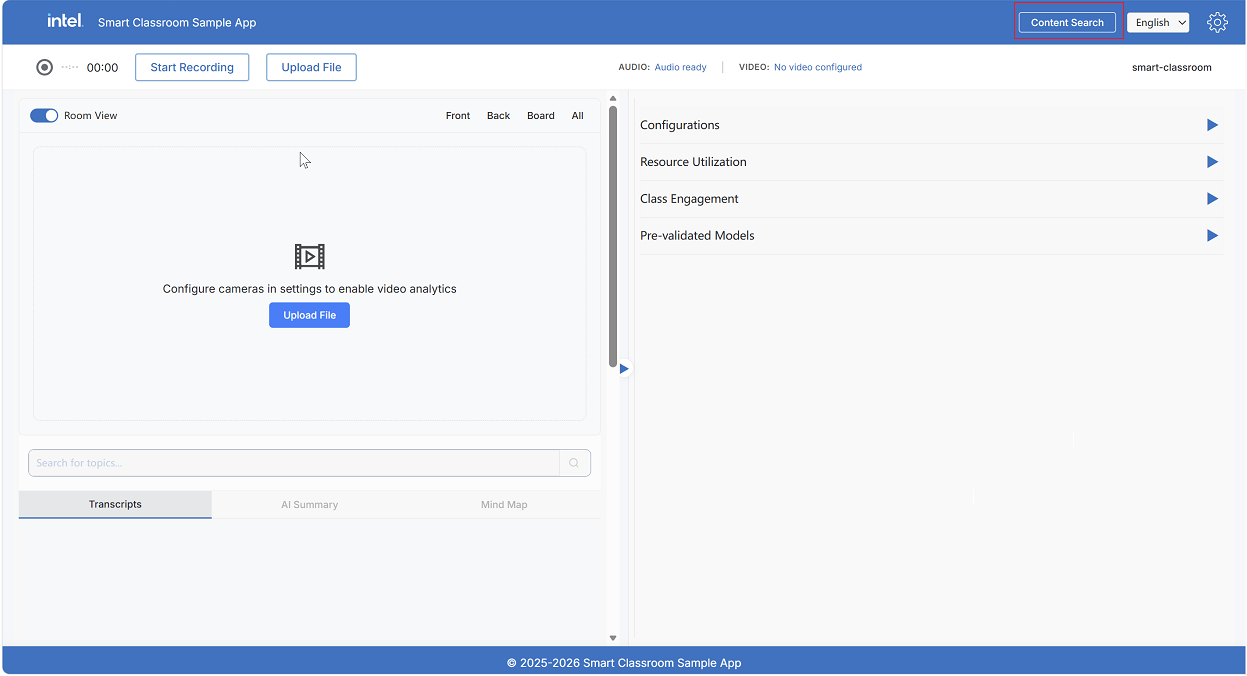

The Content Search feature supports file upload and ingestion, multimodal search (text and image queries), and Q&A over retrieved content. To enter the Content Search view, click the Content Search button in the top navigation bar of the Smart Classroom main screen.

The Content Search view page is split into two panels:

Left Panel

• Upload — Ingest files (videos, documents, images) into the vector database

• Search & Q&A — Query your uploaded content using text or image search, or ask natural-language questions

• Results — Display search results with type filtering, relevance scores, and content previews

Right Panel

• Configuration Metrics — Platform and software configuration for Content Search services

• Resource Utilization — Live monitoring of CPU, GPU, Memory, and Power utilization

• Models — Models used by Content Search, including VLM, Visual Embedding, Document Embedding, and Reranker

Step 1: Upload Files

Click the upload area or drag-and-drop files into the drop zone.

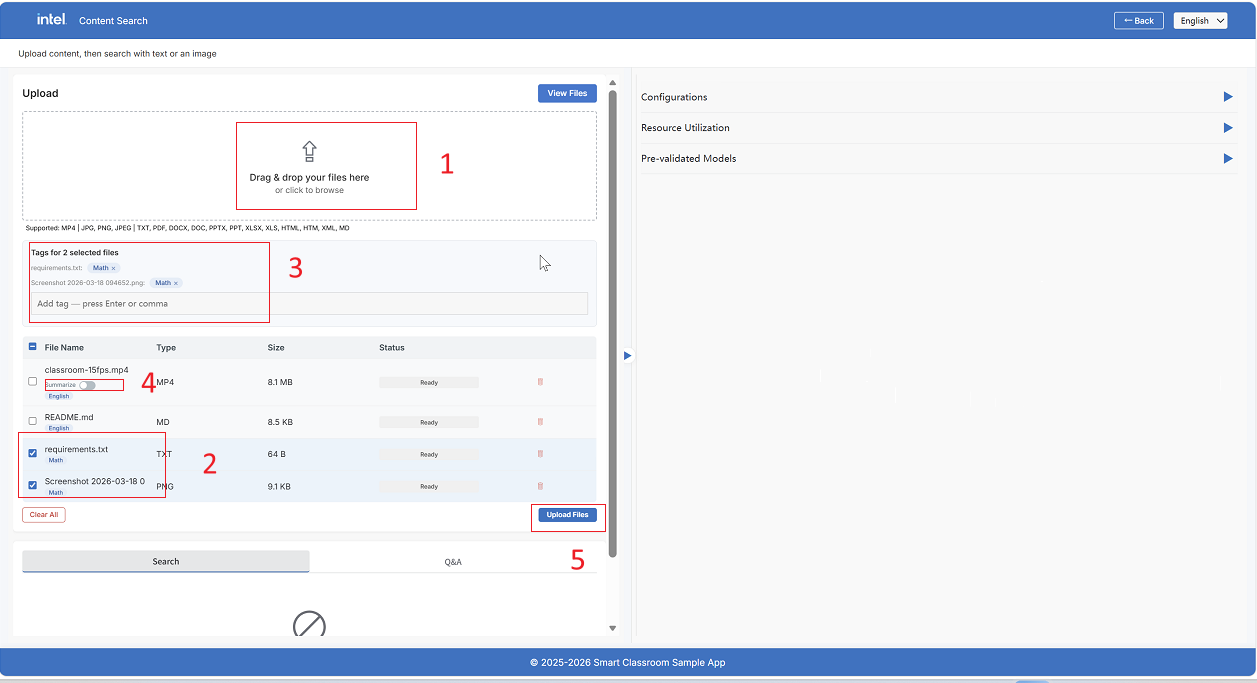

The annotated steps above:

1. Drag & drop files or click to browse

2. Select files using checkboxes to manage tags

3. Add tags to selected files (before upload)

4. Video options — toggle Summarize for MP4 files

5. Search & Q&A tabs — available after upload completes

Supported file formats:

Type	Formats
Video	.mp4
Document	.pdf, .docx, .doc, .pptx, .ppt, .xlsx, .xls, .txt, .html, .htm, .xml, .md
Image	.jpg, .jpeg, .png

Tagging Files

Before uploading, you can add tags to organize your content:

1. Select one or more files using the checkboxes in the file table

2. Type a tag in the tag input field and press Enter or comma to add it

3. Tags appear as chips that can be removed by clicking ×

Note: Tags can only be added or removed while a file is in the Staged state (before upload). Once uploaded, tags are locked.

Video Summarization Toggle

For .mp4 files, a Summarize toggle appears next to the file name. When enabled, the system uses a Vision Language Model (VLM) to generate text summaries of video chunks, enabling richer text-based search over video content.

Uploading

Click the Upload Files button at the bottom to start processing all staged files. Each file goes through the ingestion pipeline:

• Documents — Text extraction (with OCR for handwritten/scanned content), semantic chunking, and embedding

• Images — CLIP embedding for visual similarity search

• Videos — Time-based chunking, frame sampling, VLM summarization (if enabled), and both text and visual embedding

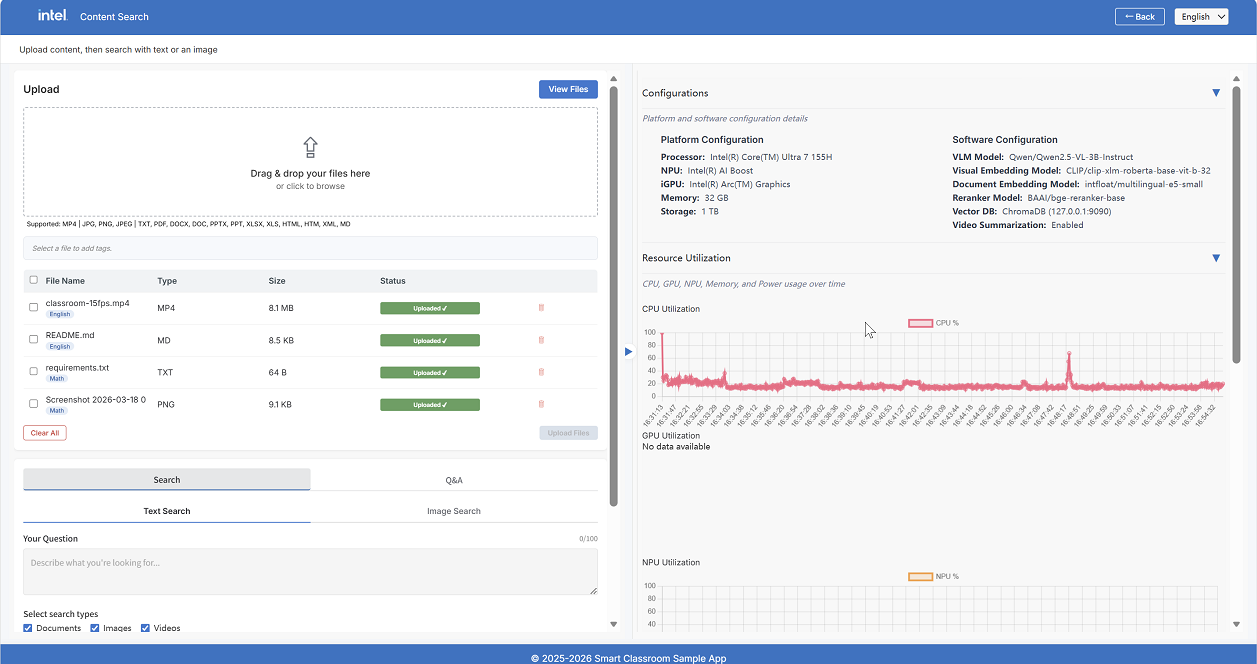

The status column shows the current state: Staged → Processing → Completed (or Failed).

File Manager

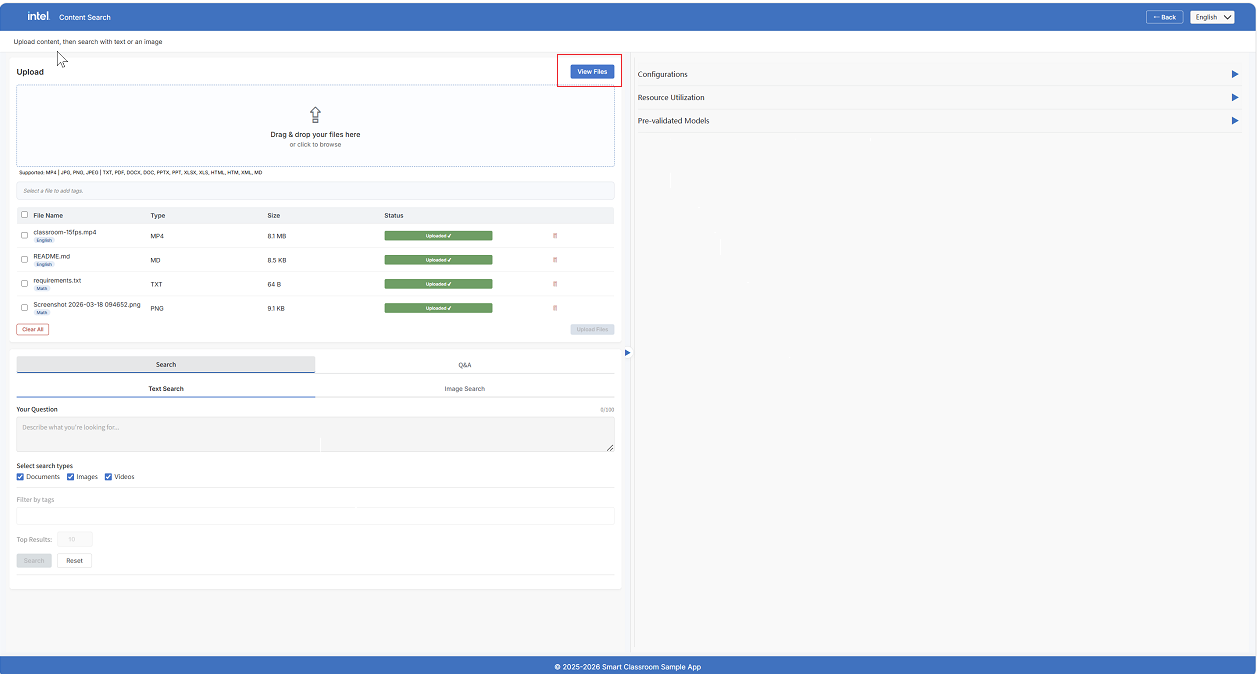

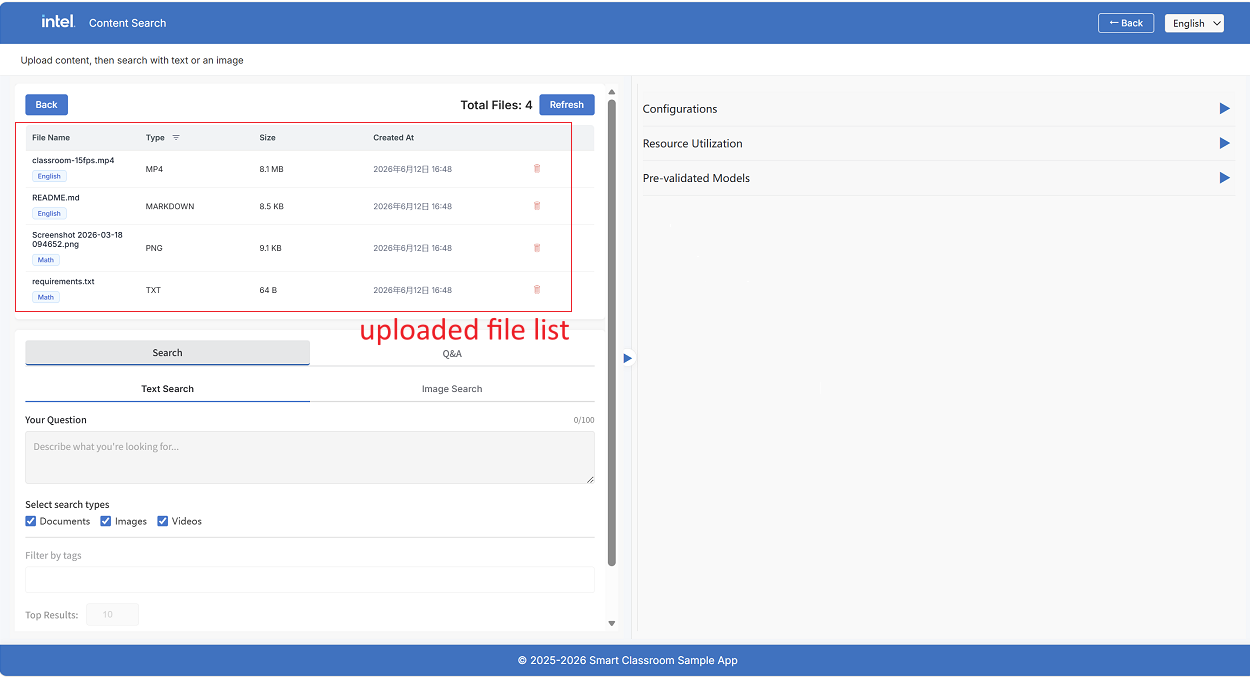

Once files have been uploaded, click View Files to open the File Manager, which shows all files currently stored on the server.

Step 2: Search

After at least one file upload is complete, the Search tab becomes available.

Text Search

1. Select the Text Search tab

2. Type your query in the text area (max 100 characters)

3. Select the content types to search across: Documents, Images, Videos (any combination)

4. Optionally filter results by tag using the Filter by tags dropdown

5. Set the number of Top Results to return (default: 10)

6. Click Search

Text queries search both the visual collection (CLIP embeddings) and the textual collection (BGE embeddings). Textual results are reranked by a cross-encoder, and results from both modalities are merged using Reciprocal Rank Fusion (RRF).

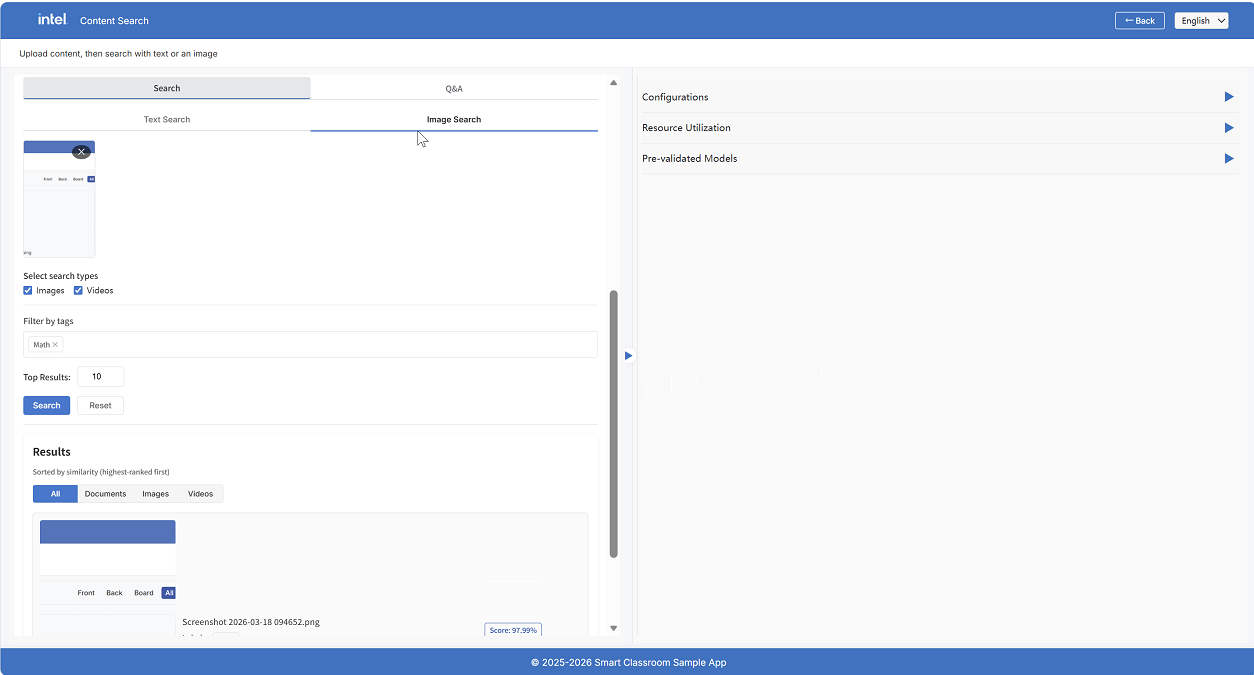

Image Search

1. Select the Image Search tab

2. Drag-and-drop an image or click to browse (accepts .jpg, .jpeg, .png)

3. Select the content types to search: Images, Videos (document search is not available for image queries)

4. Optionally filter by tag

5. Click Search

Image queries search the visual collection by CLIP similarity, returning visually similar images and video frames.

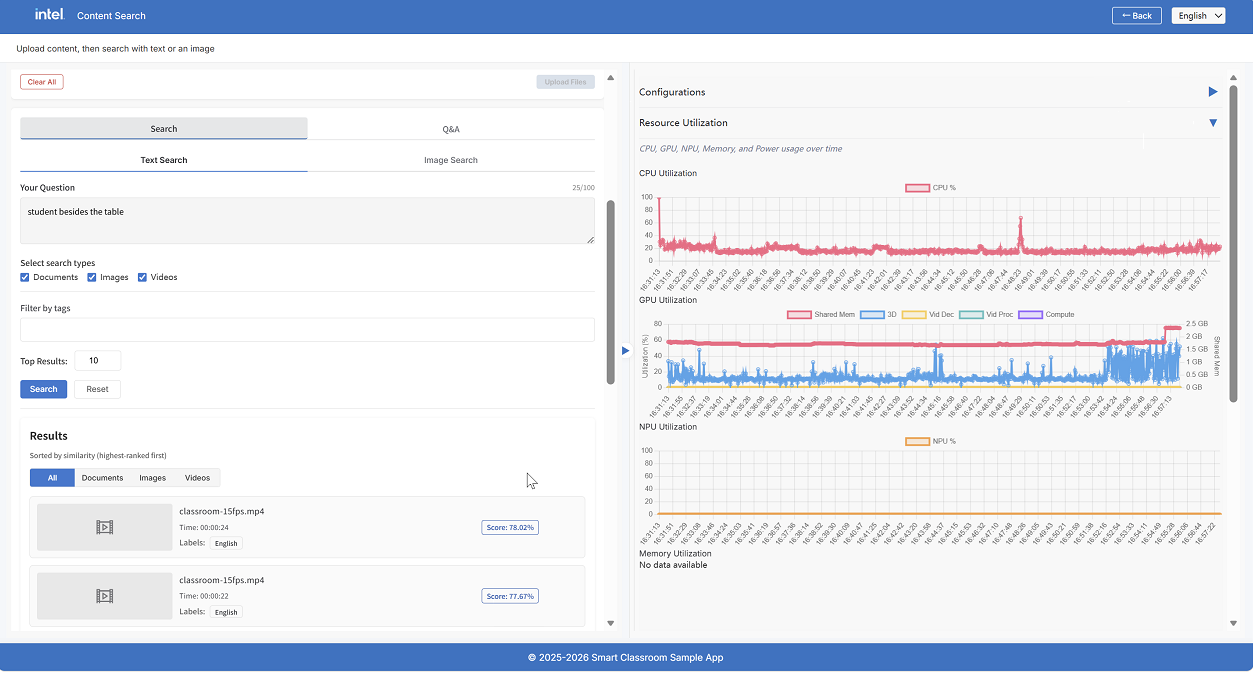

Search Results

Results are displayed in a card layout with tabs for filtering by type: All, Documents, Images, Videos.

Each result card shows:

• File name and type icon

• Relevance score (percentage)

• Page number (for documents)

• Timestamp (for video results, showing the pin time in the video)

• Raw text / Summary — expandable text snippet or VLM-generated summary

• Tags — associated labels

Click Reset to clear all search inputs and results.

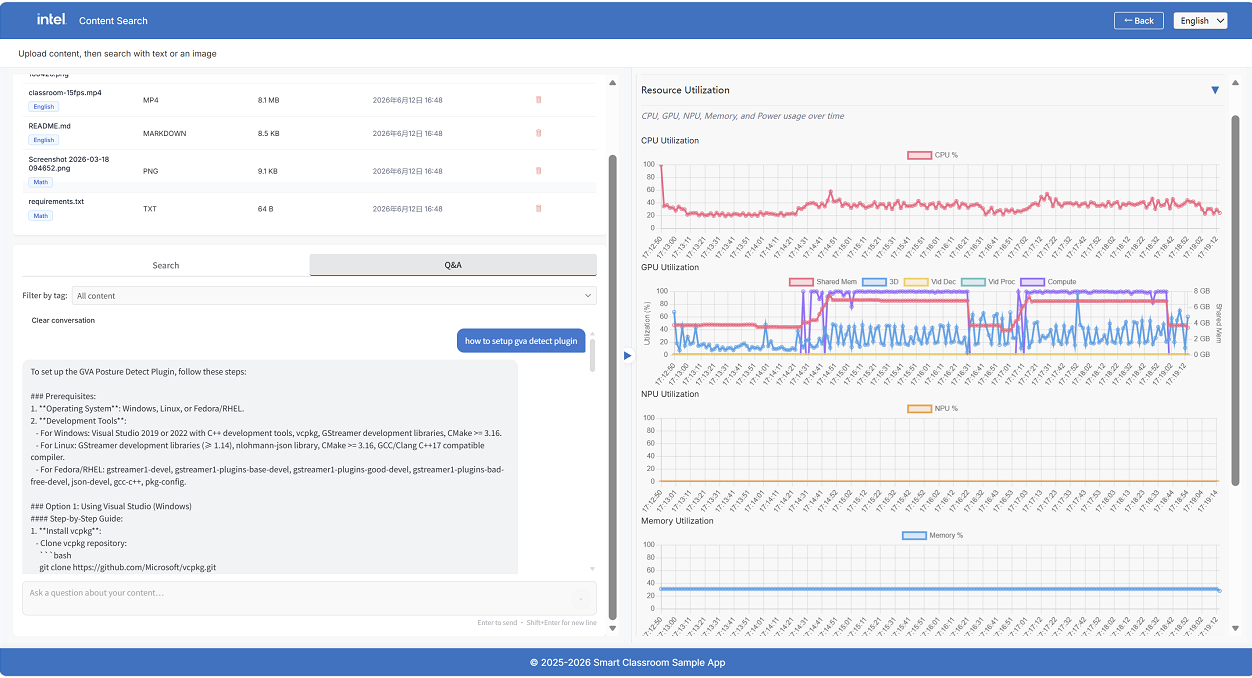

Step 3: Q&A (RAG)

The Q&A tab provides a conversational interface for asking questions about your uploaded content.

1. Switch to the Q&A tab

2. Optionally select tags to narrow the context using the Filter by label selector

3. Type your question in the input area (max 500 characters)

4. Press Enter or click the send button

The system retrieves the most relevant chunks from your uploaded content, assembles them as context, and sends them to the VLM to generate a grounded answer. Each response includes:

• Answer — The AI-generated response based on your content

• Sources — Referenced files with type indicators and location (page number or video timestamp)

The conversation history is maintained within the session, allowing multi-turn follow-up questions. Click Clear conversation to reset the chat history.

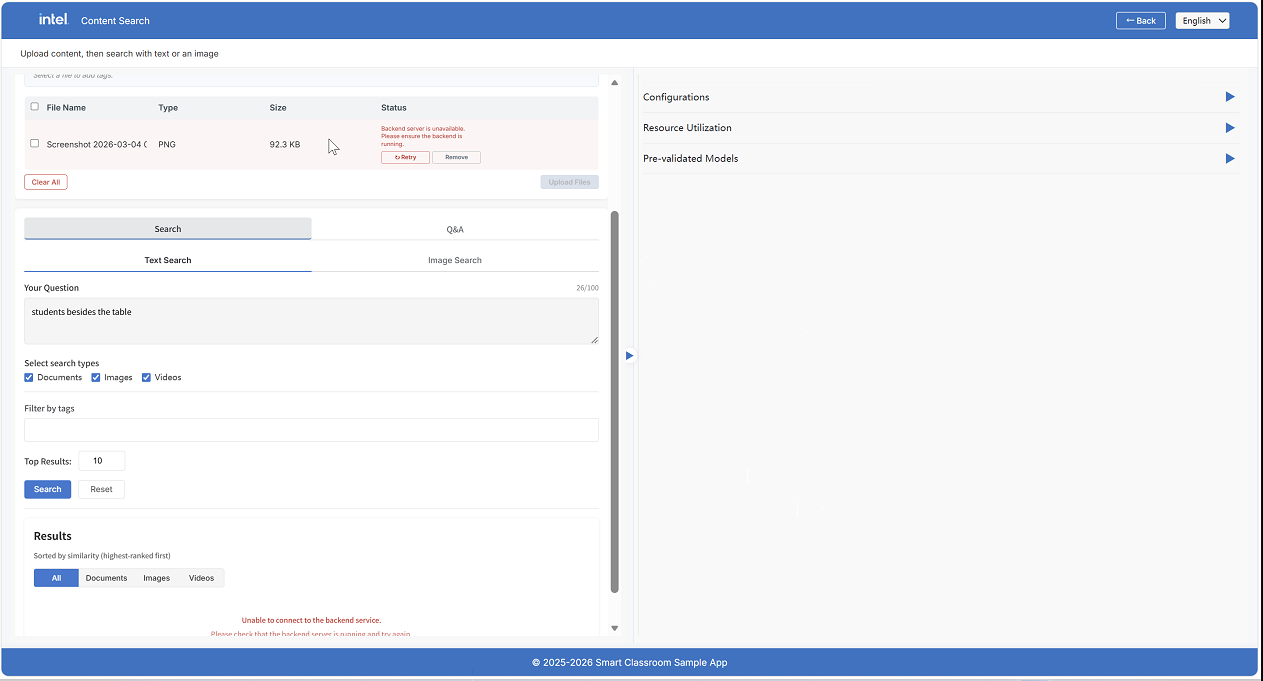

Step 4: Health Monitoring

The Content Search panel automatically checks the health of backend services on load. If any service is unreachable or unhealthy, an error message appears indicating:

• Backend unreachable — the Content Search API (port 9011) is not responding

• Upload/search failure — one or more downstream services (File Ingest, Video Preprocess, VLM Serving, ChromaDB) have issues

Upload and search functionality is affected until all services are healthy.

Microservices

Service	Port	Role
Content Search API	9011	Orchestrator and public API
File Ingest & Retrieve	9990	Embedding, indexing, and retrieval
Video Preprocess	8001	Video chunking and VLM summarization
VLM OpenVINO Serving	9900	Vision-language model inference
ChromaDB	9090	Vector database

Learn More

• How It Works — Content Search Pipeline: Technical architecture and design details.

• Application Flow: End-to-end application flow.
