VLM Recall Search#

VLM Recall Search lets an investigator find historical footage with a plain‑English query such as:

“Show me the person in a blue shirt between 2:00–3:00 PM at the entrance camera.”

It is hybrid recall over recorded video: appearance is matched by multimodal embeddings, time is matched by a capture‑time filter, and location is matched by a per‑camera tag. Results are short video clips you can play back directly in the dashboard.

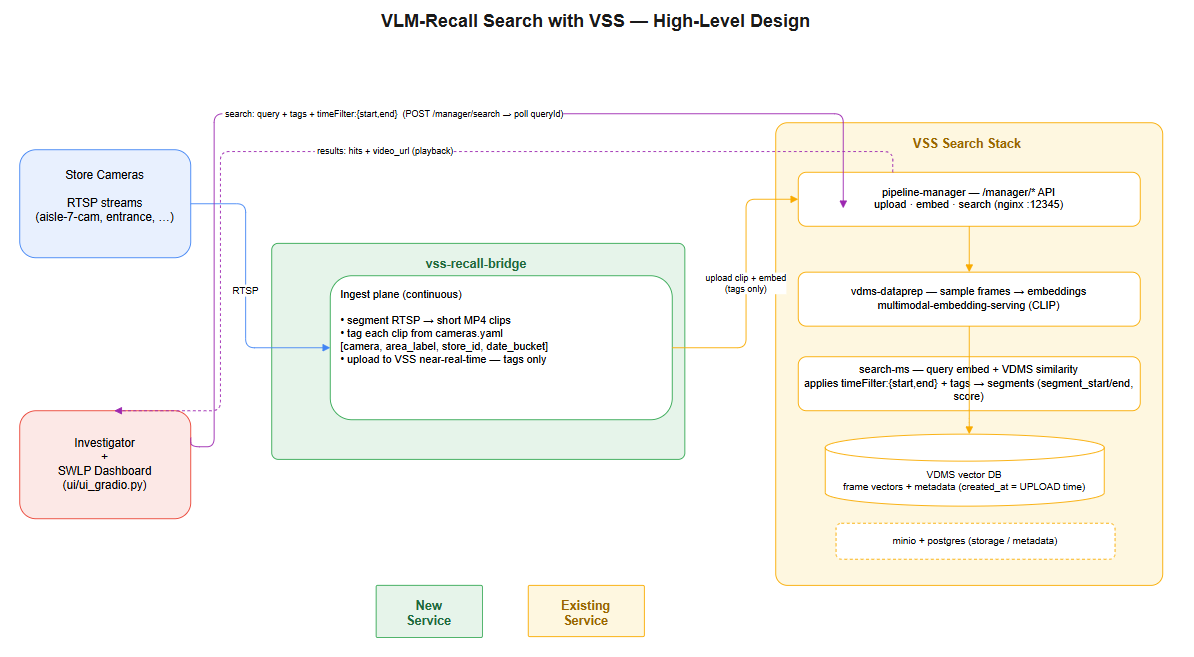

Architecture#

How It Works#

Recall is powered by the Video Search & Summarization (VSS) stack plus a thin recall bridge. The bridge segments each camera into short MP4 clips, tags them, and uploads them to VSS — which owns the embedding index, the time filter, and clip storage. Nothing is duplicated on the SWLP side: every field an investigator sees comes straight from VSS.

        flowchart LR
  cam[Camera<br/>RTSP / file] --> bridge[Recall Bridge]
  bridge -->|tag + upload clips| dataprep[VDMS Dataprep]
  dataprep --> embed[Multimodal<br/>Embedding Serving]
  embed --> vdb[(VDMS Vector DB)]
  ui[Dashboard /recall] -->|query| bridge
  bridge -->|search| search[Video Search]
  search --> vdb
  bridge -->|clip bytes| ui

Query part	Example	Matched by
Appearance	`person in a blue shirt`	VSS multimodal frame embeddings (VDMS)
Time	`2:00–3:00 PM`	VSS absolute `timeFilter` on capture time
Location	`entrance` / `cam2`	Per‑camera upload tags

Each search hit returns video_id, tags, created_at, segment_start/end, and a relevance score. The bridge fetches the clip bytes by video_id and the UI streams them with HTTP range support, so you can seek straight to the matched moment.

Services#

The recall feature adds these containers to the stack:

Service	Role
multimodal-embedding-serving	Encodes frames and text into the same vector space (`EMBEDDING_MODEL_NAME`, default `CLIP/clip-vit-b-32`).
vdms-dataprep	Ingests/segments clips and writes embeddings.
vdms-vector-db	Stores frame embeddings for similarity search.
video-search	Runs the similarity + tag + time query.
pipeline-manager	Orchestrates ingest/search; uses the shared `pgserver` database `video_summary_db`.
vss-recall-bridge	Tags cameras, uploads clips, proxies search and clip playback to the UI.

Enable and Run#

Which stack make up brings up is controlled by MODE:

Command	What runs	Recall UI
`make up` (`MODE=core`, default)	SceneScape + Suspicious Activity only — no search	Recall button hidden
`make up MODE=full`	core + the search/recall stack	`http://localhost:7860/recall` (in the dashboard)
`make up MODE=search`	only the standalone search/recall stack	`http://localhost:7860/recall` (standalone UI)

Search is opt-in: a plain make up does not start the recall stack. Use MODE=full to include it, or MODE=search to run search by itself.

Tear down with the matching mode:

make up MODE=full        &&  make down                # `make down` also cleans a stray search stack
make up MODE=search      &&  make down MODE=search    # (plain `make down` also cleans it, best-effort)

Overriding defaults#

The Makefile sets sensible defaults, so nothing else is mandatory. To override, pass variables on the command line or export them first:

make up MODE=full EMBEDDING_MODEL_NAME=CLIP/clip-vit-b-32 TAG=latest

Variable	Default	Purpose
`MODE`	`core`	`core` (no search) · `full` (core + search) · `search` (search only).
`SEARCH_REGISTRY`	`intel/`	Registry for the VSS search images.
`TAG`	`latest`	Image tag, shared by the LP and VSS search images.
`EMBEDDING_MODEL_NAME`	`CLIP/clip-vit-b-32`	Multimodal model used for text+frame embeddings.
`RECALL_UI_PORT`	`7860`	Host port for the standalone Investigator UI (`MODE=search`).

Legacy aliases (still work, map onto MODE): ENABLE_SEARCH=true → MODE=full; SEARCH_ONLY=true → MODE=search.

Postgres/MinIO credentials are optional (they default in the compose files and the shared pgserver is used), so they don’t need exporting.

Disable Recall#

Recall is off by default — a plain make up (MODE=core) already skips it. With search disabled:

The VSS search services and the vss-recall-bridge are never started.
The dashboard hides the Recall button, and the /recall page returns “Recall Search is disabled.” — so operators don’t see a broken tab.

This is wired automatically: the UI reads ENABLE_RECALL, which the Makefile derives from MODE (true for full/search, false for core). In standalone MODE=search, the recall page also hides its ← Dashboard back-link, since no dashboard is running.

Configure Cameras#

Cameras are not configured in the bridge — they are derived automatically from SceneScape’s configs/scene-config.yaml. Every camera name listed under a scene is segmented, uploaded, and tagged so location filtering works:

scenes:
  - scene_name: storewide loss prevention
    cameras:
      - lp-camera1
    zones:
      aisle1: HIGH_VALUE
      aisle2: CHECKOUT

For each camera name the bridge derives:

RTSP source — ${RECALL_RTSP_BASE_URL}/<camera-name> (e.g. rtsp://mediaserver:8554/lp-camera1).
Tags — the camera name plus the scene’s zone names (aisle1, aisle2), and the optional STORE_ID. A query filtered to any of those tags returns that camera’s clips.

Adding a camera in SceneScape (a new name under scenes[].cameras) is the only step needed to ingest it — there is no separate camera file to edit.

Search From the UI#

Open /recall on the dashboard.
Type a description (e.g. person in a blue shirt).
Optionally set the From / To window — pick the times in the date pickers; the UI sends them as UTC, which is what VSS expects.
Matching clips load automatically and seek to the matched moment for playback.

Troubleshooting#

No results with a time filter: use the UI date pickers (they send UTC). Direct API calls with naive local timestamps are treated as UTC by VSS.
No results for a camera: check the camera name is listed under scenes[].cameras in configs/scene-config.yaml; only cameras defined there are ingested.
/recall shows 404: rebuild the UI image (make up rebuilds it).
pipeline-manager keeps restarting (database "video_summary_db" does not exist): start with make up, which creates the database on pgserver automatically.
