Enable System Metrics Dashboard#

Note: The system metrics dashboard is only supported with docker compose deployments and requires Telegraf to run as the root user.

Please follow prerequisites and understand data flow explanation as a prerequisite.

To enable the system metrics dashboard showcasing the host and docker containers CPU, memory, network, disk IO usage, run the following command:

cd edge-ai-suites/manufacturing-ai-suite/wind-turbine-anomaly-detection/ # path relative to git clone folder
# Try one of the below options:
make up_opcua_ingestion INCLUDE=validation
# OR
make up_mqtt_ingestion INCLUDE=validation

Viewing System Metrics Dashboard#

  • Use link http://<host_ip>:3000 to launch Grafana from browser (preferably, chrome browser)

  • Login to the Grafana with values set for VISUALIZER_GRAFANA_USER and VISUALIZER_GRAFANA_PASSWORD in .env file and select System Metrics Dashboard.

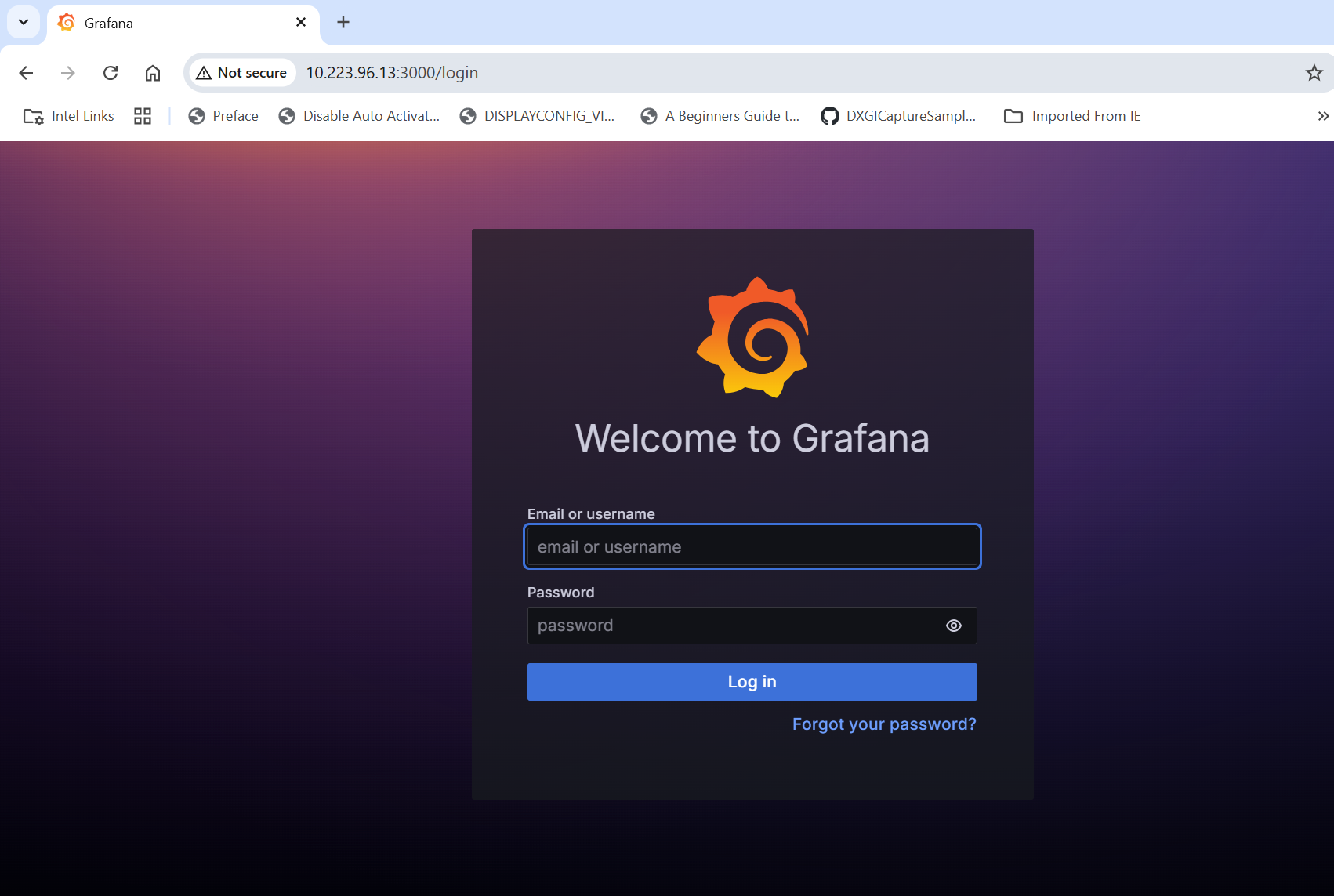

    Grafana login

  • After login, click on Dashboard

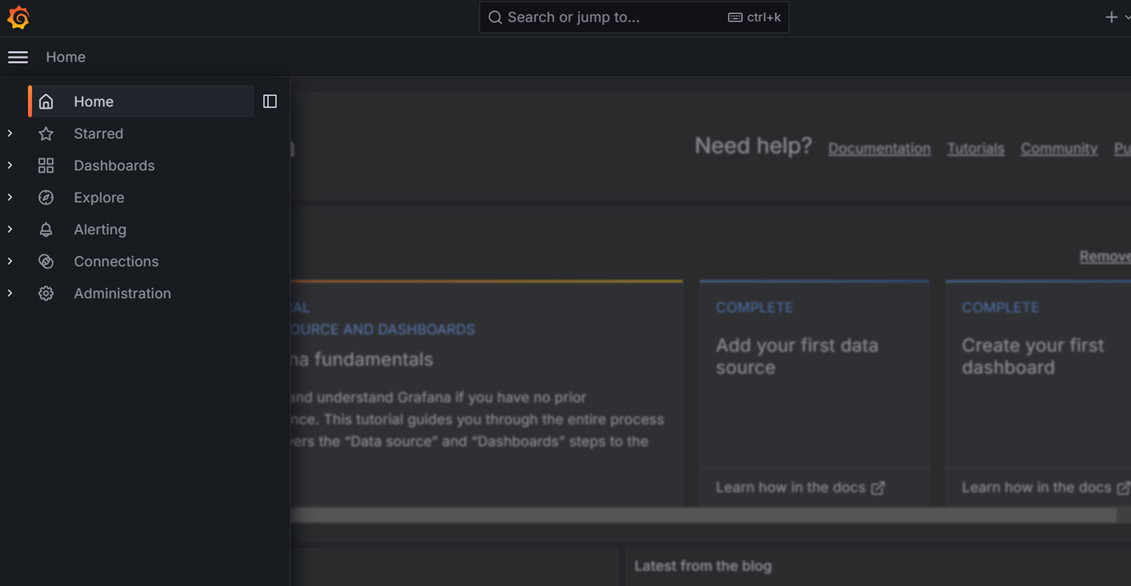

    Menu view

  • Select the System Metrics Dashboard.

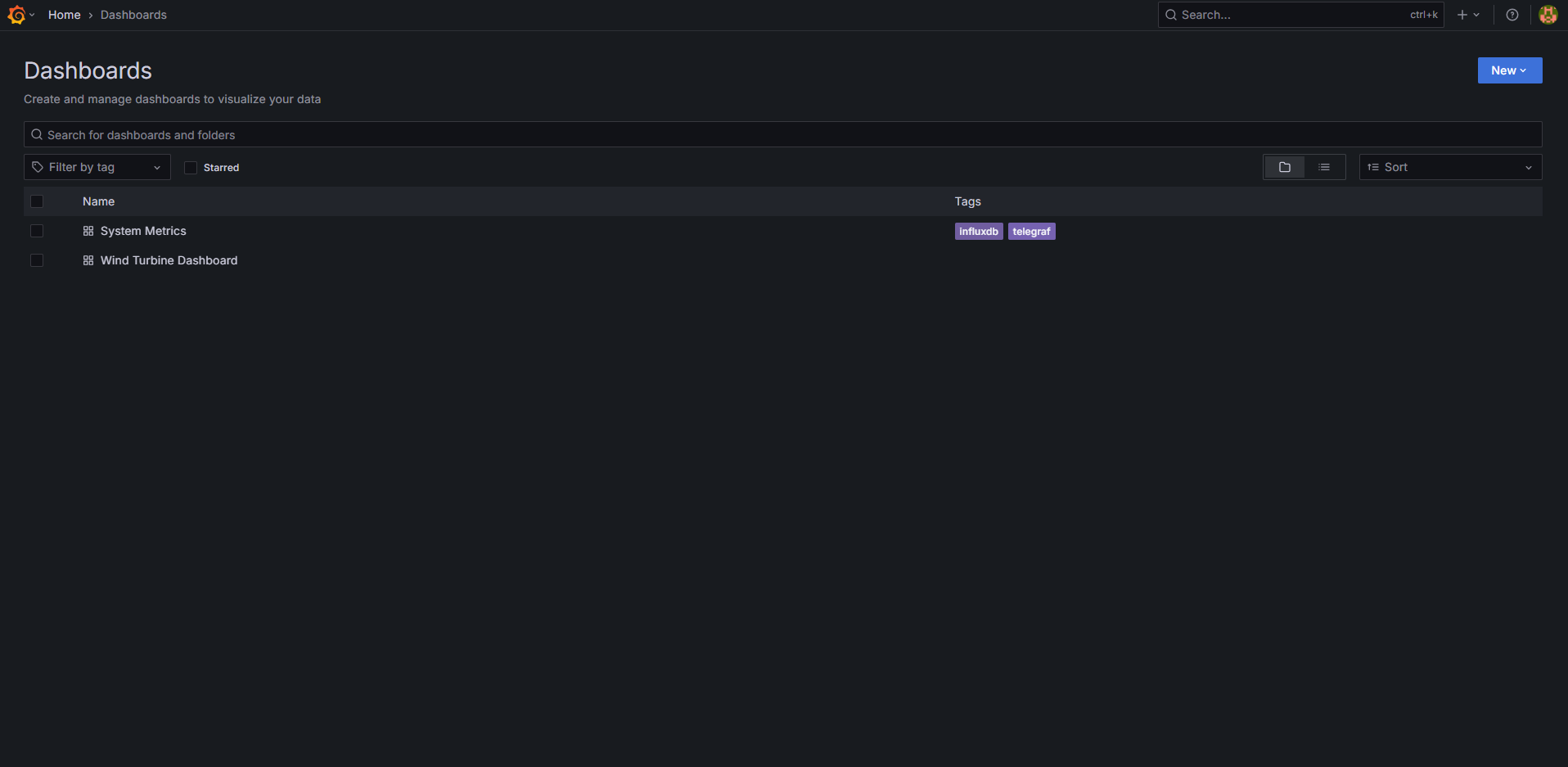

    List all dashboard

  • One will see the below output.

    System Metrics Dashboard
