Get Started#

The Image-Based Video Search is a sample application that demonstrates how developers can leverage edge AI technologies to solve real-world challenges. It enables efficient processing and searching of video data to identify objects of interest, providing actionable insights in real-time.

This application showcases searching through video data generated by cameras around a city to find the closest match to the user-provided image.

By following this guide, you will learn how to:

Set up the sample application: Use Docker Compose to quickly deploy the application in your environment.
Run a predefined pipeline: Execute a sample pipeline to see real-time traffic monitoring and object detection in action.
Modify application parameters: Customize settings like input sources and detection thresholds to adapt the application to your specific requirements.

Prerequisites#

Verify that your system meets the minimum requirements.
Install Docker: Installation Guide.

Set up and First Use#

Clone the Repository and update .env file:
- Create and navigate to directory:
```
  git clone https://github.com/open-edge-platform/edge-ai-suites.git
  cd edge-ai-suites/metro-ai-suite/image-based-video-search
```
Note: The below step is required for deployment with certain pre-release images
- Update DOCKER_REGISTRY variable in .env file present at edge-ai-suites/metro-ai-suite/image-based-video-search/. The recommended setting to use pre-release images is: DOCKER_REGISTRY=docker.io/ Please remember to include / at the end.
Build from Source (Optional):
- Run the below command to build the images from source
```
  docker compose build
```
Note: You can skip this optional step since docker compose up -d that is run later in this document automatically pulls the required images.

Download the Models:

Download the models

Linux Instructions

cd src/dlstreamer-pipeline-server

# Define a generic directory for storing models
MODELS_PATH="$(pwd)/models"

# Create the directory if it doesn't exist
mkdir -p "$MODELS_PATH"

# Download and convert the ResNet-50 model
docker run --rm \
    --user=root \
    -e http_proxy -e https_proxy -e no_proxy \
    -v "$MODELS_PATH:/output" \
    openvino/ubuntu22_dev:2024.6.0 bash -c \
    "omz_downloader --name resnet-50-pytorch --output_dir models && \
    omz_converter --name resnet-50-pytorch --download_dir models --output_dir models && \
    cp -r ./models/public/resnet-50-pytorch /output && \
    chown -R $(id -u):$(id -g) /output"

# Download and quantize the yolov11s model
docker run --rm --user=root \
  -e http_proxy -e https_proxy -e no_proxy \
  -v "$MODELS_PATH:/output" \
  intel/dlstreamer:2025.1.2-ubuntu24 bash -c "$(cat <<EOF

mkdir -p src/dlstreamer-pipeline-server/models/public

export MODELS_PATH=/output
chmod +x /home/dlstreamer/dlstreamer/samples/download_public_models.sh
if [ ! -e "src/dlstreamer-pipeline-server/models/public/yolo11s/FP16/yolo11s.xml" ]; then
    for attempt in {1..3}; do
        echo "Attempt $attempt: Running model download and quantization..."
        if /home/dlstreamer/dlstreamer/samples/download_public_models.sh yolo11s coco128; then
            echo "Model download and quantization successful!"
            break
        else
            echo "Download attempt $attempt failed. Retrying..."
            sleep 2
        fi
    done
fi
EOF
)"

Windows Instructions

cd src/dlstreamer-pipeline-server

docker pull openvino/ubuntu22_dev:2024.6.0
$MODELS_PATH="$PWD\models"
# Download and convert the ResNet-50 model
docker run --rm `
    -e http_proxy `
    -e https_proxy `
    -e no_proxy `
    -v "${MODELS_PATH}:/output" `
    openvino/ubuntu22_dev:2024.6.0 bash -c "
    omz_downloader --name resnet-50-pytorch --output_dir models &&
    omz_converter --name resnet-50-pytorch --download_dir models --output_dir models &&
    cp -r ./models/public/resnet-50-pytorch /output
    "
# Download and quantize the yolov11s model
docker pull docker.io/intel/dlstreamer:2025.1.2-ubuntu24
docker run --rm --user=root `
  -e http_proxy `
  -e https_proxy `
  -e no_proxy `
  -v "${MODELS_PATH}:/output" `
  intel/dlstreamer:2025.1.2-ubuntu24 bash -c @'
  set -e

  mkdir -p src/dlstreamer-pipeline-server/models/public

  export MODELS_PATH=/output
  chmod +x /home/dlstreamer/dlstreamer/samples/download_public_models.sh

  if [ ! -e "src/dlstreamer-pipeline-server/models/public/yolo11s/FP16/yolo11s.xml" ]; then
    for attempt in 1 2 3; do

      if /home/dlstreamer/dlstreamer/samples/download_public_models.sh yolo11s coco128; then

        break
      else

        sleep 2
      fi
    done
  fi
  '@

Start the Application:
- Go back to the folder of compose.yml and run the application using Docker Compose:
```
cd ../..
docker compose up -d
```
Verify the Application:
- Check that the application is running:
```
docker compose ps
```
Access the Application:
- Open a browser and go to the following endpoints to access the application:
  - App UI: https://<ip-addr>/
  - Search UI: https://<ip-addr>/docs
  - MilvusDB UI: https://<ip-addr>/ibvs-milvus-ui
  - Stream UI: You can access https stream at https://<ip-addr>/stream and RTSP stream at rtsp://<ip-addr>:8554/stream.
Note: Replace <ip-addr> with your host IP address

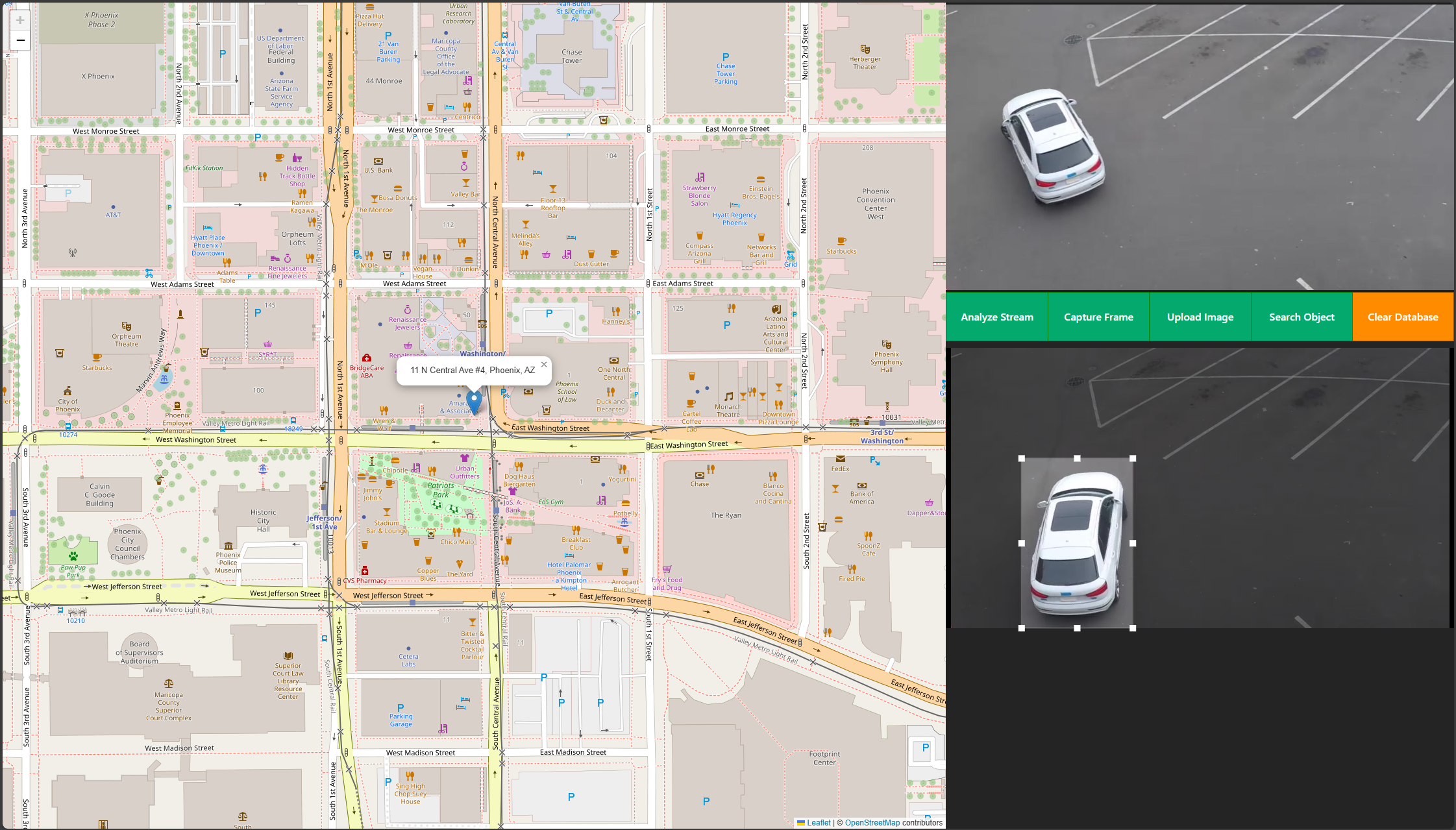

Run the Application:
- Analyze Stream: Use the predefined video and click Analyze Stream to start processing the video stream.
- Video Search: Click the Upload Image button to upload your own images for search or click the Capture Frame button to capture and adjust frames from the video stream. Click the Search Object button.
- Expected Results:
  - Matched search results, including metadata, timestamps, distance to show the confidence rate of the prediction, and frames that include detected objects (e.g., vehicles, pedestrians, bikes).
Stop the Application:
- Brind down the dockers along with volumes:
```
docker compose down -v
```

Make Changes#

Change Object Detection and Object Classification Models

To use your own models instead of the default models, follow these steps:

Open the config.cpu.json file present at the path edge-ai-suites/metro-ai-suite/image-based-video-search/src/dlstreamer-pipeline-server/configs/filter-pipeline/.

Change the paths in the pipeline section to point to your own models. Replace the paths for gvadetect and gvaclassify with the paths to your models:

{
    "config": {
        "logging": {
            "C_LOG_LEVEL": "INFO",
            "PY_LOG_LEVEL": "INFO"
        },
        "pipelines": [
            {
                "name": "filter-pipeline",
                "source": "gstreamer",
                "queue_maxsize": 50,
                "pipeline": "{auto_source} name=source ! decodebin ! video/x-raw ! videoconvert ! gvadetect model=/models/your-detection-model/FP32/your-detection-model.xml model-proc=/models/your-detection-model/your-detection-model.json inference-interval=3 threshold=0.4 model-instance-id=detect1 device=CPU ! queue ! gvainference model=/models/your-classification-model/FP32/your-classification-model.xml inference-region=1 name=classification model-instance-id=infer1 device=CPU ! queue ! videoconvertscale ! gvametaconvert add-tensor-data=true name=metaconvert ! jpegenc ! appsink name=destination",
                "auto_start": false,
                "mqtt_publisher": {
                    "publish_frame": true,
                    "topic": "edge_video_analytics_results"
                }
            },
            {
                "name": "search_image",
                "source": "image_ingestor",
                "queue_maxsize": 50,
                "pipeline": "appsrc name=source  ! decodebin ! videoconvert ! gvainference model=/models/your-classification-model/FP32/your-classification-model.xml model-instance-id=infer2 device=CPU ! gvametaconvert add-tensor-data=true ! appsink name=destination"
            }
        ]
    }
}

Change Input Video:

To use your own video instead of the default sample video, follow these steps:

Open the compose.yml file and locate the streaming-pipeline service.

Change the URL in the command section to point to your own video file. Replace https://github.com/intel-iot-devkit/sample-videos/raw/master/person-bicycle-car-detection.mp4 with the URL of your video file:

services:
  streaming-pipeline:
    ...
    command: >
      bash -c "
        wget -O file.mp4 <your-video-url> && \
        gst-launch-1.0 filesrc location=file.mp4 ! qtdemux name=mdemux ! h264parse ! video/x-h264,stream-format=byte-stream ! mpegtsmux name=mux ! filesink location=file.ts && \
        gst-launch-1.0 multifilesrc location=file.ts loop=true ! tsdemux ! h264parse ! rtspclientsink protocols=tcp location=rtsp://rtsp-server:8554/stream
      "
    ...

Adjust Feature Matching Confidence:
- Open the compose.yml file and locate the feature-matching service.
- Change the CONFIDENCE_THRESHOLD to adjust the confidence level for feature matching:
```
services:
  feature-matching:
    ...
    environment:
      ...
      CONFIDENCE_THRESHOLD: 0.7
    ...
```
- Effect: Increasing the CONFIDENCE_THRESHOLD will make the feature matching more stringent, reducing false positives but potentially missing some true positives. Decreasing it will make the matching more lenient, increasing the chances of detecting true positives but also increasing false positives.
Save Changes and Restart:
- Save the file and restart the application:
```
docker compose down
docker compose up -d
```
Verify Updates:
- Expected Results:
  - The application processes data from the updated input source.
  - Detection results align with the changed models
- Confirm changes through:
  - Logs:
    docker compose logs
