Get Started with Edge Orchestrator#

Set up the following system and hardware configuration before installing Edge Orchestrator:

System Requirements#

Domain#

A domain name is required for Edge Orchestrator installation.

  • For typical on-premises deployments, where both EMF and edge nodes are on a local network, an internal private domain is sufficient.

  • If EMF is hosted by a third party for multiple tenants, and access between the end customer, EMF, and edge nodes occurs over the internet, an external public domain is required.

The domain name must be unique and not used by any other service in the network. The domain name must be a fully qualified domain name (FQDN) and not an IP address.

Edge Orchestrator Network Topology#

Warning

Ensure that there are no incorrect configurations while setting up your DNS server for Edge Orchestrator. Incorrect configurations can lead to deployment failures. Specifically, the RKE2 (the kubernetes distribution used for EMF on-prem cluster) might start using the 8.8.8.8 server for DNS resolution, if no other DNS server is configured correctly.

  1. Avoid configuring /etc/resolv.conf and /run/systemd/resolve/resolv.conf to point exclusively to loopback or multicast nameservers. This can cause issues during deployment.

  2. Ensure that the service_cidr subnet specified in the installation guide does not overlap with any existing subnets in your infrastructure. For example, if the k8s service_cidr includes the IP 10.43.0.10, ensure this IP is not used as a DNS server in the OS or for any critical network communications in your environment.

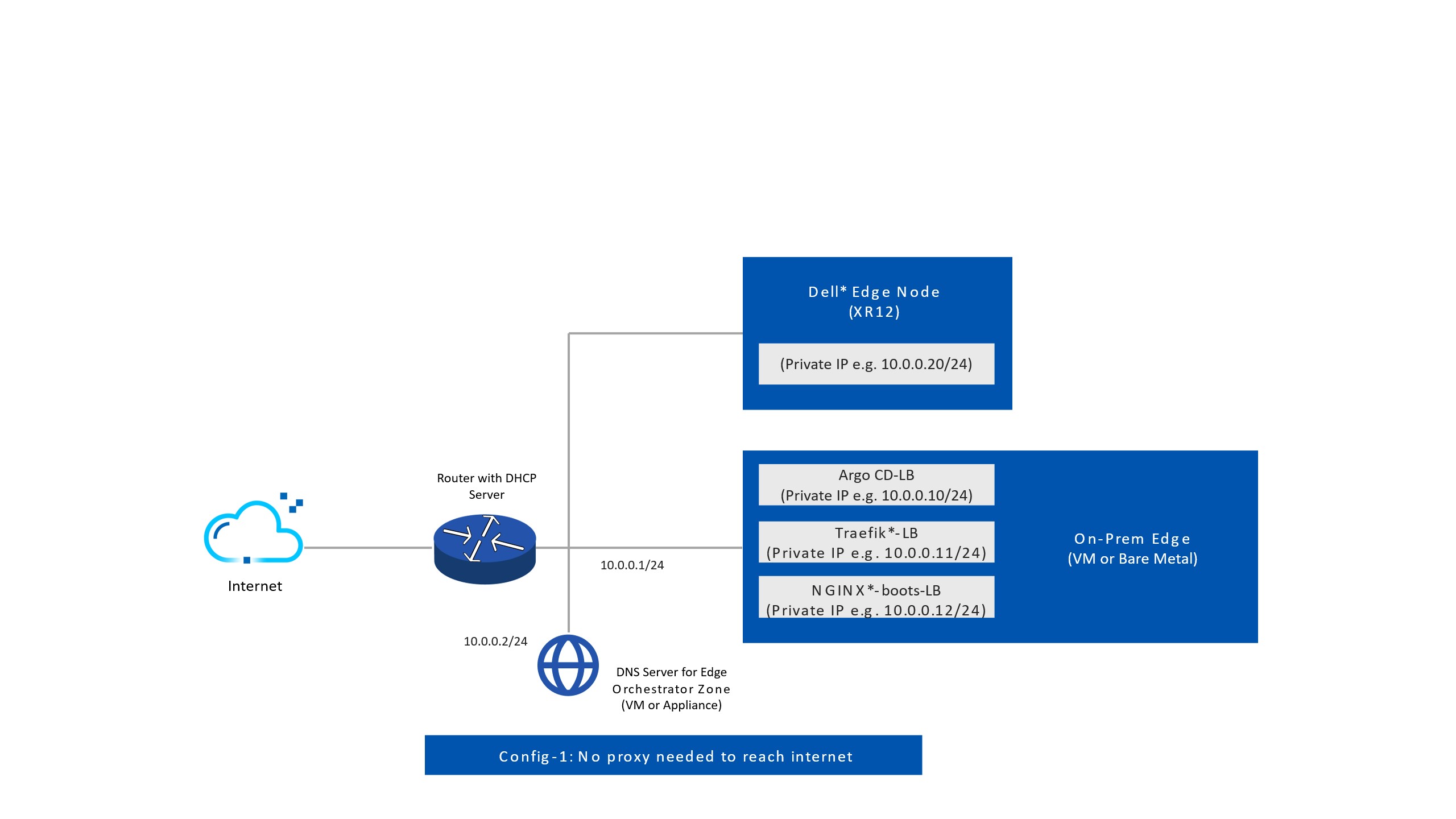

The network topology for Edge Orchestrator

Edge Orchestrator Network Topology with Corporate Proxy#

The network topology for Edge Orchestrator

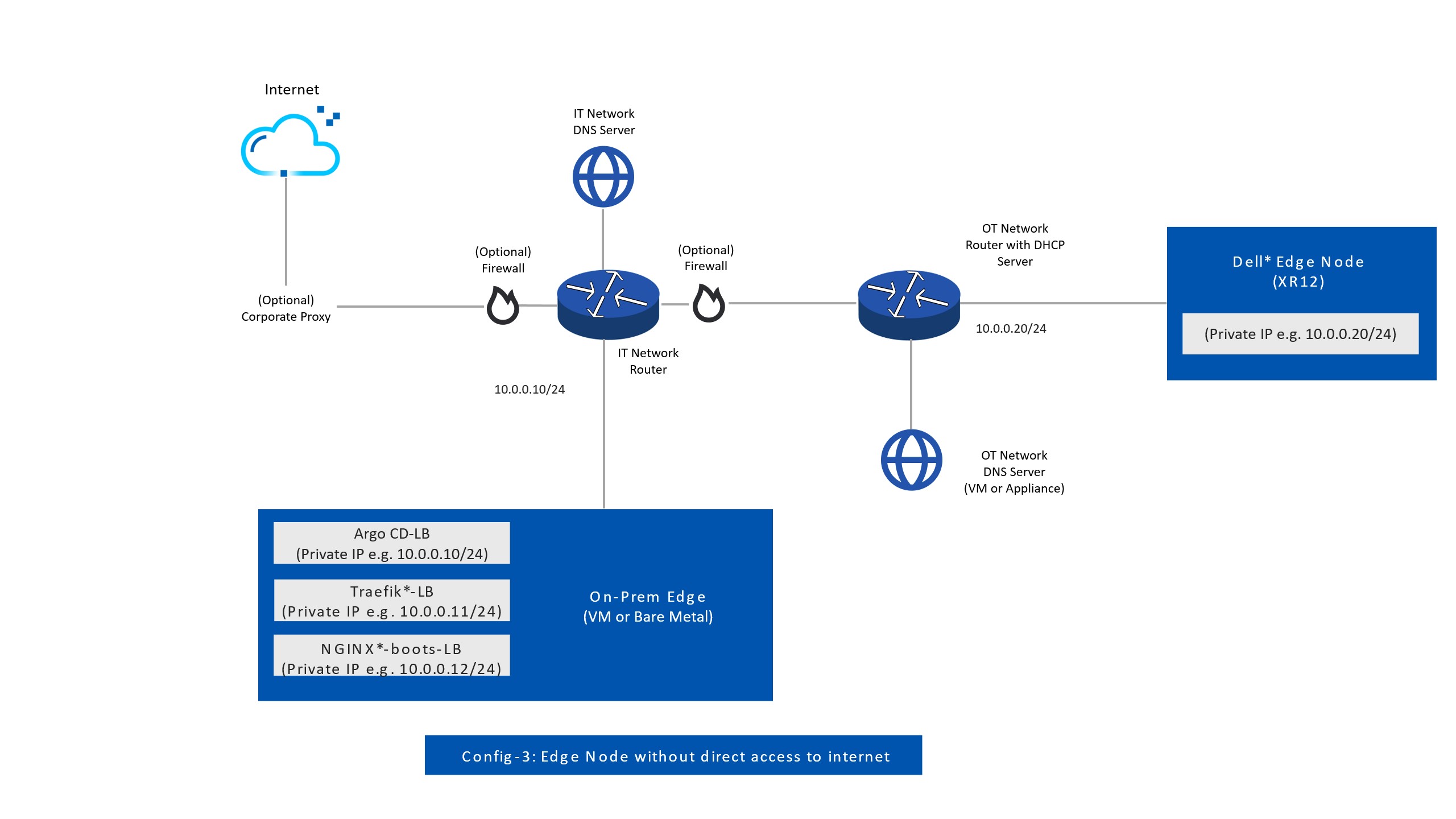

Edge Orchestrator for Edge Nodes without Direct Internet Access#

The network topology for Edge Orchestrator

Lenovo* Open Cloud Automation (LOC-A) Network Topology (Optional)#

When integrating the Lenovo* Open Cloud Automation (LOC-A) software, you can use the networking settings of your choice.

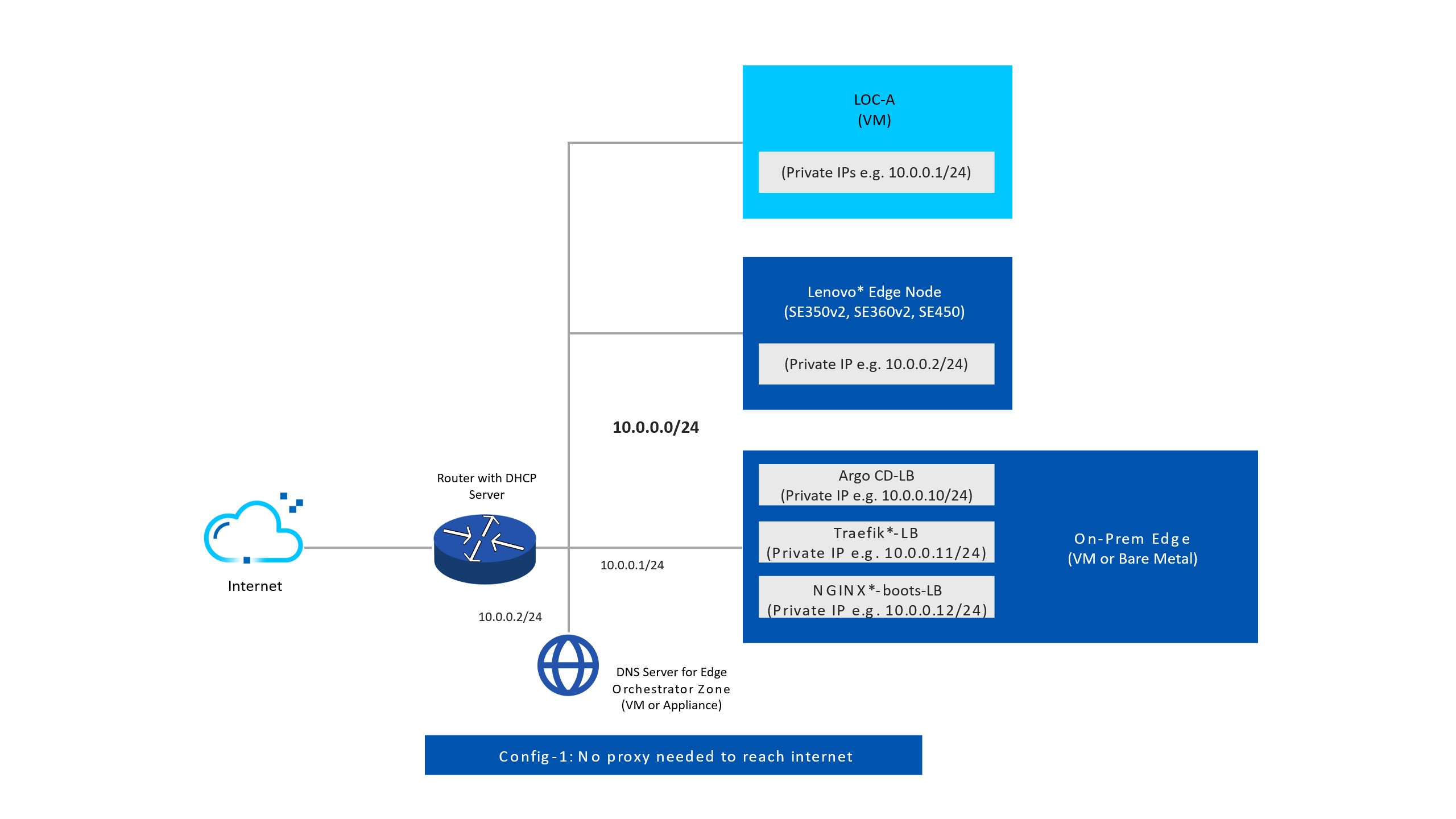

In general, Edge Orchestrator and LOC-A can share the same subnet, but this might not be desirable for the Baseboard Management Controller (BMC) of the edge devices (or not entirely possible). The following figure shows a simple network topology:

The network topology for Edge Orchestrator and LOC-A

In addition to upstream connectivity, Edge Orchestrator requires connectivity to LOC-A; while the edge node requires connectivity to Edge Orchestrator. LOC-A also has its own network environment requirements to ensure proper communication between the LOC-A Portal and the edge nodes. For details on LOC-A and networking settings, see the Lenovo ISG Support Plan - LOC-A (Lenovo Open Cloud Automation).

This Edge Orchestrator version is compatible with LOC-A version 3.2.

Note

Other configurations are possible, for example, having a separate network for BMC and OS management.

Firewall Configuration#

The following table lists the network endpoints for Edge Orchestrator and edge nodes, which you can use to configure firewall rules tailored to your network environment.

  • ArgoCD Admin UI at argo.{domain}. Intel recommends that you restrict the incoming traffic to a subset of known source IPs because this is an administrator interface.

  • BIOS Onboarding accesses tinkerbell-nginx.{domain}.

  • You can access all other services from edge nodes agents, UI, and APIs of Edge Orchestrator.

Network Endpoints for Edge Orchestrator and Edge Nodes#

Source

Destination

Protocol

Port number

Description

Edge Orchestrator UI and API

{domain}

TCP

443

Web UI

Edge Orchestrator UI and API

web-ui.{domain}

TCP

443

Web UI

Edge Orchestrator API

api.{domain}

TCP

443

Tenancy API

Edge Orchestrator UI and API

metadata.{domain}

TCP

443

Web UI

Edge Orchestrator UI and API

app-orch.{domain}

TCP

443

Application orchestration

Edge Orchestrator UI and API

app-service-proxy.{domain}

TCP

443

Application orchestration

Edge Orchestrator UI and API

ws-app-service-proxy.{domain}

TCP

443

Application orchestration

Edge Orchestrator UI and API

gitea.{domain}

TCP

443

Application orchestration

Edge Orchestrator UI and API

vnc.{domain}

TCP

443

Application orchestration

Edge Orchestrator UI and API

cluster-orch.{domain}

TCP

443

Cluster orchestration

Edge Orchestrator UI and API

iaas.{domain}

TCP

443

Edge infrastructure management

Edge Orchestrator UI and API

infra.{domain}

TCP

443

Edge infrastructure management

Edge Orchestrator UI and API

onboarding.{domain}

TCP

443

Edge infrastructure management

Edge Orchestrator UI and API

update.{domain}

TCP

443

Edge infrastructure management

Edge Orchestrator UI and API

keycloak.{domain}

TCP

443

Identity and Access Management

Edge Orchestrator UI and API

log-query.{domain}

TCP

443

Observability

Edge Orchestrator UI and API

observability-admin.{domain}

TCP

443

Observability

Edge Orchestrator UI and API

observability-ui.{domain}

TCP

443

Observability

Edge Orchestrator UI and API

telemetry.{domain}

TCP

443

Observability

Edge Orchestrator UI and API

rancher.{domain}

TCP

443

Rancher’s Fleet UI

Edge Orchestrator UI and API

registry.{domain}

TCP

443

Harbor* UI

Edge Orchestrator UI and API

vault.{domain}

TCP

443

Vault* UI

Edge node

cluster-orch-node.{domain}

TCP

443

Cluster orchestration

Edge node

infra-node.{domain}

TCP

443

Edge infrastructure management

Edge node

onboarding-node.{domain}

TCP

443

Edge infrastructure management

Edge node

release.{domain}

TCP

443

Release service token

Edge node

metrics-node.{domain}

TCP

443

Observability

Edge node

telemetry-node.{domain}

TCP

443

Observability

Edge node

logs-node.{domain}

TCP

443

Observability

Edge node

tinkerbell-server.{domain}

TCP

443

Onboarding

Edge node

update-node.{domain}

TCP

443

Edge infrastructure management

Edge node

tinkerbell-nginx.{domain}

TCP

443

BIOS onboarding

Edge Orchestrator admin

argo.{domain}

TCP

443

ArgoCD UI

LOC-A Firewall Configuration (Optional)#

When integrating the LOC-A and Edge Orchestrator, you will need an additional entry if you deploy LOC-A on the same network that is served by the same DNS.

Network Endpoints for Lenovo Open Cloud Automation (LOC-A)#

Source

Destination

Protocol

Port number

Description

LOC-A Web UI and API

loca.{domain}

TCP

443

Web UI and REST API

Squid Proxy Firewall Configuration (Optional)#

When deploying Edge Orchestrator with Squid proxy, you will need an additional firewall entry to allow the edge node to reach the Squid proxy. Intel recommends that only the edge node subnet is allowed to access the Squid proxy endpoint.

Network Endpoints for Squid Proxy.#

Source

Destination

Protocol

Port Number

Description

Edge node

{IP of Traefik endpoint in Edge Orchestrator}

TCP

8080

Squid proxy
