On-prem Open Ports

This document provides an overview of the network ports exposed in the on-premises deployment. It details each port’s purpose and key security considerations to help users secure their deployment.

On-prem Network Architecture Overview

Network Exposure in Single-Node Kubernetes Deployments

In a single-node Kubernetes cluster deployment, the combination of two architectural elements exposes internal Kubernetes ports to the enterprise network:

1. RKE2 single-node Kubernetes cluster: The control plane and worker plane components run on the same node, so internal Kubernetes services (like etcd) ports bind directly to the host machine’s IP address.

2. MetalLB Load Balancer: MetalLB announces service IPs to EMF-clients. If MetalLB is configured to use the same IP address as the host machine, all Kubernetes internal services (like etcd) ports, NodePorts, and service ports on host network become visible on the enterprise network.

The Virtual IP Solution

To mitigate unnecessary port exposure, it is recommended to use Virtual IP (VIP) to separate the host IP and the load balancer IP.

• Host Machine IP: Used for administrative access (SSH, host management, cluster management).

• Load Balancer Virtual IP: Used for application and load balancer endpoints.

This separation ensures that:

• Only intended service ports are exposed to the enterprise network.

• Administrative ports remain isolated from application traffic.

• The attack surface is minimized by limiting externally visible ports.

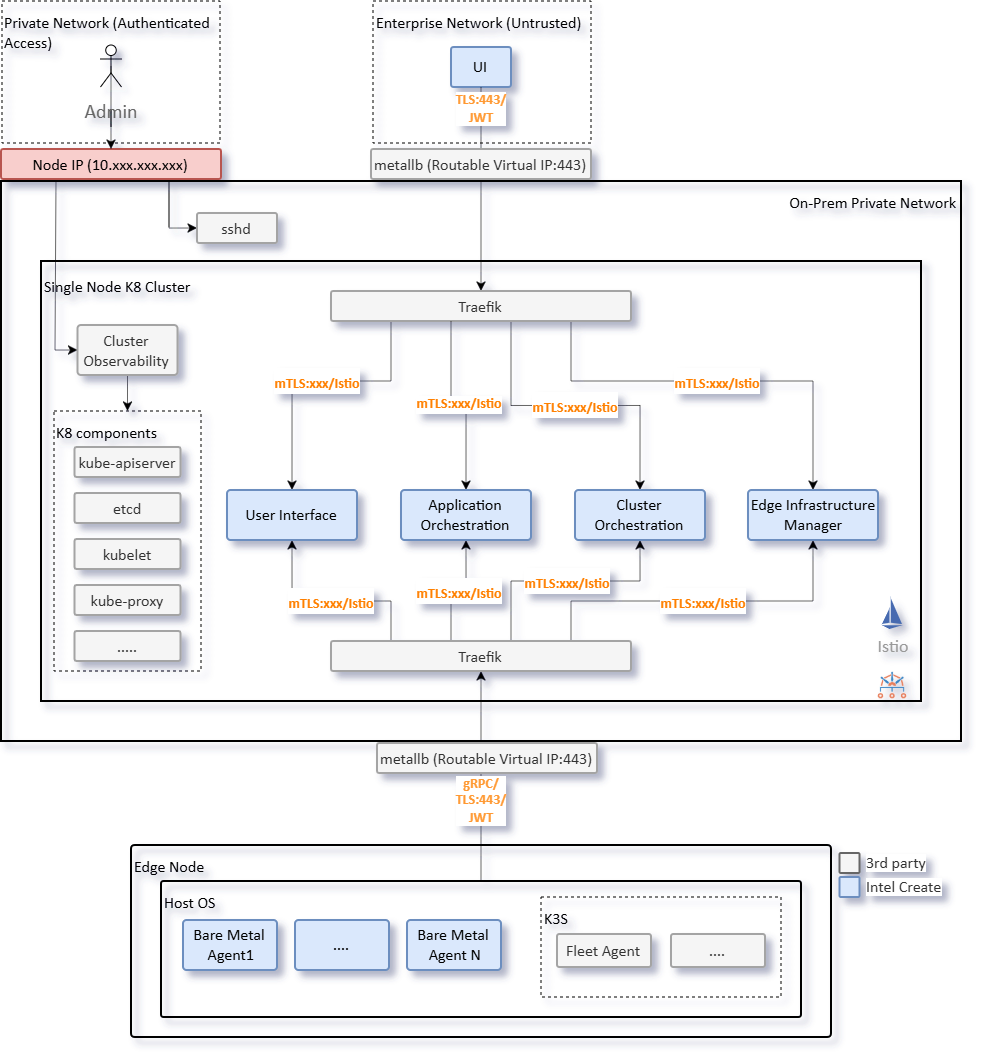

The diagram below illustrates the recommended network topology:

Figure 1: On-prem Deployment Overview - Network Segmentation

Implementation Approaches

The specific implementation depends on the infrastructure:

• Physical Networks: Multiple network interfaces (NICs) could be used with different subnets.

• Virtual Networks: VLAN tagging or software-defined networking.

Important: This document does not prescribe specific networking configurations, as implementation varies based on the network architecture of the deployment, security policies, and infrastructure capabilities.

Security Recommendations

The following security practices should be applied when configuring the on-premises deployment:

• Virtual IP Deployment: Implement Virtual IPs to separate administrative access (Host IP) from service exposure (Virtual IP) to minimize attack surface.

• Host Firewall Rules: Configure host-level firewall rules to restrict access to administrative ports (SSH, Kubernetes API, etcd) to authorized networks only.

• Observability Ports: All OpenTelemetry collector ports are unencrypted by default. Configure TLS encryption and authentication according to: https://opentelemetry.io/docs/security/.

• Certificate Management: RKE2 provides secure defaults with TLS encryption. Customize certificate management (self-signed, public CA, or enterprise CA) based on organizational requirements.

Open Ports Overview

Node Management Ports

Ports for host administration and management.

Port	Purpose	Network	Security Consideration
22	SSH access for host administration and management	Host IP	Enforce SSH key authentication and disable password login.

Kubernetes Infrastructure Ports

Core Kubernetes cluster ports for API access, service mesh, and networking.

Port	Purpose	Network	Security Consideration
6443	Kubernetes API server endpoint for cluster management	Host IP	TLS encryption and certificate-based authentication are enabled by default in RKE2. RBAC is enforced by default. Users can customize certificate management (self-signed, public CA, or enterprise CA). See https://docs.rke2.io/security/hardening_guide for more details.
10250	Kubelet API for node management and pod operations	Host IP	TLS encryption and certificate-based authentication are enabled by default in RKE2.
2379	etcd client API for cluster state storage	Host IP	TLS encryption and certificate-based authentication are enabled by default in RKE2.
2380	etcd peer communication for cluster consensus	Host IP	TLS encryption and certificate-based authentication are enabled by default in RKE2.
9345	RKE2 registration server for node join and agent bootstrap	Host IP	Token-based authentication is enabled by default in RKE2. Bootstrap tokens are used for initial node join.
5473	Calico Typha for network policy management	Host IP	TLS encryption and certificate-based authentication are enabled by default in Calico.

Application Service Ports

Ports for application services exposed via an ingress controller.

Port	Purpose	Network	Security Consideration
443	HTTPS ingress for application services (Traefik, ArgoCD, Nginx)	Virtual IP	TLS encryption enabled by EMF deployment. Traefik and ArgoCD use JWT authentication. Nginx is setup primarily as a CDN for Edge Node provisioning without authentication.
80	HTTP ingress (redirects to HTTPS)	Virtual IP	Automatic redirect to port 443 configured by default via Traefik ingress controller.

Load Balancer Ports

MetalLB and ingress controller ports for service exposure.

Port	Purpose	Network	Security Consideration
30443	Traefik NodePort for HTTPS traffic	Host IP	TLS encryption enabled by EMF deployment.
7472	MetalLB Prometheus metrics endpoint	Host IP	User to enable TLS encryption.
7946	MetalLB memberlist for speaker coordination	Host IP	User to enable encryption for gossip protocol.

Observability Ports

OpenTelemetry collector ports for metrics, traces, and logs.

Warning

Observability Port Security: All OpenTelemetry collector ports are unencrypted by default. See: https://opentelemetry.io/docs/security/

Port	Purpose	Network	Security Consideration
4317	OpenTelemetry gRPC receiver for traces, metrics, and logs	Host IP	User to enable TLS encryption and authentication.
4318	OpenTelemetry HTTP receiver for traces, metrics, and logs.	Host IP	User to enable TLS encryption and authentication.
9411	Zipkin trace receiver (OpenTelemetry compatible)	Host IP	User to enable TLS encryption and authentication.
14250	Jaeger gRPC receiver for distributed tracing	Host IP	User to enable TLS encryption and authentication.
14268	Jaeger HTTP receiver for distributed tracing	Host IP	User to enable TLS encryption and authentication.
