Deploy the Agentic Workflow for the Multimodal Weld Defect Detection Sample Application#

This section shows how to deploy the multimodal sample application with the agentic workflow enabled. The multimodal application produces fusion results, and when new fusion results arrive, the meta-agent in the agentic stack is triggered. The meta-agent, powered by an LLM served through OpenVINO™ model server, produces structured policy decisions, root-cause analysis, and maintenance tickets.

Architecture Overview#

The agentic workflow is implemented as a LangGraph framework-based, sequential multi-agent pipeline. The apm-agent, which is the meta-agent, acts as the orchestrator that triggers the workflow when new fusion results arrive and coordinates the execution of specialized agents, each responsible for a distinct stage of reasoning. Each agent consumes the shared execution context together with outputs from previous stages and produces traceable intermediate artifacts and a final maintenance recommendation.

Vision (DL Streamer Pipeline Server)──┐
                                      ├─► Fusion Analytics ──► MQTT (Trigger batch request)
        Time-Series Analytics       ──┘                           │
                                                                  ▼
                                                          Agent service FIFO queue
                                                                  |
                                                                  | bounded GET /detections
                                                                  | bounded GET /detections/summary
                                                                  v
                                                      Policy -> Analysis -> Ticketing
                                                                  |
                                                                  v
                                                         In-memory run results
                                                                  │
                                                            UI (Dashboard)

Agent

Input

Output

Policy Agent

Fusion results (fusion_result) filtered according to the configured analysis thresholds. Uses fused_decision, fusion_confidence, modality confidence scores, anomaly indicators, and timestamp alignment (vision_rtsp_ts_diff_ms).

Structured policy violation report containing the detected defect class, fusion and modality confidence scores, alignment quality, and preliminary priority. Policy decisions are based on fusion_mode and configured severity rules.

Analysis Agent

Policy output as the primary anchor, supplemented by fusion, vision, and time-series classifications for the detection window when available.

Policy-anchored analysis summarizing the policy finding and corroborating it with modality classification data and confidence evidence; falls back to event-level or summary-level analysis when no policy output is available.

Ticketing Agent

Policy evaluation and root-cause analysis results.

Structured maintenance ticket containing the priority, title, description, affected component (if available), recommended action, estimated resolution time, and defect class tags. Ticket priority and escalation follow the configured ticketing rules.

Note: The [SYSTEM] prompt provides shared domain knowledge, including the canonical defect taxonomy, label normalization rules, and available fusion data. It establishes the common reasoning context for all agents and is not a separate execution stage.

System Requirements#

Component

Minimum Requirement

Operating System

Ubuntu OS version 24.04 LTS or later

Hardware

Intel® Core™ Ultra Series 3 processor or newer

Prerequisites#

  1. Ensure the .env file is configured with valid values for:

    • HOST_IP

    • INFLUXDB_USERNAME, INFLUXDB_PASSWORD

    • VISUALIZER_GRAFANA_USER, VISUALIZER_GRAFANA_PASSWORD

    • MTX_WEBRTCICESERVERS2_0_USERNAME, MTX_WEBRTCICESERVERS2_0_PASSWORD

    • S3_STORAGE_USERNAME, S3_STORAGE_PASSWORD

  2. Download the Vision-Language Model (VLM) model by following the guide.

Deploy the Agentic Workflow#

Run the full agentic stack (downloads the LLM model first, then starts all containers):

Note:

  • Model download time varies depending on network speed and hardware.

  • The service is polled every 5 seconds for up to 50 minutes.

  • Supported devices for Agentic Workflow are : CPU, GPU

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make up_agentic

For a fresh build before deployment:

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make build
make up_agentic

Running the Agentic Workflow on GPU#

By default, the agentic workflow is configured to run on CPU.

To trigger the agentic workflow on GPU, update LLM_DEVICE in .env to GPU:

vi .env
# change LLM_DEVICE to GPU
LLM_DEVICE=GPU
# Deploy Agentic Workflow
make up_agentic

Configure the Agent#

Use-Case Configuration#

The agent behavior is controlled by configs/agentic/agents.yaml:

Field

Default

Description

analysis.detection_schema

fusion_result

Instructs the agent to read fusion_result records rather than raw bounding-box detections

analysis.min_confidence

0.5

Minimum fusion_confidence to include a record in the analysis window

analysis.max_detections_per_run

1000

Maximum number of fusion_result records fetched per run

policy.alert_threshold

0.75

fusion_confidence threshold to raise a policy violation

policy.fusion_mode

OR

AND requires both modalities to be anomalous; OR triggers on either

policy.critical_classes

Burnthrough, Lack of Fusion, and Crater Cracks

Classes that produce CRITICAL severity regardless of threshold

ticketing.backend

jira

Ticket destination: jira, servicenow, or none

ticketing.auto_create

true

Submit tickets automatically after each completed run

Defect Class Taxonomy#

The policy and ticketing agents operate on the following class hierarchy:

Priority

Classes

CRITICAL

Burnthrough, Lack of Fusion, and Crater Cracks

HIGH

Excessive Penetration

MEDIUM

Porosity, Porosity with Excessive Penetration, Undercut, and Warping

LOW

Overlap, Spatter, and Excessive Convexity

Non-actionable

Good Weld, No Weld, and No Label

Prompts#

Agent reasoning prompts are in configs/agentic/prompts/weld-quality-monitoring.txt. Each [TAG] block maps directly to an agent stage:

Section

Controls

[SYSTEM]

Canonical class labels, label normalization rules (No_Weld → No Weld, Good_Weld → Good Weld, and Porosity_w_Excessive_Penetration → Porosity with Excessive Penetration), and available fusion fields

[POLICY]

How violations are identified: fusion_confidence as the primary signal, priority determined by defect class, confidence used only to verify the configured threshold is met, and fused_decision reported exactly when present

[ANALYSIS]

Policy-anchored analysis treating the policy decision as the source of truth; corroborates with fusion and modality data when available; falls back to event-level or summary-level analysis when no policy output exists

[TICKETING]

Escalation rules tied to defect class and fusion_confidence threshold: CRITICAL ≥ 0.80, HIGH ≥ 0.75, MEDIUM ≥ 0.65, LOW ≥ 0.55; ticket generated only when fused_decision == 1

Fallback Policy#

configs/agentic/policy_fallback.json defines per-class thresholds and actions used by apm-agent when LLM_MODE=fallback. Available actions:

Action

Description

HALT_LINE

Stop the production line immediately

REDUCE_HEAT_INPUT

Reduce welding current or power

SCHEDULE_INSPECTION

Flag for next-shift inspection

ADJUST_PARAMETERS

Adjust process parameters

CHECK_FIXTURING

Check part fixturing and alignment

MONITOR

Continue monitoring without action

CONTINUE

No action required

Verify the Deployment#

  1. Check overall stack health:

    cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make status

  2. Check the output in Grafana dashboard:

    • Use the link https://localhost:3000 to open Grafana dashboard in a browser, preferably the Chrome browser. For Helm deployment, use the link https://localhost:30001.

    • Log in to Grafana dashboard using the VISUALIZER_GRAFANA_USER and VISUALIZER_GRAFANA_PASSWORD values from the .env file:

      Grafana dashboard login

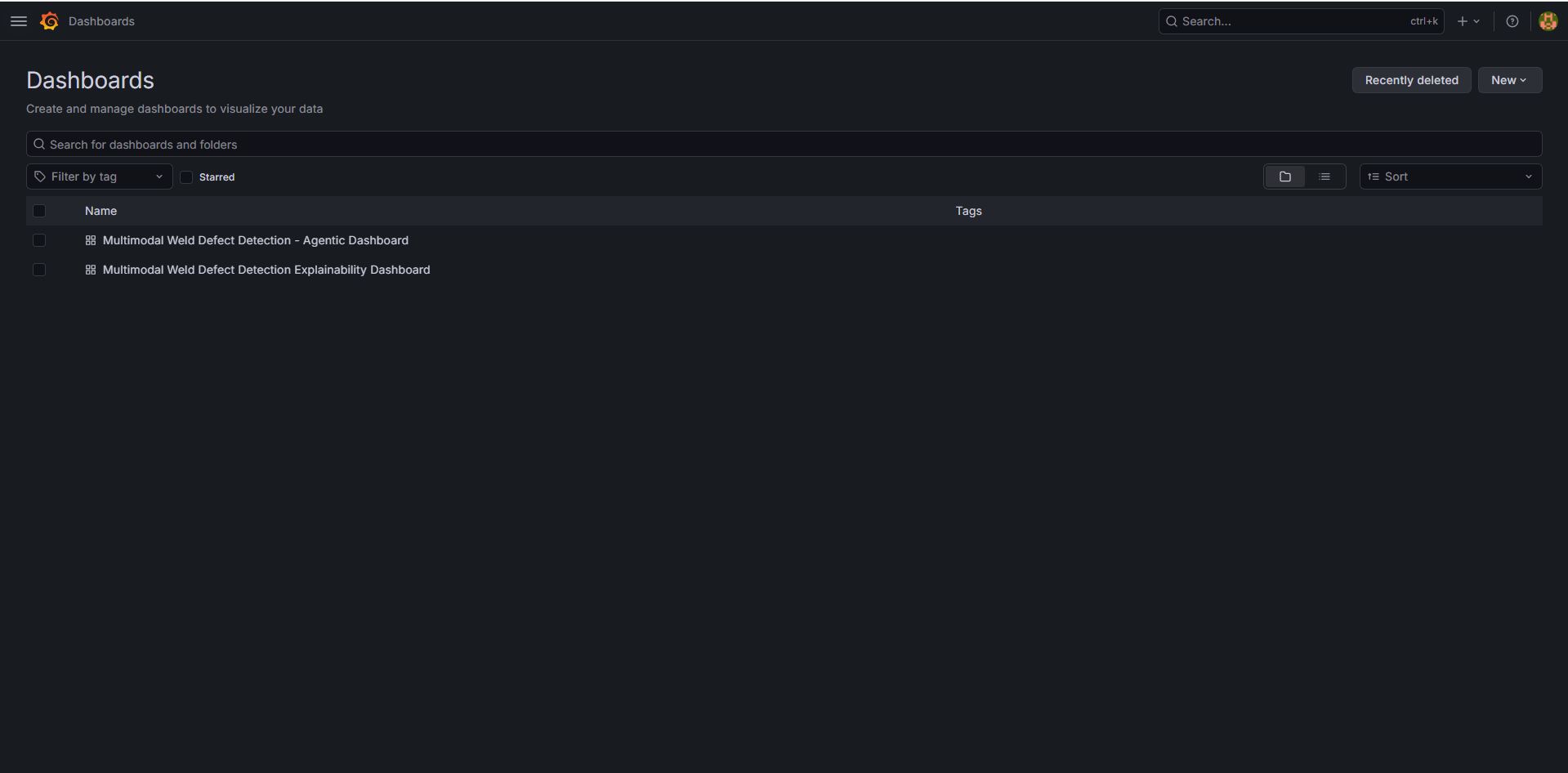

    • After logging in, click Dashboards and then select Multimodal Weld Defect Detection - Agentic Dashboard: Menu view

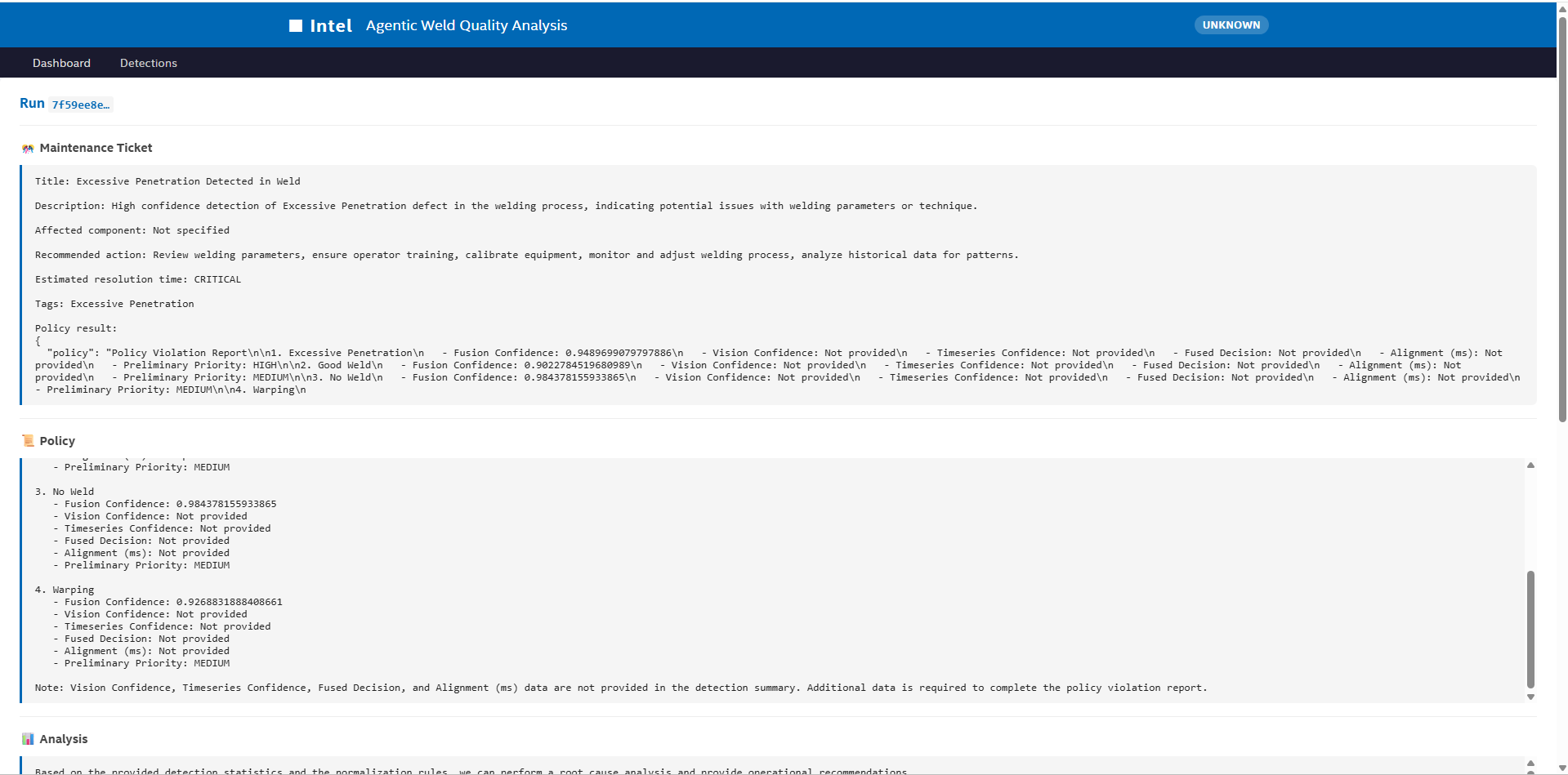

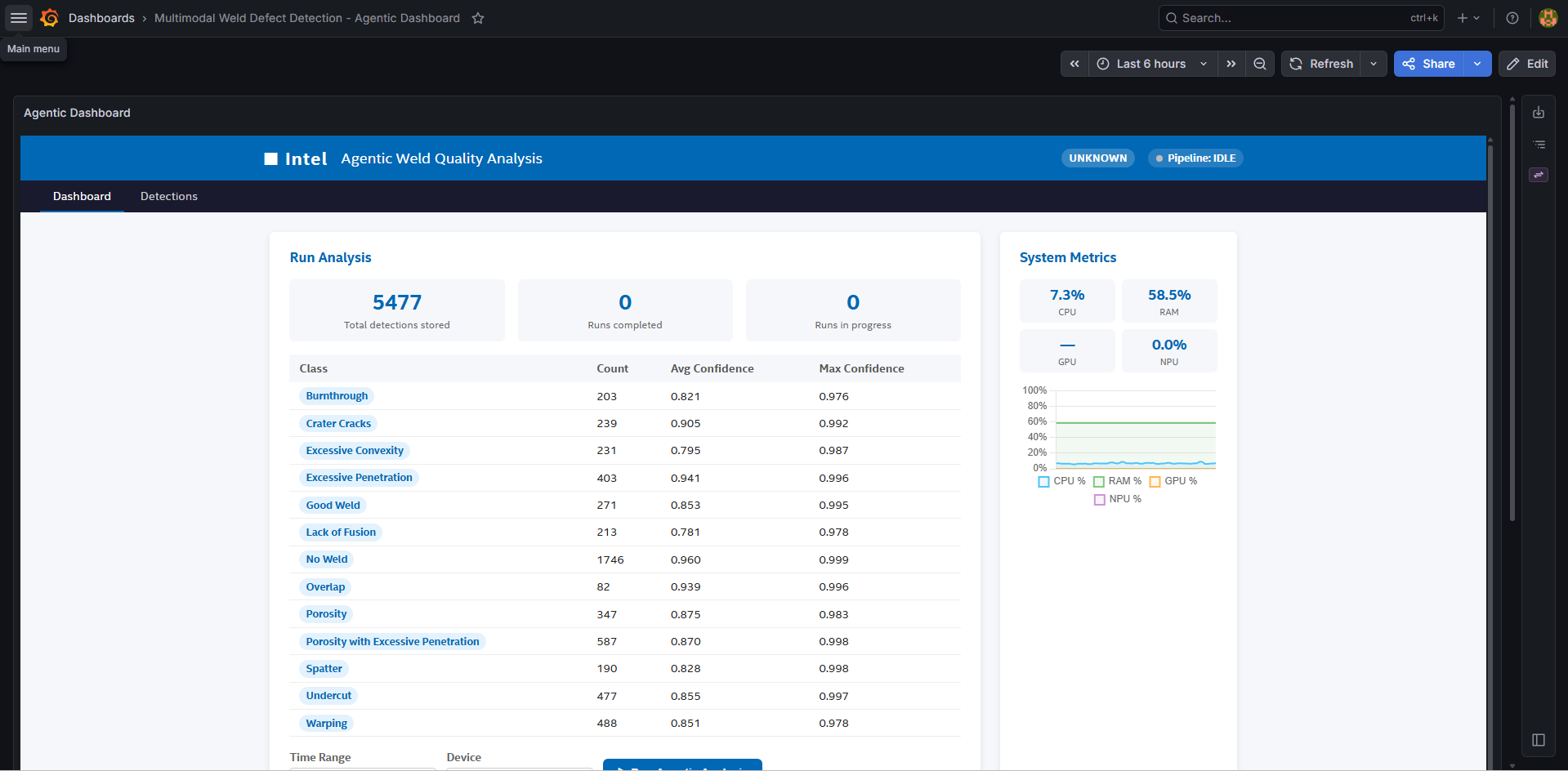

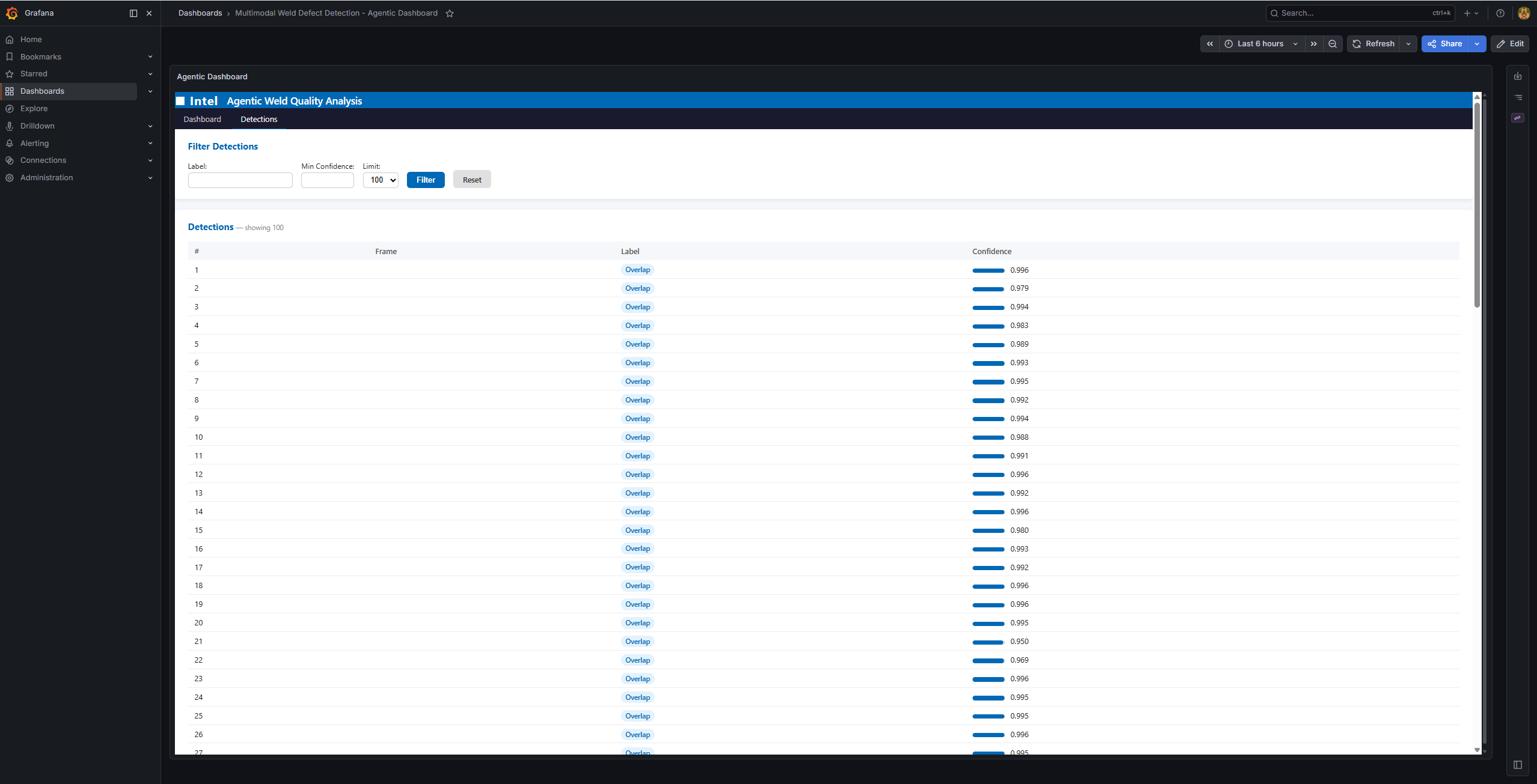

    • The following pages appear: Multimodal Weld Defect Detection Agentic Dashboard Agentic Results for weld data

Stop the Stack#

cd edge-ai-suites/manufacturing-ai-suite/industrial-edge-insights-multimodal
make down
