How It Works

The Live Video Alert Agent is a multi-layered agentic application that ingests RTSP video streams, applies VLM-based scene understanding, and dispatches configurable actions through an agentic tool-calling pipeline.

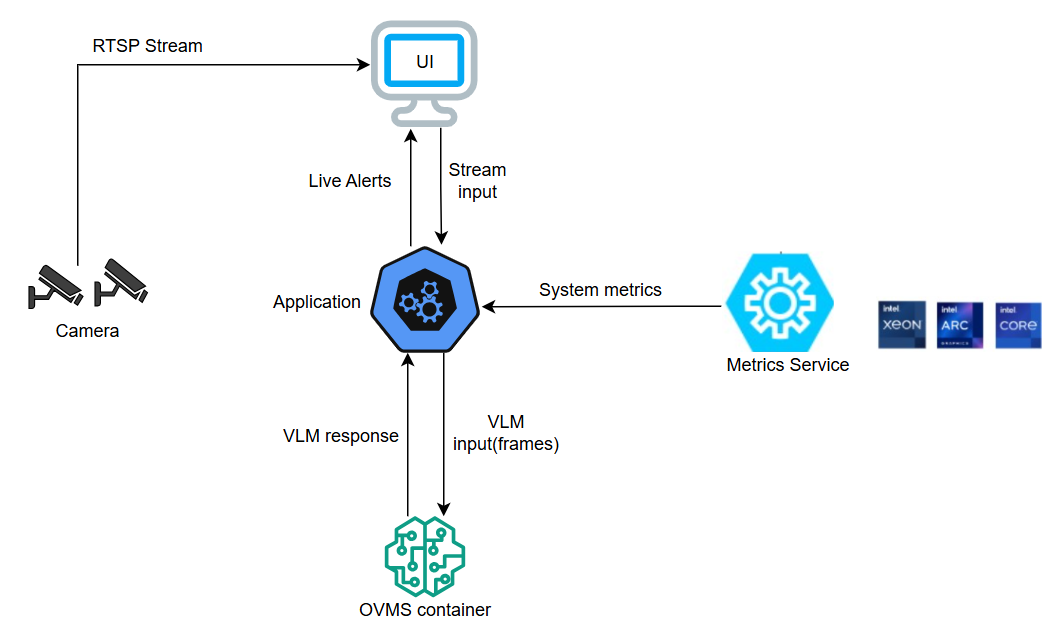

Architecture Overview

Data Flow

RTSP Sources (N cameras)
     │
     ▼
LiveStreamManager × N          grab()/retrieve() throttled decode
     │                         exponential-backoff reconnection
     │  frame (latest)
     ▼
AgentManager                   one asyncio.Task per stream (concurrent)
  ├─ VlmClient ──────────────► OVMS / OpenAI-compatible VLM
  │   └─ retry + backoff       Phi-3.5-Vision | InternVL2-2B ...
  │
  ├─ AlertStateManager         per-stream × per-alert runtime state
  │   ├─ cooldown gate         suppresses repeat firings
  │   ├─ consecutive counter   detects persistent conditions
  │   └─ escalation trigger    promotes alert tier after N consecutives
  │
  ├─ AlertActionAgent          decides WHICH tools to call
  │   ├─ ADK mode              Google ADK LlmAgent + FunctionTool (default) with OVMS-hosted text model endpoint
  │   └─ Rule-based mode       direct tool execution — no LLM needed
  │
  ├─ MCP Client (optional)     Model Context Protocol integration
  │   └─ External MCP servers  discover and invoke remote tools
  │
  └─ Action Tools (async)
      ├─ log_alert              structured logging
      ├─ capture_snapshot       JPEG frame to disk / named volume
      ├─ trigger_webhook        HMAC-signed HTTP POST
      └─ publish_mqtt           paho-mqtt 2.x MQTTv5 publish
     │
     ▼
EventManager (SSE pub/sub)     alerts fan-out to all connected browsers
     │
     ▼
Dashboard UI                   real-time stream tiles, alert feed

Key Components

LiveStreamManager

Each registered camera has its own LiveStreamManager running in a daemon thread.

• Uses cv2.VideoCapture.grab() followed by retrieve() to skip deep-decode on unused frames, reducing CPU usage proportionally to the gap between capture FPS and analysis FPS.

• Frame interval is controlled by CAPTURE_FPS (default: auto-derived from ANALYSIS_INTERVAL).

• Reconnects on drop-out with exponential back-off (2 s → 30 s).

• Exposes a get_health() method returning connection status, actual FPS, resolution, and buffer fill level.

AgentManager

The central orchestrator. Instead of a single serial loop across all cameras, each stream gets an independent asyncio.Task:

add_stream("cam1", ...) → _launch_stream_task("cam1")
add_stream("cam2", ...) → _launch_stream_task("cam2")

cam1-task: _stream_analysis_loop() running every ANALYSIS_INTERVAL seconds
cam2-task: _stream_analysis_loop() running every ANALYSIS_INTERVAL seconds

Failed or cancelled tasks are automatically restarted via an add_done_callback.

VlmClient

Thin async wrapper around openai.AsyncOpenAI, targeting OVMS (OpenVINO Model Server) via its OpenAI-compatible REST API.

• Sends a system role message (VLM system instruction) plus a user message containing the base64-encoded frame and the structured alert prompt.

• Retries failed calls up to VLM_MAX_RETRIES times with exponential back-off.

• Alert prompts are serialised with json.dumps — not f-strings — to prevent prompt-injection from user-supplied alert names or text.

AlertStateManager

Maintains per-stream × per-alert runtime state without any database dependency:

State field	Purpose
last_action_time	Timestamp of last tool execution
consecutive_yes	Counts unbroken YES detections; triggers escalation
last_answer	Detects state transitions (NO→YES, YES→NO)

process() returns (should_act, is_escalation, is_transition) so the manager can decide whether to invoke tools and which tier of tools to use.

AlertActionAgent

Decides which tools to invoke for a fired alert. Operates in one of three modes, selected automatically at startup:

Mode 1 — Google ADK (USE_ADK=true, default)

Uses Google’s Agent Development Kit with a LlmAgent that receives structured alert context and calls FunctionTool-wrapped async tool functions. Best for dynamic, LLM-reasoned escalation logic that can be adjusted without code changes. The LLM is served locally via OVMS (ovms-llm service) using an OpenAI-compatible API endpoint.

Mode 2 — Rule-based (USE_ADK=false)

Directly executes the tool list from AlertConfig.tools in order. No external LLM required — works fully offline and air-gapped. Escalation tools from AlertConfig.escalation.additional_tools are appended when the consecutive threshold is reached.

Action Tools

All four tools are async functions registered in _TOOL_MAP:

Tool	Trigger condition	Configuration
log_alert	Always	Built-in, always active
capture_snapshot	Alert fires	SNAPSHOT_DIR writable
trigger_webhook	Alert fires	WEBHOOK_URL set
publish_mqtt	Alert fires	MQTT_BROKER set

Tools are configured per-alert in AlertConfig.tools and are silently skipped if their required env var is not set.

Alert Configuration Schema

Each alert is described by an AlertConfig Pydantic model:

{
  "name": "Fire Detection",
  "prompt": "Is there fire or smoke visible?",
  "enabled": true,
  "tools": ["log_alert", "capture_snapshot"],
  "tool_arguments": {
    "trigger_webhook": {"stream_id": "{{stream_id}}", "severity": "{{severity}}"}
  },
  "escalation": {
    "threshold_consecutive": 3,
    "additional_tools": ["trigger_webhook", "publish_mqtt"]
  }
}

Field	Values	Description
tools	list of tool names	Tools invoked when alert fires
tool_arguments	object	Per-tool keyword argument overrides; supports {{variable}} placeholders rendered from alert context (stream_id, alert_name, answer, reason, consecutive_count, escalated, snapshot_path)
escalation.threshold_consecutive	integer ≥ 2	Consecutive YES count before escalation
escalation.additional_tools	list of tool names	Extra tools added on escalation

Event Types

The SSE stream (GET /events) emits four event types:

Event	When
init	On SSE connect — current streams + latest results
analysis	Each VLM analysis cycle completes
alert_action	Alert fired and tools were invoked
keepalive	Every 15 s to prevent proxy timeouts

MCP Integration

The agent supports connecting to external Model Context Protocol (MCP) servers, allowing alerts to invoke tools hosted on remote services (e.g., Prometheus for metrics queries, custom REST APIs, etc.).

MCPClient

The MCPClient module manages lifecycle for one or more MCP servers configured in resources/mcp_servers.json. Supported transports:

Transport	When to use
http	Remote HTTP MCP server (MCP Streamable HTTP protocol)
sse	Remote SSE-based MCP server
stdio	Local subprocess MCP server

At startup, if MCP_ENABLED=true, the agent:

1. Reads resources/mcp_servers.json

2. Connects to each enabled server and performs the MCP initialize handshake

3. Calls tools/list to discover available tools

4. Registers discovered tools with the AlertActionAgent under prefixed names (mcp_{server_name}_{tool_name})

5. If ADK mode is active, reinitialises the agent so the new tools appear in the LLM’s tool list

MCP tools can be referenced in AlertConfig.tools and AlertConfig.escalation.additional_tools by their prefixed names, and are invocable via the /mcp/tools/{tool_name}/invoke API endpoint.
