VLM Recall Search#

VLM Recall Search lets an investigator find historical footage with a plain‑English query such as:

“Show me the person in a blue shirt between 2:00–3:00 PM at the entrance camera.”

It is hybrid recall over recorded video: appearance is matched by multimodal embeddings, time is matched by a capture‑time filter, and location is matched by a per‑camera tag. Results are short video clips you can play back directly in the dashboard.

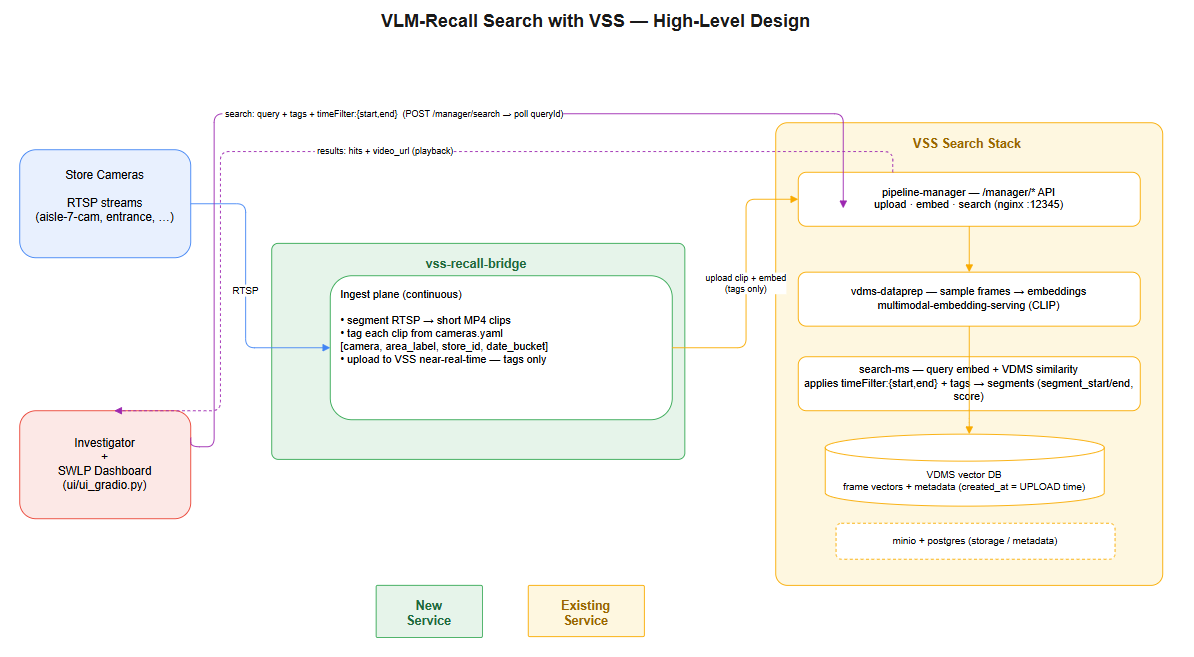

Architecture#

How It Works#

Recall is powered by the Video Search & Summarization (VSS) stack plus a thin recall bridge. The bridge segments each camera into short MP4 clips, tags them, and uploads them to VSS — which owns the embedding index, the time filter, and clip storage. Nothing is duplicated on the SWLP side: every field an investigator sees comes straight from VSS.

        flowchart LR
  cam[Camera<br/>RTSP / file] --> bridge[Recall Bridge]
  bridge -->|tag + upload clips| dataprep[VDMS Dataprep]
  dataprep --> embed[Multimodal<br/>Embedding Serving]
  embed --> vdb[(VDMS Vector DB)]
  ui[Dashboard /recall] -->|query| bridge
  bridge -->|search| search[Video Search]
  search --> vdb
  bridge -->|clip bytes| ui

Query part	Example	Matched by
Appearance	`person in a blue shirt`	VSS multimodal frame embeddings (VDMS)
Time	`2:00–3:00 PM`	VSS absolute `timeFilter` on capture time
Location	`entrance` / `cam2`	Per‑camera upload tags

Each search hit returns video_id, tags, created_at, segment_start/end, and a relevance score. The bridge fetches the clip bytes by video_id and the UI streams them with HTTP range support, so you can seek straight to the matched moment.

Services#

The recall feature adds these containers to the stack:

Service	Role
multimodal-embedding-serving	Encodes frames and text into the same vector space (`EMBEDDING_MODEL_NAME`, default `CLIP/clip-vit-b-32`).
vdms-dataprep	Ingests/segments clips and writes embeddings.
vdms-vector-db	Stores frame embeddings for similarity search.
video-search	Runs the similarity + tag + time query.
pipeline-manager	Orchestrates ingest/search; uses the shared `pgserver` database `video_summary_db`.
vss-recall-bridge	Tags cameras, uploads clips, proxies search and clip playback to the UI.

Enable and Run#

Recall is on by default. Start the full stack from the application directory:

make up

This builds the bridge and UI, brings up the search services, and links the bridge to the LP network. When it finishes, open the Investigator UI:

http://localhost:7860/recall

To run the search stack on its own (separate from the LP UI):

make run-search   # Investigator UI on http://localhost:7861/recall

The Makefile already sets sensible defaults, so nothing is mandatory. To override the defaults, either pass them on the make command line or export them before running make up:

export SEARCH_REGISTRY=intel/                       # search image registry
export TAG=latest                                   # image tag (shared with LP images)
export EMBEDDING_MODEL_NAME=CLIP/clip-vit-b-32       # multimodal embedding model
make up

Variable	Default	Purpose
`SEARCH_REGISTRY`	`intel/`	Registry for the VSS search images.
`TAG`	`latest`	Image tag, shared by the LP and VSS search images.
`EMBEDDING_MODEL_NAME`	`CLIP/clip-vit-b-32`	Multimodal model used for text+frame embeddings.
`ENABLE_SEARCH`	`true`	Set `false` to skip the recall stack entirely.

Postgres/MinIO credentials are optional (they default in the compose files and the shared pgserver is used), so they don’t need exporting. Equivalent one-liner: make up EMBEDDING_MODEL_NAME=<model> TAG=<tag>.

Configure Cameras#

Cameras are tagged once in vss-recall-bridge/configs/cameras.yaml. Each enabled camera is segmented and uploaded with its tags so location filtering works:

cameras:
  - id: cam2
    source_file: /media/lp-camera1.mp4   # or an RTSP url
    enabled: true
    area_label: entrance
    store_id: store-001
    extra_tags: ["front-of-store"]

A clip from this camera is tagged cam2, entrance, store-001, front-of-store, so a query filtered to any of those tags returns it.

Search From the UI#

Open /recall on the dashboard.
Type a description (e.g. person in a blue shirt).
Optionally set the From / To window — pick the times in the date pickers; the UI sends them as UTC, which is what VSS expects.
Matching clips load automatically and seek to the matched moment for playback.

Troubleshooting#

No results with a time filter: use the UI date pickers (they send UTC). Direct API calls with naive local timestamps are treated as UTC by VSS.
No results for a camera: check the camera is enabled: true in cameras.yaml and re‑run; only enabled cameras are ingested.
/recall shows 404: rebuild the UI image (make up rebuilds it).
pipeline-manager keeps restarting (database "video_summary_db" does not exist): start with make up, which creates the database on pgserver automatically.
